For "Parking brake" version: In order to prevent the machine from rolling away, use the
parking brake in addition to the wheel chocks(1), refer to page73.
ü The machine is shut down and safeguarded, refer to page25.
 To dismount the wheel chocks (1) from the machine, press the supports (2) down, pull the
wheel chocks (1) upwards, and remove them.
RP000-088
 Park the machine on level and firm ground.

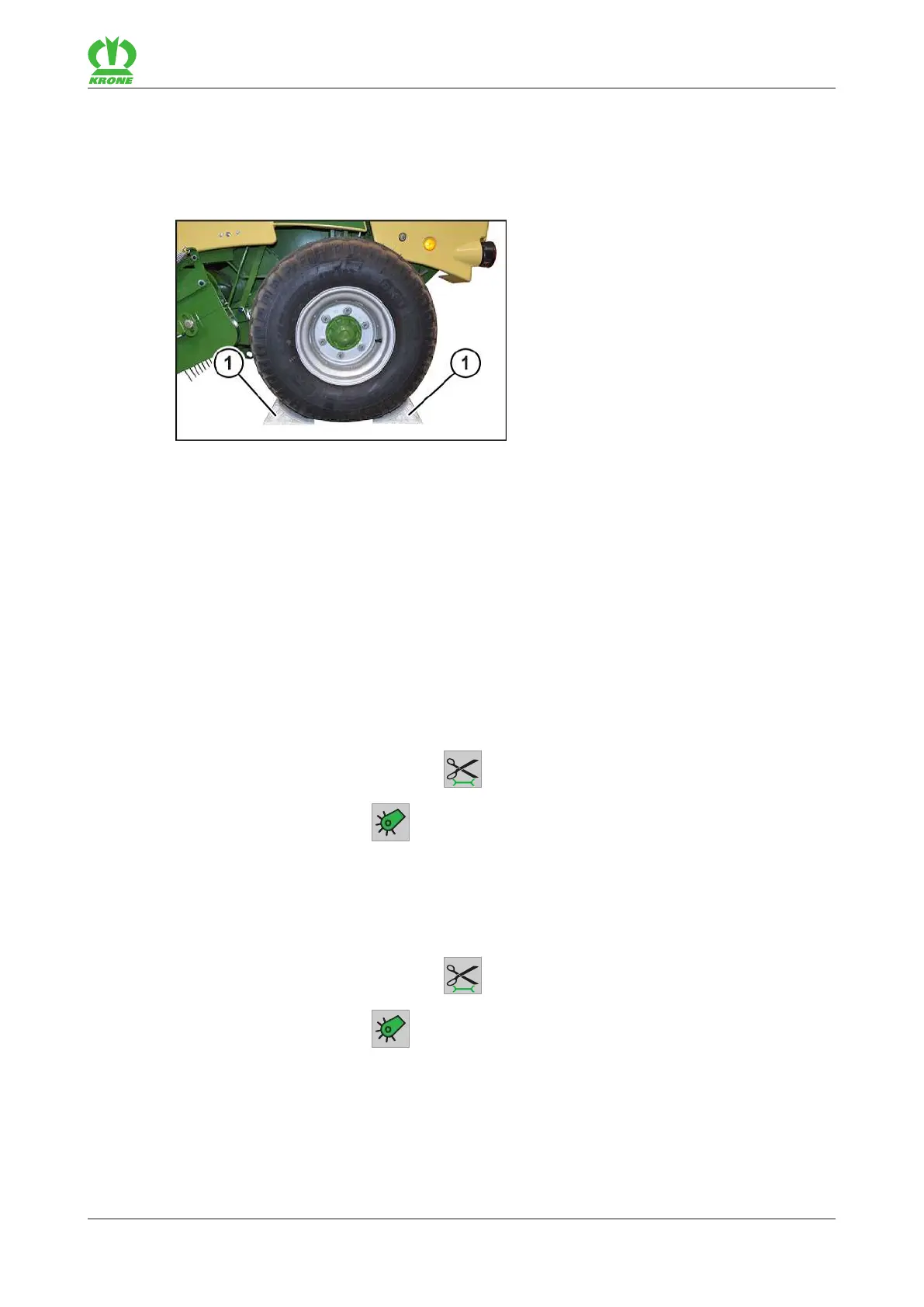

 Place the wheel chocks (1) so close before and behind the same wheel that the machine
cannot roll off.
8.10 Pick-up
8.10.1 Bringing the pick-up to transport/working position
Working position
WARNING!Risk of injury due to falling pick-up! While the pick-up is being lowered,
remove people from the movement range of the pick-up.
 To preselect the pick-up, press the key on the terminal, refer to page103.
ð The key switches to .
 To lower the pick-up into the working position, actuate the control unit on the tractor (yellow,
3+).
Transport position
 To preselect the pick-up, press the key on the terminal, refer to page103.
ð The key switches to .
 To lift the pick-up into the transport position, actuate the control unit on the tractor (yellow,
3+).
