Operation 8
Crop press roller unit 8.11
Comprima V 180
Original Operating Instructions 150001053_00_en 79
Moving the baffle sheet(1) from position(I) to position(II)
Make the following setting on the right and left sides of the machine in the same way:
 To remove the bracket(2):
• pull out the linch pin(3),
• loosen the round-head screw (4),
• remove the spring(11) and
• remove the bracket(2).
 Pull out the linch pin(5).
 Move the baffle sheet (1) in the upper borehole(12) and secure with the linch pin(5).
 To mount the bracket(2):
• insert the round-head screw(4) into the front rectangular borehole(6) and fasten with
spacer tube(7), disc(8) and locknut(9),
• place the bracket(2) on the bolt (3) and secure with the linch pin(3) and
• mount the spring(11).
Moving the baffle sheet(1) from position(II) to position(I)
Make the following setting on the right and left sides of the machine in the same way:
 To remove the bracket(2):
• pull out the linch pin(3),
• loosen the round-head screw (4),
• remove the spring(11) and
• remove the bracket(2).
 Pull out the linch pin (5).
 Move baffle sheet(1) into the lower borehole(11) and secure with the linch pin(5).
 To mount the bracket(2):
• insert the round-head screw(4) into the front rectangular borehole(10) and fasten with
spacer tube(7), disc(8) and locknut(9),
• place the bracket(2) on the bolt(3) and secure with the linch pin(3) and
• mount the spring(11).

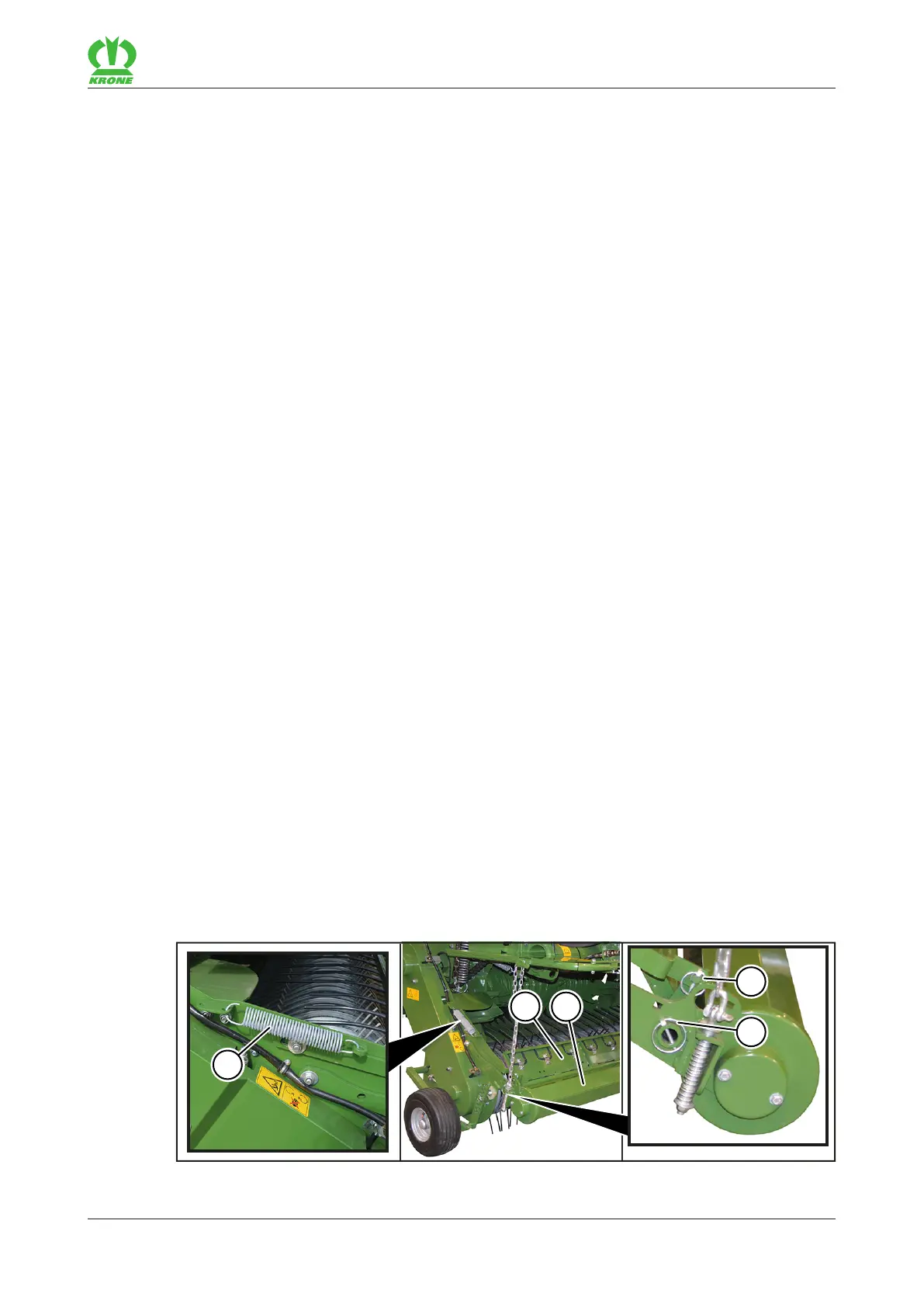

8.11.3 Removing/mounting the baffle sheet on the crop press roller unit
In operation the baffle sheet must have been mounted on the crop press roller unit. The baffle
sheet on the crop press roller unit can be briefly removed in the event of crop blockages.
Removing crop blockages: refer to page88
3
4
5
1
2
RP000-139
ü The machine is shut down and safeguarded, refer to page25.
