7 Commissioning
7.6 Connecting/disconnecting compressed air connections for the compressed air brake
58
Comprima V 180
Original Operating Instructions 150001053_00_en
7.6 Connecting/disconnecting compressed air connections for the
compressed air brake

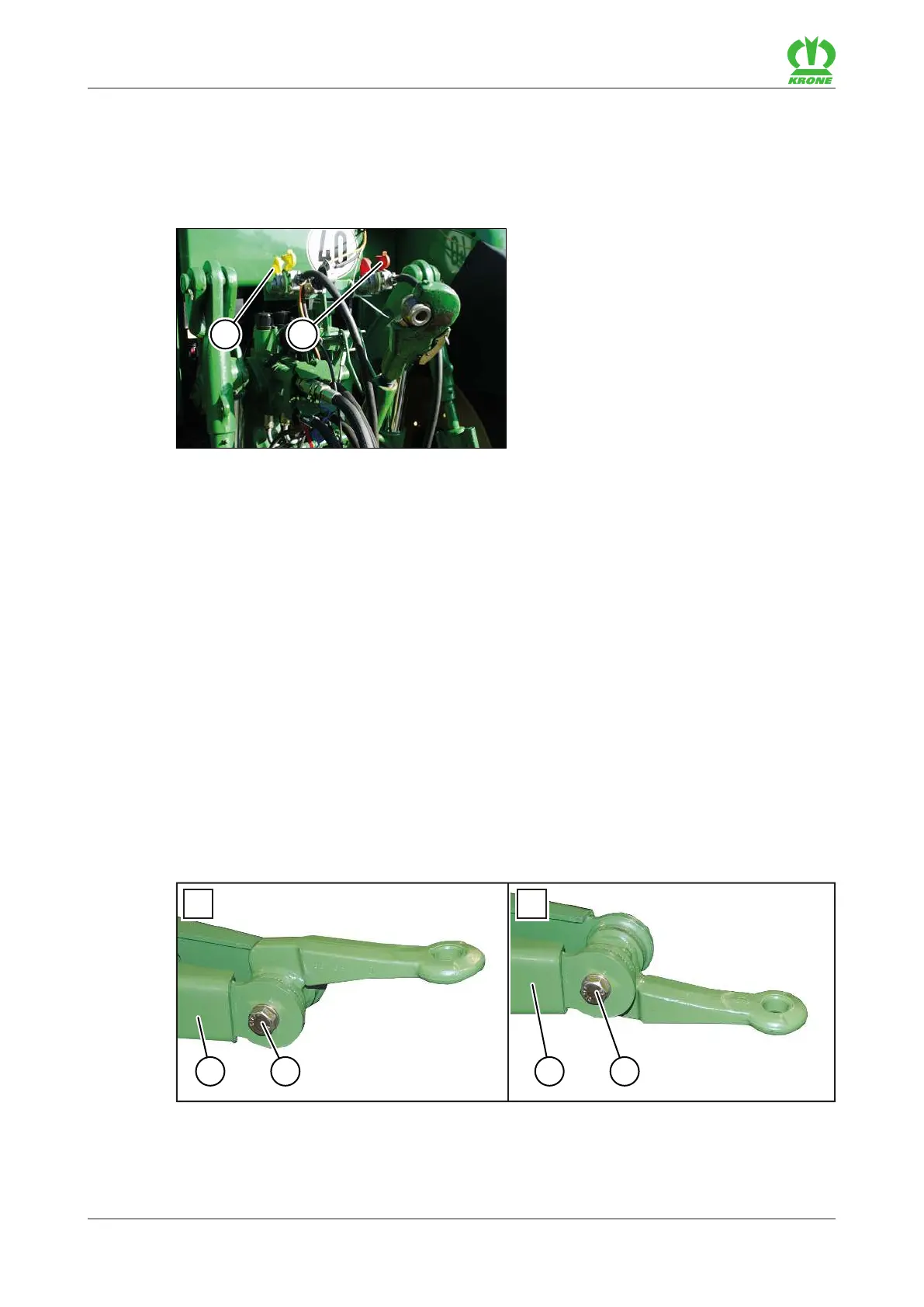

The machine features a dual-line compressed air braking system. The coupling heads are
connected to the machine for attachment of the supply line (2) (red coupling head) and brake
line (1) (yellow coupling head) of the tractor.
1 2
BP000-101
ü The machine is shut down and safeguarded, refer to page25.
Connecting
Observe the correct order when connecting the compressed air lines.
 Firstly, connect the brake line (1) (yellow coupling head).
 Then connect the supply line (2) (red coupling head).
Disconnecting
Observe the correct order when disconnecting the compressed air lines.
 Firstly, disconnect the supply line (2) (red coupling head).
 Then disconnect the brake line (1) (yellow coupling head).
7.7 Adjusting drawbar eye
For "drawbar eye bottom" version
1 2 1 2
I
II
RP000-266
