Commissioning 7
Connecting KRONE BETA II-Terminal 7.8
Comprima V 180
Original Operating Instructions 150001053_00_en 59
In order to obtain more universal shaft clearance, the drawbar eye can be mounted in position
(I) or (II) on the drawbar(1). Only drawbar eyes for version with "Drawbar eye at bottom" can be
rotated.
Remove the screw connection(2).
Rotate the drawbar eye into the desired position(I) or(II) and use the screw connection(2)
to mount it on the drawbar(1).
Ensure that the toothed disc connections mesh.
7.8 Connecting KRONE BETA II-Terminal
NOTICE
Short circuit caused by impurities and moisture in the plug connection
The machine may be damaged by a short circuit.
Make sure that the plugs and sockets are clean and dry.
Tractors without ISOBUS system
EQ003-078
ü The machine is shut down and safeguarded, see chapter Safety, "Shutting down and
safeguarding the machine".
ü The accessories kit B290 “KRONE tractor retrofitting” is mounted.

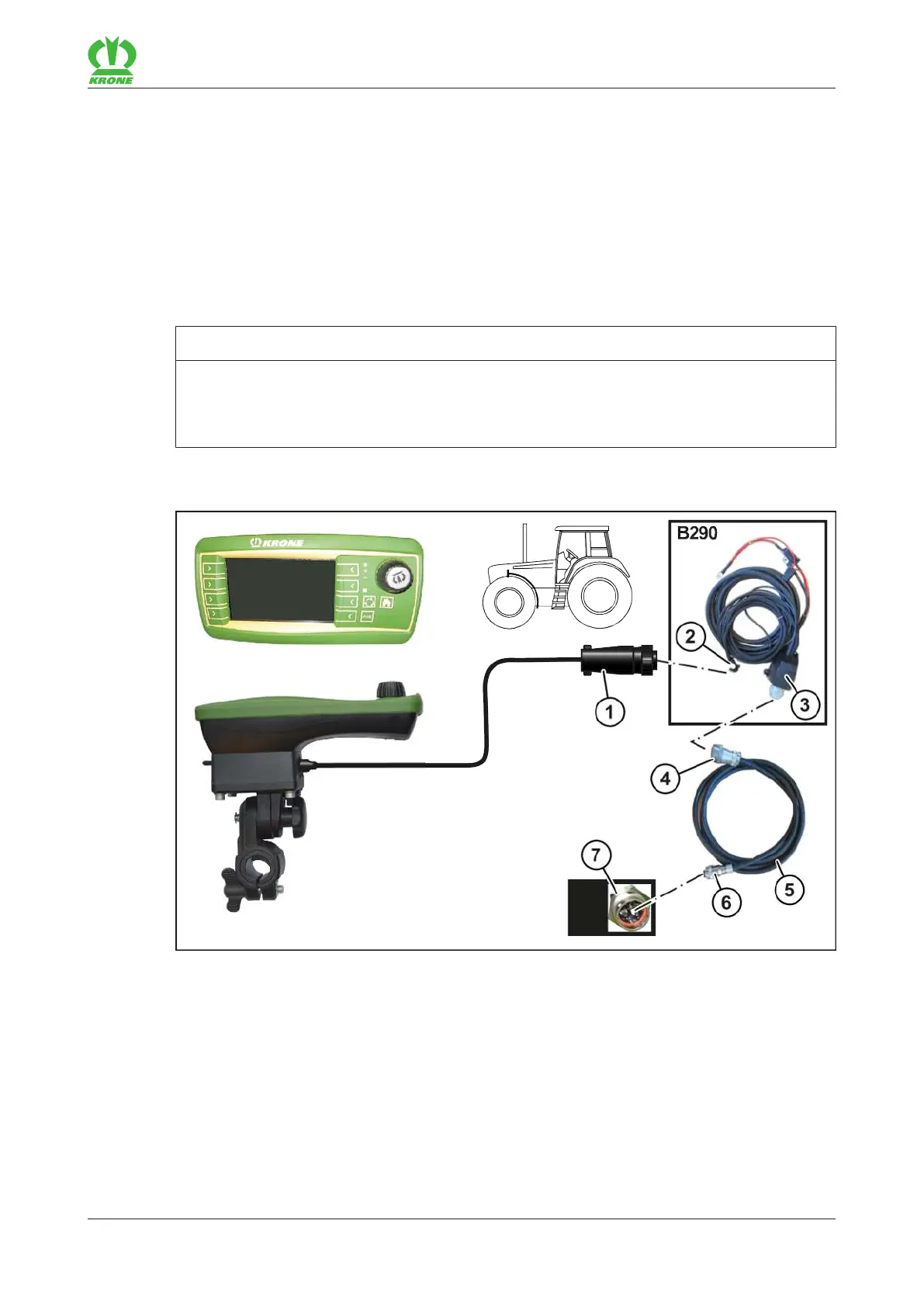

Connection terminal to tractor
Connect the 9-pin plug (1) of the terminal to the 9-pin socket (2) (In-cab).
