Krone Comprima V 180 - Operating the Central Chain Lubrication System

Operation 8
Operating the central chain lubrication system 8.17
Comprima V 180
Original Operating Instructions 150001053_00_en 91
8.17 Operating the central chain lubrication system
2
3
1
4
RH
LH
6
6
5
7
RPG000-078

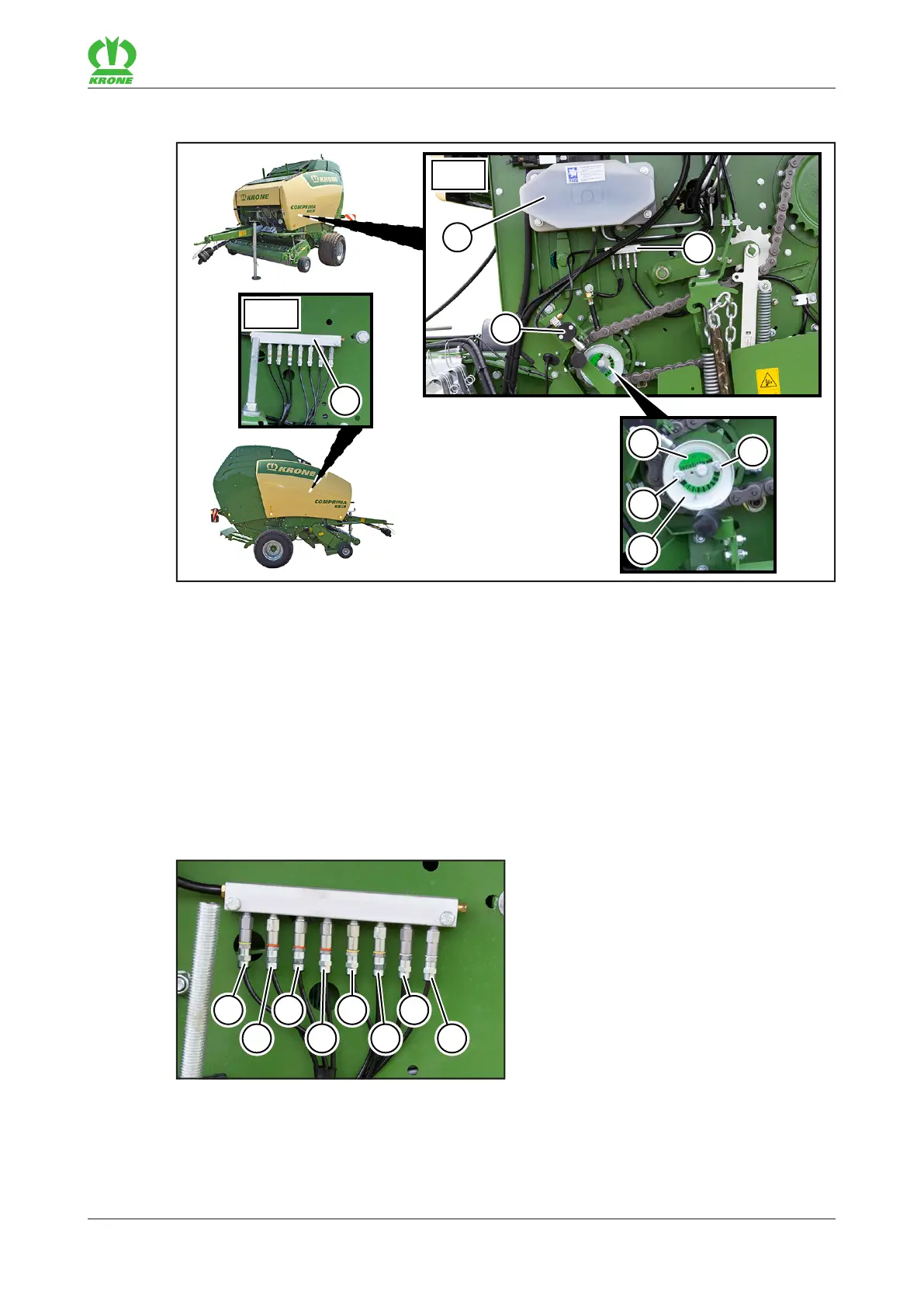

The central chain lubrication system is located on the left side of the machine behind the front
side hood. The rails with the dosing units(1) and(4) are located on the right and left sides of the
machine.
With each revolution of the drive shaft, the pump(3) pumps oil out of the tank(2) via the rails
with the dosing units(1) and(4) to the brushes on the drive chains.
Different dosing units are integrated in the rails for each lubrication point. The oil quantity can be
adjusted using the eccentric cam(5) on the drive roll. In doing so, the oil quantity is adjusted for
all dosing units in the entire machine.
To service the central chain lubrication system, refer to page188.
Dosing units on right side of machine
2
3
4
5
6
7
1
8
RPG000-077
The dosing units on the rail on the right side of the machine oil the chains of the following
machine components:
