Adjust drive chains 16.17
Comprima V 180
Original Operating Instructions 150001053_00_en 181
15-2
3
state:
Q30
M01
M1
K03
I +/-: 1500 mA
I= : 1499 mA
EQG003-094
ü Menu 15 “Settings” is called, refer to page132.
 To open the menu, press .
Æ The display shows the "Actuator test" menu.
 To release the baling pressure, press the or key until the pressure gauge(1)
indicates 0bar.
16.17 Adjust drive chains
WARNING
Risk of injury due to moving drive chains
When working on drive chains, there is a risk of injury due to entanglement of loose long hair
or loose clothing.
 When working on the drive chains, wear protective equipment, refer to page19.
 Before working on any drive chains, shut down and safeguard the machine, refer to
page25.
16.17.1 Drive chain of the pick-up
1
2
3
5
4
3
X
1
X
2
RP000-160

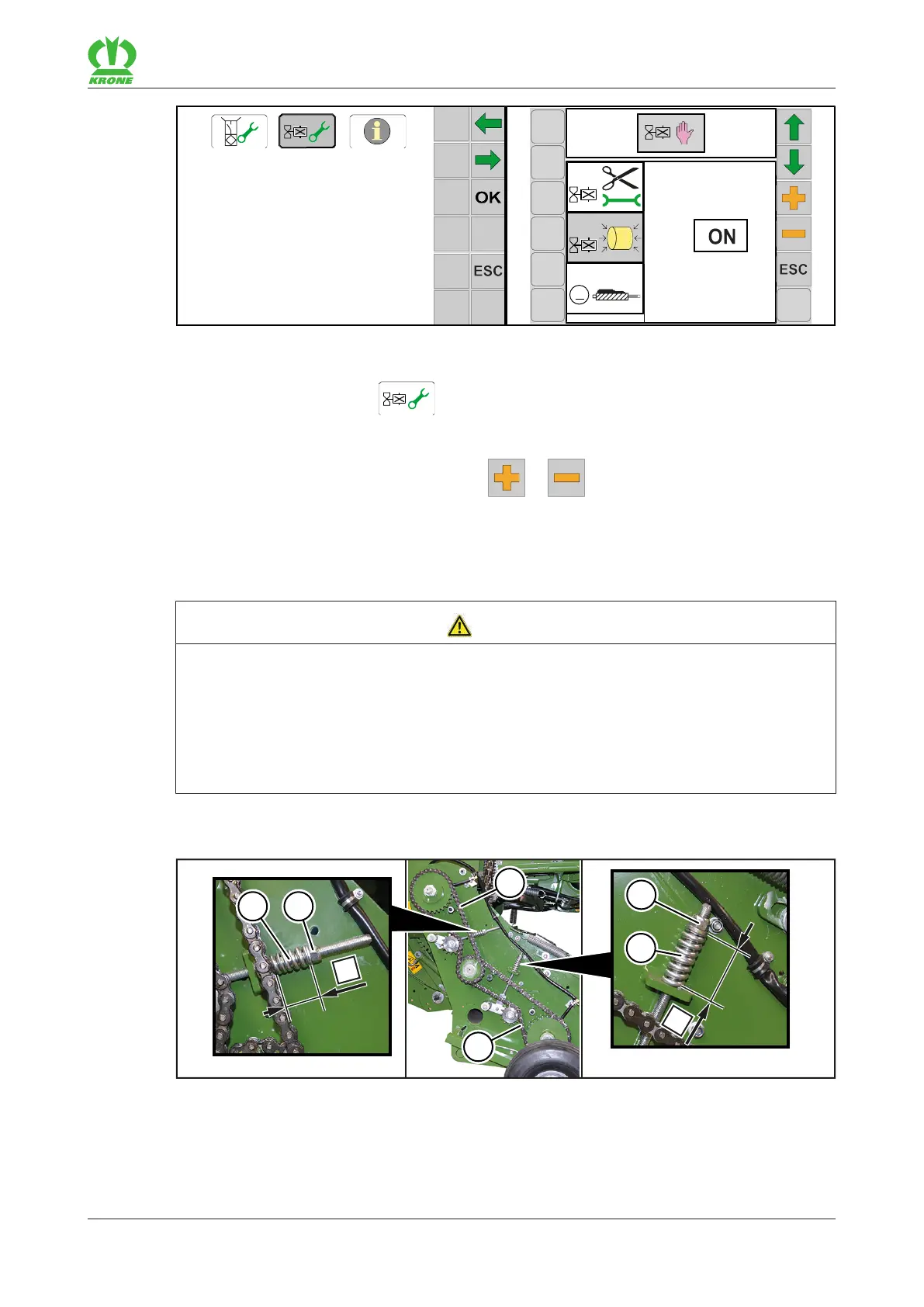

The drive chain of the pick-up main drive(1) and the drive chain of the pick-up(2) are located
on the pick-up on the right side of the machine behind the pick-up guard. The drive chains(1, 2)
are tensioned with the tension springs(3).
