Safety 2
Safety equipment 2.7
Comprima V 180
Original Operating Instructions 150001053_00_en 33
Pos. Designation Explanation
2 (de-
pending
on
country
version)
Catch loop • The catch loop is used for the additional
protection of hitched machines.
3.1 Overload protection universal
shaft
• The overload protection guards the tractor and
the machine from load peaks, refer to
page36.
3.2 Pick-up overload protection • The overload protection guards the tractor and
the machine from load peaks, refer to
page36.
4 Wheel chocks • The wheel chocks secure the machine against
rolling away. 2wheel chocks are affixed to the
machine, refer to page74.
• For version with "Parking brake": In order to
prevent the machine from rolling away, use the
parking brake in addition to the wheel chocks,
refer to page73.
5 Support jack • The support jack is designed for the stability of
the machine when it is not connected to the
tractor, refer to page70.
6 (de-
pending
on
country
version)
SMV emblem • The Slow-Moving Vehicle emblem may be
attached to slow-moving machines or vehicles,
refer to page33. The country-specific
specifications must be observed.
• The SMV emblem is at the rear in the centre or
on the left.
• If the machine is transported on transport
vehicles (e.g. lorry or train), the SMV emblem
must be covered or removed.
7 Stop cock tailgate • The tailgate stop cock is a safety component
which prevents the tailgate from unintentionally
closing, refer to page73.

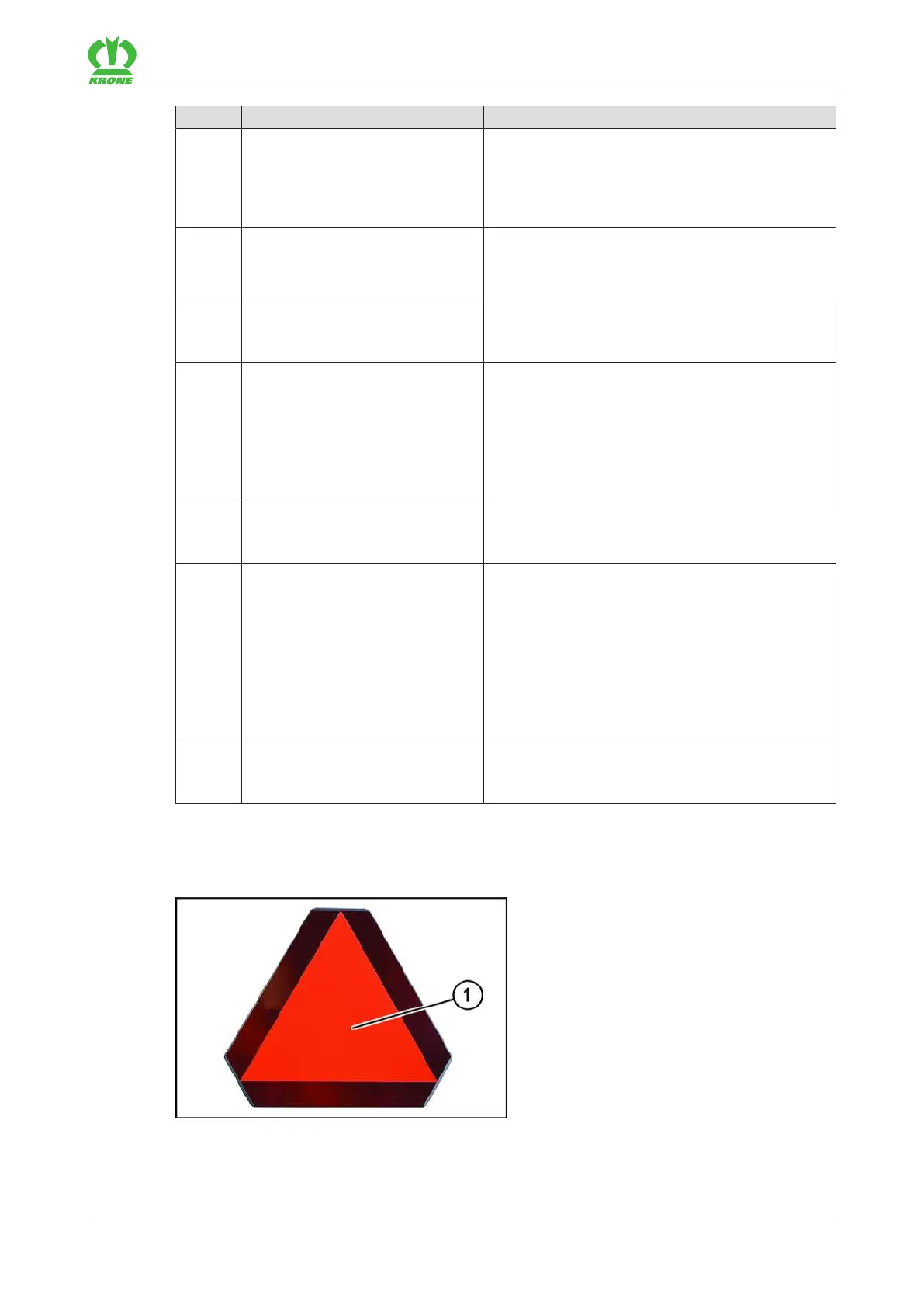

2.7.1 SMV emblem
For the version with “SMV emblem”
KM000-567
The SMV emblem (Slow-Moving Vehicle) (1) can be mounted on slow-moving machines or
vehicles. The country-specific specifications must be observed.
The SMV emblem (1) is at the rear in the centre or on left.
