Changing the filter
ü The reservoir(3) is mostly empty.
 Remove the cover(4).
 Remove the filter(5) from the reservoir(3).
 Mount a new filter(5).
 Mount the cover(4).
 Fill the reservoir(3) with oil, refer to page188.
16.21.2 Cleaning the dosing units
1
2
6
5
4
2
3
7

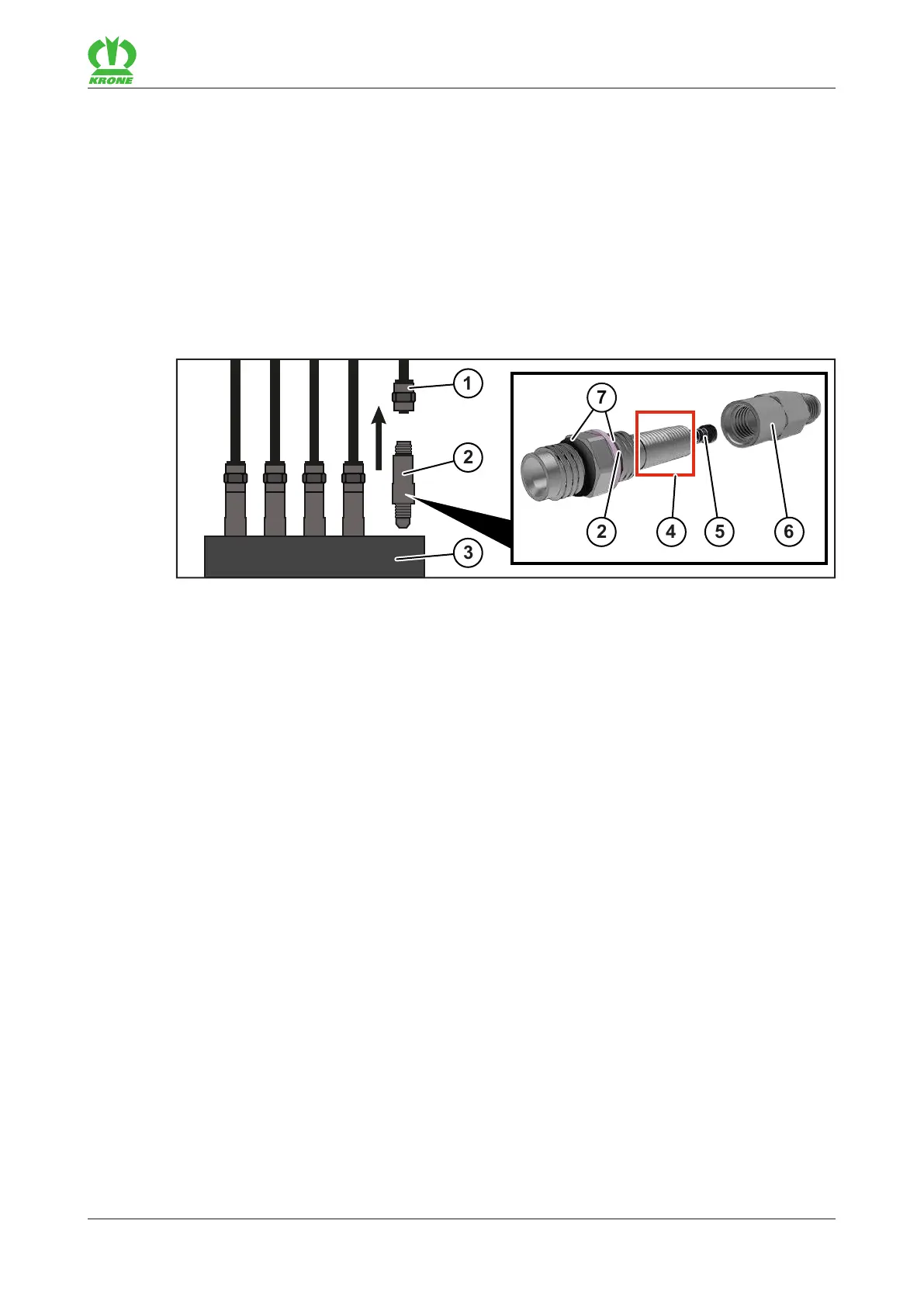

RP000-231
If individual dosing units(2) on the central chain lubrication system are blocked, clean these
dosing units and the surrounding area, see also Maintenance table, refer to page160.
The distributor block(3) with the dosing units(2) of the central chain lubrication system are
located on the right and left sides of the machine behind the front side hood.
ü The machine is shut down and safeguarded, refer to page25.
ü The front side hood is open.
 Unscrew the cap nut(1) from the dosing unit(2).
 Unscrew the dosing unit(2) from the distributor block(3).
 Unscrew the cap(6) from the dosing unit(2).
 Carefully remove the spring and the shut-off valve(5). Ensure that the spring is not
damaged.
 Clean all components with a suitable cleaning agent. In particular, clean the area(4) which
is presumably the dirtiest.
 Ensure that the rubber seals(7) are not cleaned with a strong cleaning agent.
 Mount the spring and the shut-off valve(5).
 Screw on the cap(6) hand-tight.
 Insert the dosing unit(2) into the distributor block(3) and screw on hand-tight.
 Screw the cap nut(1) onto the dosing unit(2) and screw on hand-tight.
