Krone Comprima V 180 - Mounting Protective Cap of Universal Shaft; Mounting Universal Shaft Bracket

6 Initial operation
6.6 Universal shaft
48
Comprima V 180
Original Operating Instructions 150001053_00_en
The universal shaft(1) must be shortened as far as allowed by the narrowest position of both
universal shaft halves.
To move the machine into the shortest position:
 Turn the steering of the tractor all the way to the left or to the right and move tractor and
machine forwards until the narrowest position is reached when driving around curves.
 Switch off the engine and remove the ignition key and carry it with you.
 Secure machine and tractor against rolling away.
 Instructions on how to shorten the universal shaft(1) can be found in the operating
instructions of the universal shaft manufacturer.

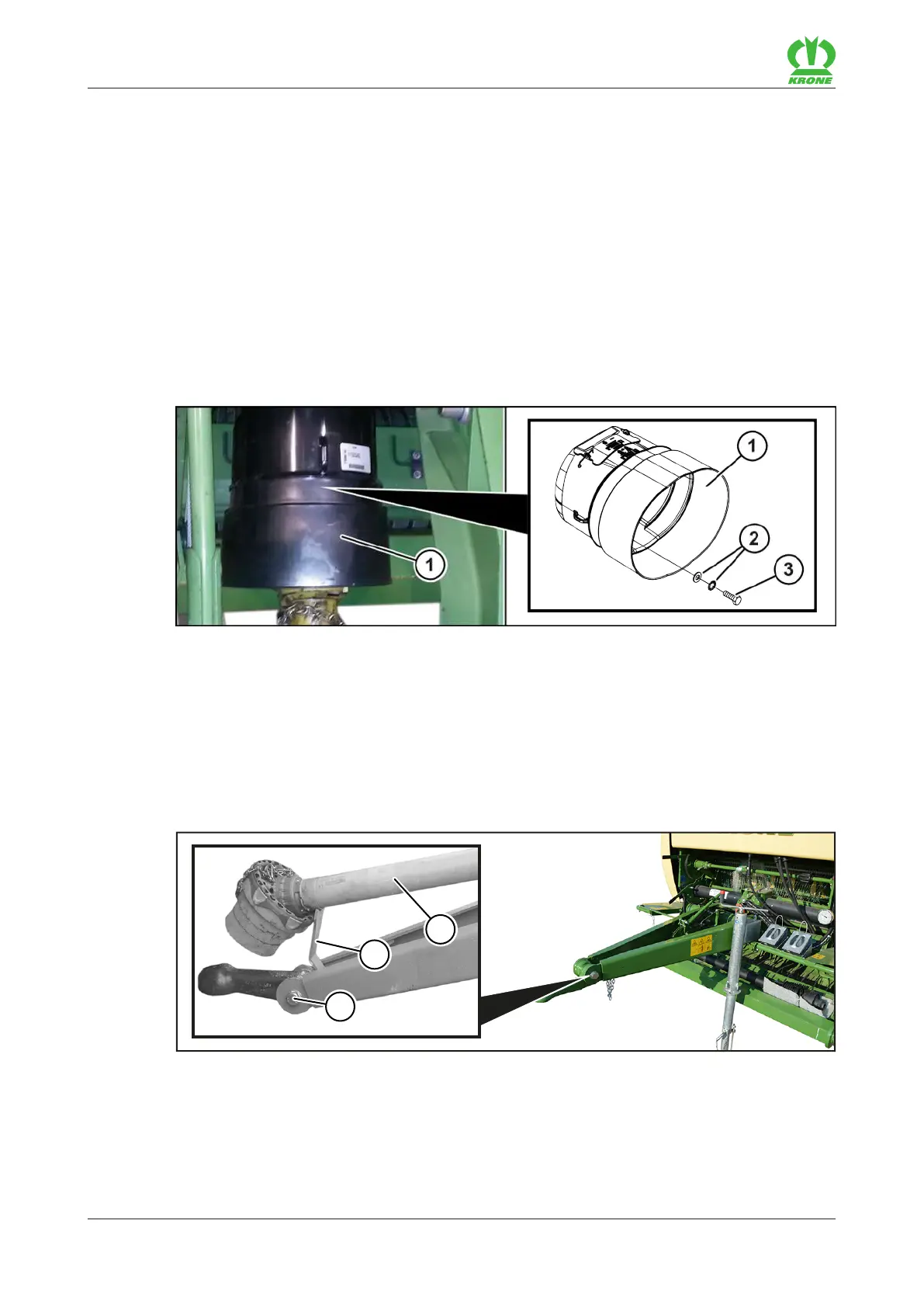

6.6.2 Mounting protective cap of universal shaft
RP000-267
ü The machine is shut down and safeguarded, refer to page25.
 Take the protective cap(1) out of the storage compartment.
 Remove the screws(2) and washers(3) pre-assembled on the machine.
 Push the protective cap(1) over the PTO shaft and mount on the machine using the
screws(2) and washers(3), tightening torques, refer to page166.
6.6.3 Mounting universal shaft bracket
2
1
3
RP000-486
The universal shaft bracket(1) is only required if the drawbar is in the bottom hitching.
ü The machine is shut down and safeguarded, refer to page25.
