Krone Comprima V 180 - Adjusting the Drawbar Height

6 Initial operation
6.5 Adjusting the drawbar height
46
Comprima V 180
Original Operating Instructions 150001053_00_en
RP000-060
 Checking and adjusting the tyre pressure, refer to page171.
6.5 Adjusting the drawbar height
To ensure that the pick-up collects the crops evenly, the drawbar height of the machine must be
adapted to the tractor used. The drawbar is set to an optimal height when the hitched machine
is aligned horizontally or inclined slightly forward to the tractor.
X
RPG000-058

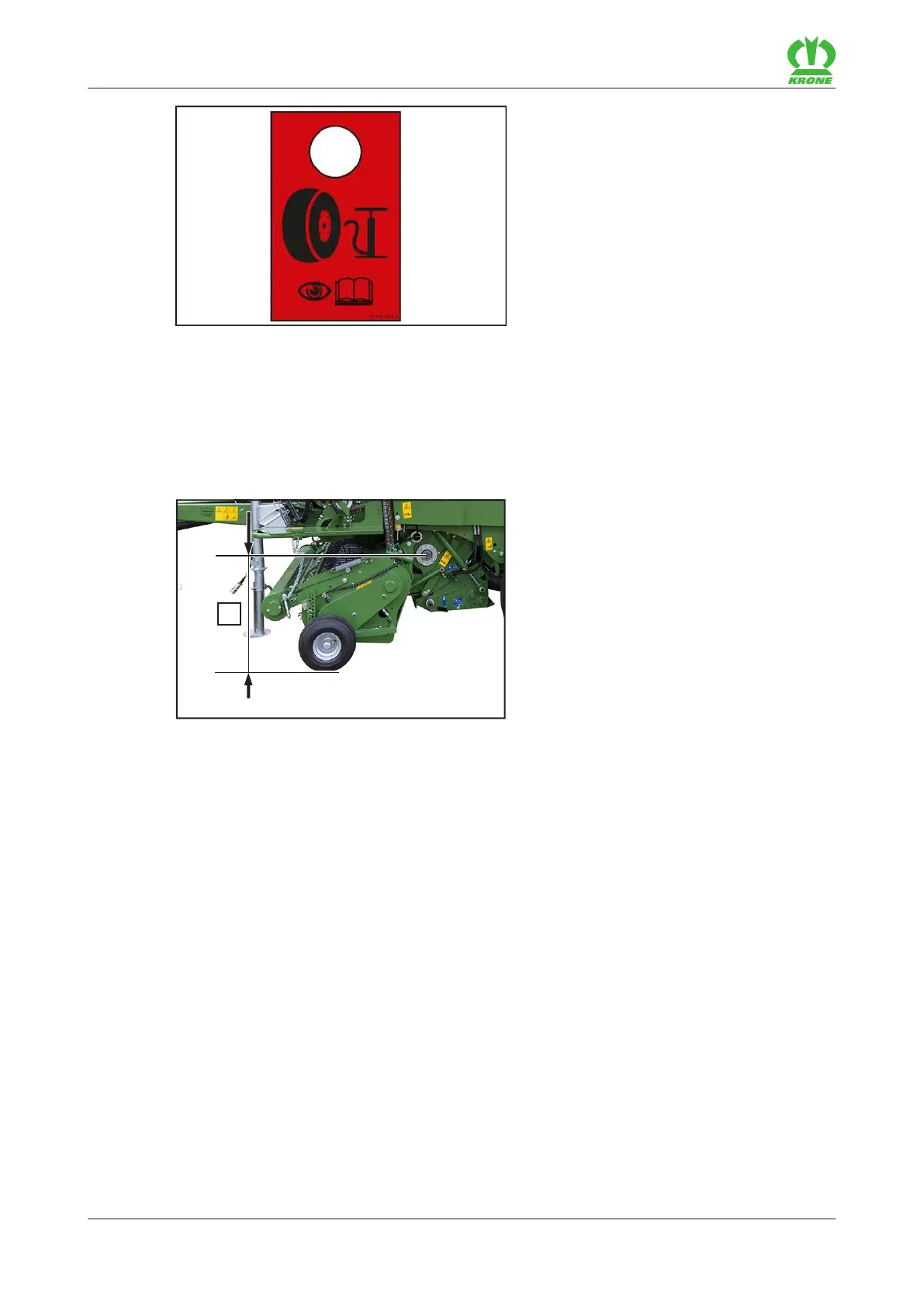

When the machine is coupled to the tractor, dimensionX is the distance between the centre of
the cutting rotor and the ground and must be X=700-750 mm .
When inserting straw (large swaths), the dimension may deviate: X=750-800mm.
Machines with tyres 15.0/55-17 in combination with a tandem axle: X=680mm
Checking drawbar height
ü The tyre pressure matches the value in the tyre table, refer to page41.
 To ensure optimum operating conditions, hitch the machine so that the dimensionX
matches the aforementioned values.
ð If the measured dimension differs from dimensionX, adjust the drawbar height as
follows.
