Krone Comprima V 180 - Connecting the KRONE ISOBUS Terminal (CCI 1200)

Commissioning 7
Connecting the KRONE ISOBUS terminal (CCI1200) 7.9
Comprima V 180
Original Operating Instructions 150001053_00_en 61
Connection tractor to machine
INFORMATION
The cable(5) can be ordered by quoting the order number 20085866*.
 Connect the 9-pin plug (4) of the cable (5) to the 9-pin ISOBUS socket (3) of the tractor.
 Connect the 11-pin plug (6) of the cable (5) to the 11-pin socket (7) of the machine.
7.9 Connecting the KRONE ISOBUS terminal (CCI1200)
NOTICE
Short circuit caused by impurities and moisture in the plug connection
The machine may be damaged by a short circuit.
 Make sure that the plugs and sockets are clean and dry.
INFORMATION
To mount the terminal in the tractor cabin, observe the provided operating instructions of
terminal.

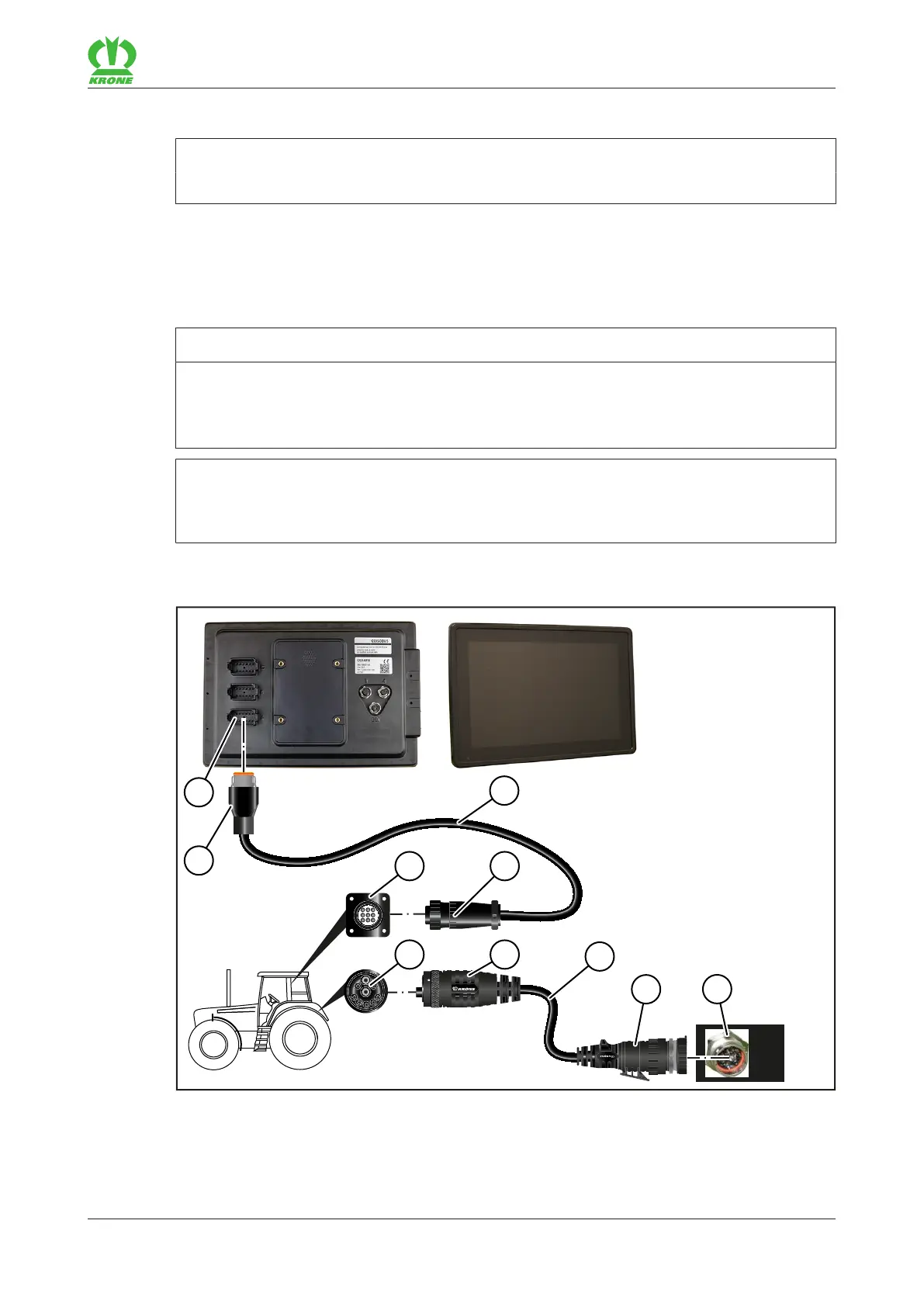

Tractors with integrated ISOBUS system
1
4
7
3
6
9
1
3
10
45
76
8
9
2
EQ001-173
ü The machine is shut down and safeguarded, refer to page25.
