7 Commissioning
7.9 Connecting the KRONE ISOBUS terminal (CCI1200)
62
Comprima V 180
Original Operating Instructions 150001053_00_en

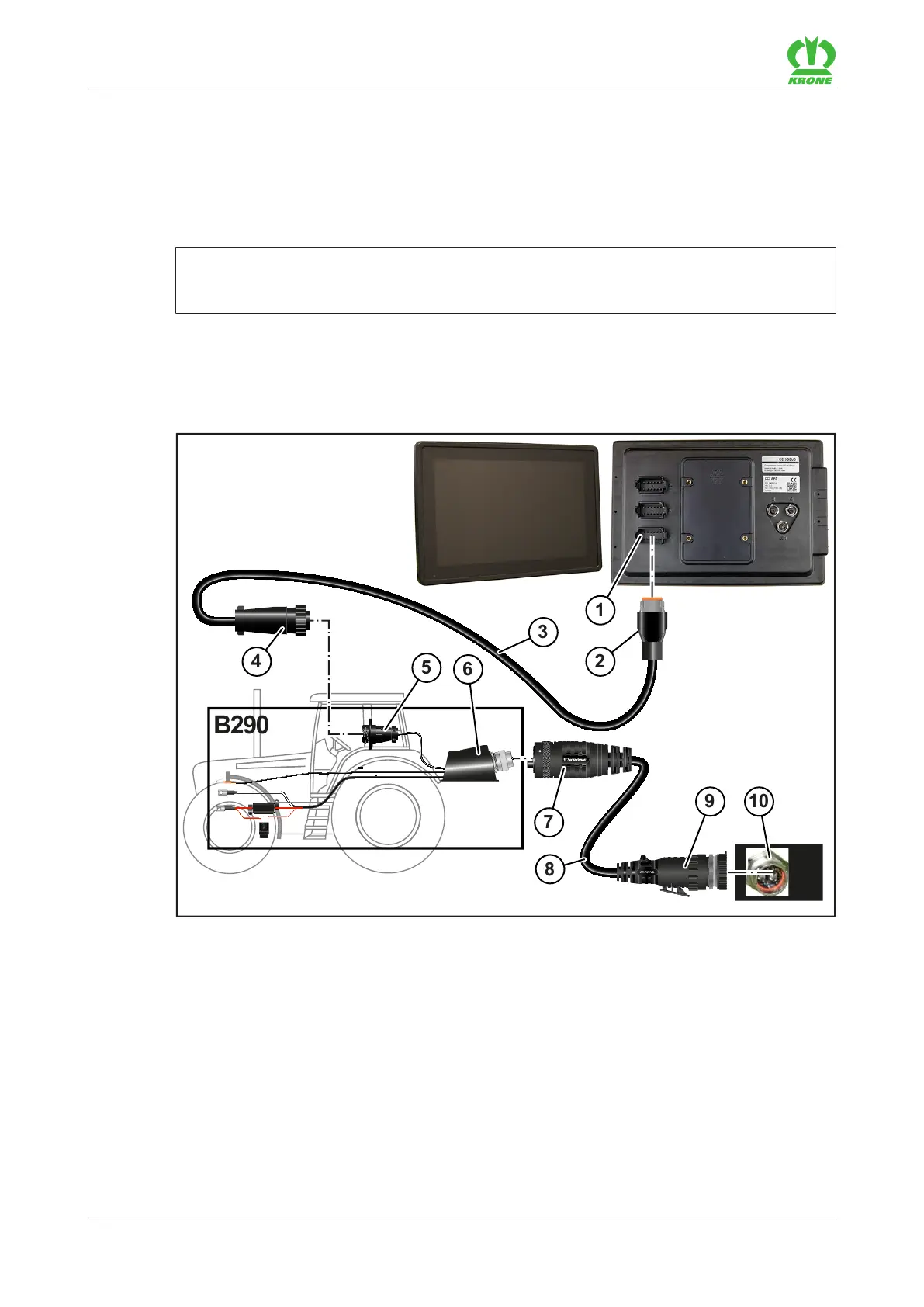

Connection terminal to tractor
 Connect the 12-pin plug(2) of the cable(3) to the 12-pin socket(1) of the terminal.
 Connect the 9-pin plug (4) of the cable (3) to the 9-pin socket (5) (In-cab).
Connection tractor to machine
INFORMATION
The cable(8) can be ordered by quoting the order number 20086886*.
 Connect the 9-pin plug (7) of the cable (8) to the 9-pin ISOBUS socket (6) of the tractor.
 Connect the 11-pin plug (9) of the cable (8) to the 11-pin socket (10) of the machine.
Tractors without ISOBUS system
2
3
10
B290
4
5
7
8
9
6
1
EQ001-181
ü The machine is shut down and safeguarded, refer to page25.
ü The accessories kit B290 “KRONE tractor retrofitting” is mounted.
Connection terminal to tractor
 Connect the 12-pin plug(2) of the cable(3) to the 12-pin socket(1) of the terminal.
 Connect the 9-pin plug (4) of the cable (3) to the 9-pin socket (5) (In-cab).
