Commissioning 7
Connecting foreign ISOBUS terminal 7.10
Comprima V 180
Original Operating Instructions 150001053_00_en 63
Connection tractor to machine
INFORMATION
The cable(8) can be ordered by quoting the order number 20086886*.
Connect the 9-pole plug (7) of the cable (8) to the 9-pole ISOBUS socket (6) of the tractor.
Connect the 11-pole plug (9) of the cable (8) to the 11-pole socket (10) of the machine.
7.10 Connecting foreign ISOBUS terminal
NOTICE
Short circuit caused by impurities and moisture in the plug connection
The machine may be damaged by a short circuit.
Make sure that the plugs and sockets are clean and dry.
INFORMATION
To mount the terminal in the tractor cabin, observe the provided operating instructions of
terminal.
EQ001-146
ü The machine is shut down and safeguarded, refer to page25.

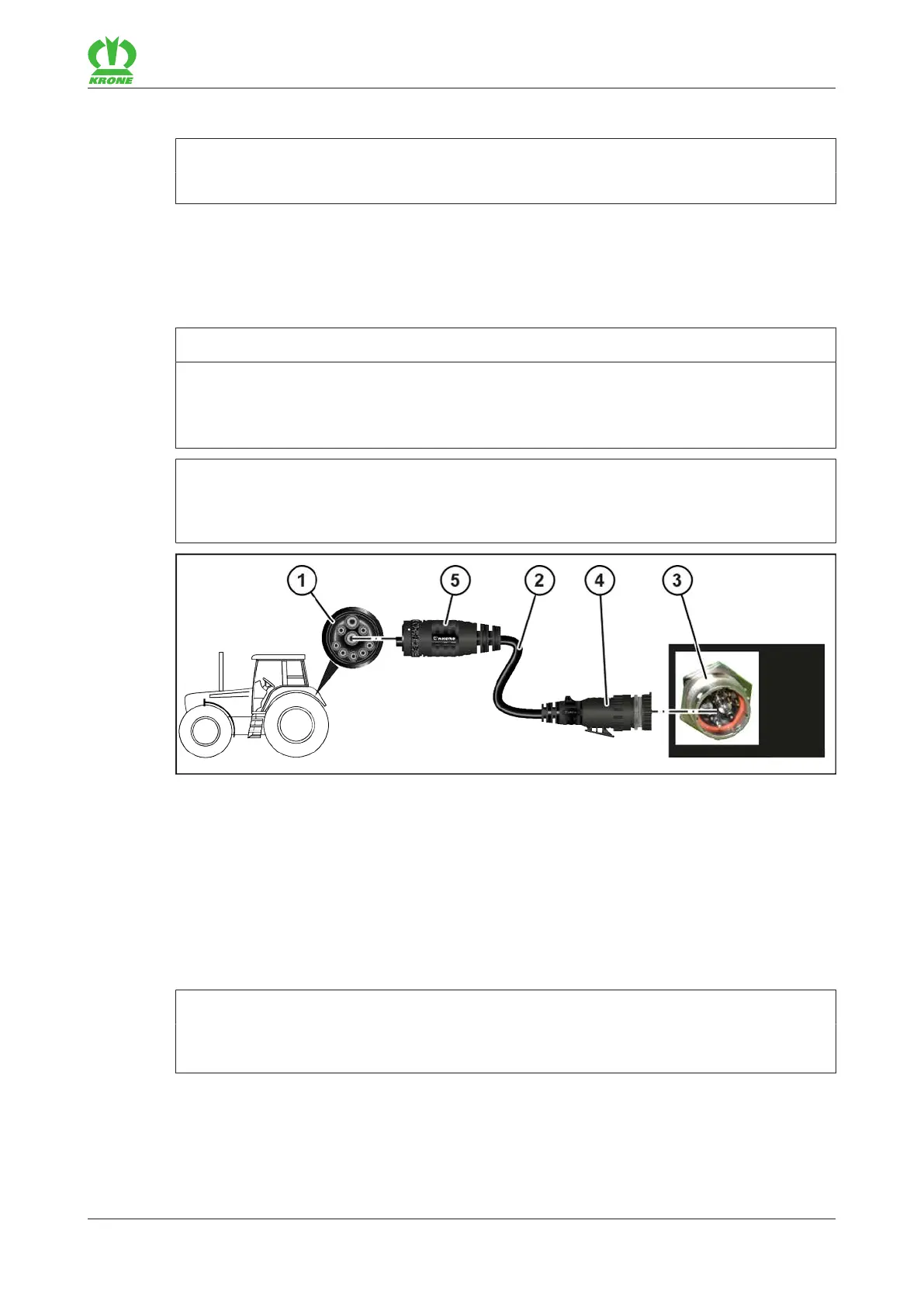

Connection tractor to machine
Connect the 9-pole plug (5) of the cable (2) to the 9-pole ISOBUS socket (1) of the tractor.
Connect the 11-pole socket (4) of the cable (2) to the 11-pole socket (3) of the machine.
Connection terminal to tractor
INFORMATION
For further details on terminal connection, observe operating instructions of ISOBUS terminal
manufacturer.
