Krone Comprima V 180 - Function Description Net and Chamber Film Wrapping

4 Machine description
4.5 Function description net and chamber film wrapping
38
Comprima V 180
Original Operating Instructions 150001053_00_en
1 Deflection shaft 10 Wrapping material brake
2 Spring of the wrapping material brake 11 Tension lever
3 Spreading bracket 12 Feed rocker arm
4 Spreading roller 13 Plastic guide
5 Retaining sheet 14 Deflection roll on the cross tube
6 Synthetic cloth 15 Deflection tube on the cross tube
7 Path of net 16 Cross tube
8 Cutting unit 17 Feed roller
9 Retaining bracket
When tying is started, the feed rocker arm(12) guides the net onto the feed roller(16). The feed
roller(16) guides the net between the compression rollers to the round bale and pulls it off the
round bale. When the tying cycle of the set number of net layers is complete, the cutting unit(8)
swings over the net and cuts the net.
4.5 Function description net and chamber film wrapping
2
3
4
5
6
7
8
9
13
1
16
15
17
14
18
11
12
10
RP000-181

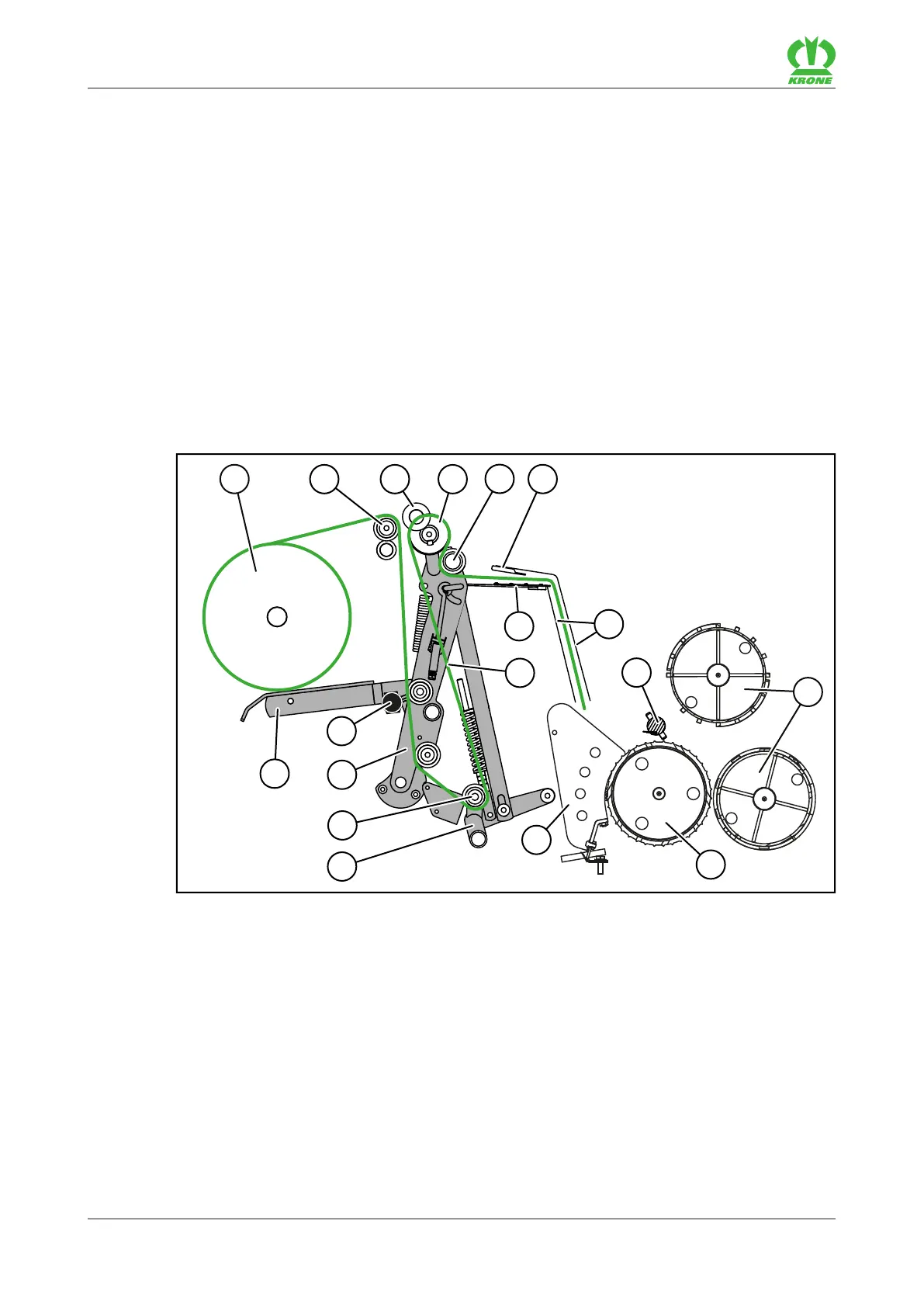

1 Net or film roll 10 Cutting unit
2 Deflection roll 11 Compression rollers
3 Pressure axis with foam wadding 12 Feed roller
4 Conical roller 13 Feed unit
5 Spreading roll 14 Spreading bracket
6 Synthetic cloth 15 Deflection roll on the cross tube
7 Retaining sheet 16 Feed rocker arm
8 Feed strips 17 Spherical button for locking the tension
lever
9 Wrapping material path of net or film 18 Tension lever
