13 Terminal menus
13.20 Menu 15 "Settings"
138
Comprima V 180
Original Operating Instructions 150001053_00_en
It is not necessary to set the tying position separately as it results from the cutting position and
feed position. The tying position has been optimally set when the cable(3) is not tensioned and
the roll(1) is in front of the ratchet.
If the cable(3) is tensioned and the roll(1) is not in front of the ratchet(2), check and reset the
cutting position and the feed position.

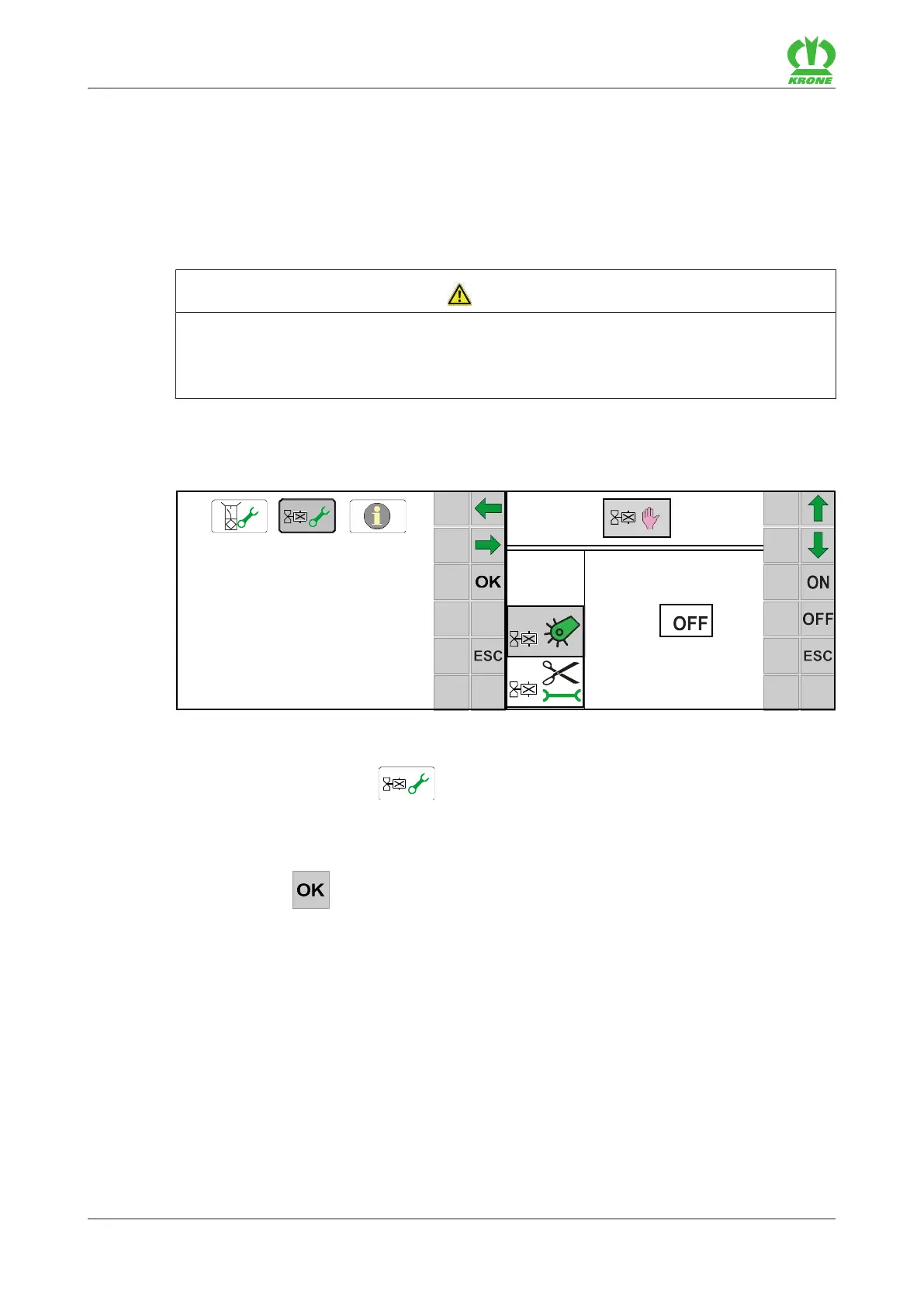

13.20.2 Menu 15-2 "Actuator test"
WARNING
Risk of injury due to non-observance of safety instructions
If the relevant safety routines are not observed, persons may be seriously injured or killed.
 The safety routines must be read and observed to avoid accidents, refer to page25.
The actuator test is used to test the actuators installed on the machine. An actuator can only be
tested when current is flowing through it. Therefore, in the "Actuator test" menu, the actuator
must be controlled manually for a short time in order to determine possible errors in the actuator
system.
2
state:
K01
K03
15-2
EQG003-031
ü Menu 15 “Settings” is called, refer to page132.
 To open the menu, press .
ð A warning opens which refers to the operating instructions.
 Observe the safety routine "Run actuator test", refer to page26.
 Confirm with .
Æ The display shows the "Actuator test" menu.
Possible actuators (depending on how the machine is equipped)
An overview of the sensors, actuators and control units is provided in the circuit diagram in the
appendix.
