4 Machine description

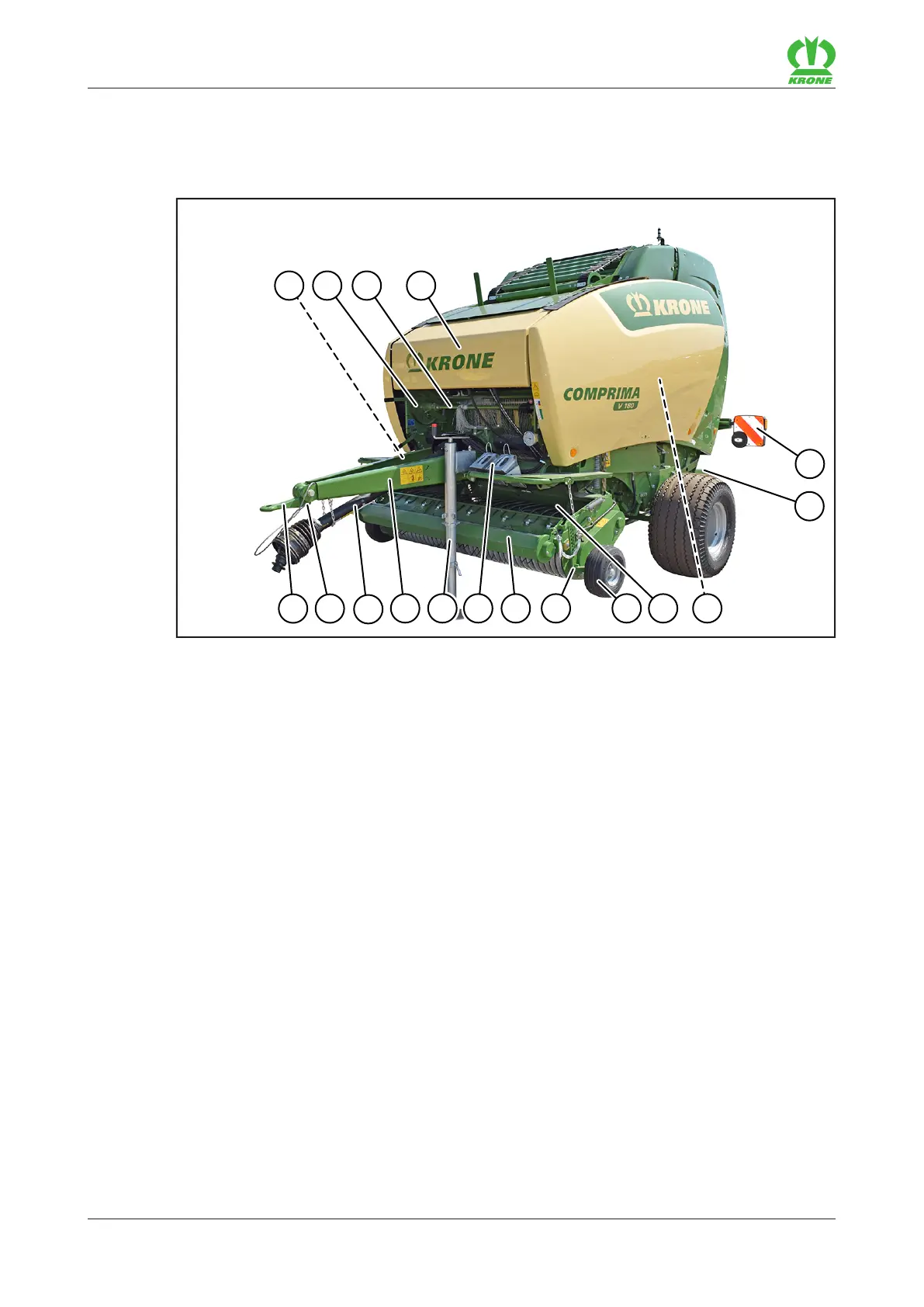

4.1 Machine overview
36
Comprima V 180
Original Operating Instructions 150001053_00_en
4 Machine description
4.1 Machine overview
17 16
15
14 13 12 11 10 9 8
5
1 3 42
6
7
RPG000-069
1 Hose and cable support 10 Pick-up
2 Wrapping material brake 11 Crop press roller unit
3 Wrapping material 12 Wheel chocks
4 Storage compartment 13 Support jack
5 Road lighting 14 Drawbar
6 Bale ejector 15 Universal shaft
7 Document storage tube 16 Catch loop
8 Feed rotor 17 Drawbar eye
9 Guide wheel
4.2 Overload protections on the machine
Universal shaft
To prevent an overload, there is a friction clutch or cam clutch on the universal shaft depending
on the version.
To vent the friction clutch, refer to page180.
Pick-up drive
To prevent an overload, there is a cam clutch on the pick-up drive. This cam clutch has been
set at the factory and must not be adjusted without consulting your KRONE service partner.
