15 Settings
15.11 Setting the retaining comb for chamber film wrapping
156
Comprima V 180
Original Operating Instructions 150001053_00_en
15.11 Setting the retaining comb for chamber film wrapping
For the "Net and chamber film wrapping" version
I
II
3
4
4
5
5
1
2
RP000-030

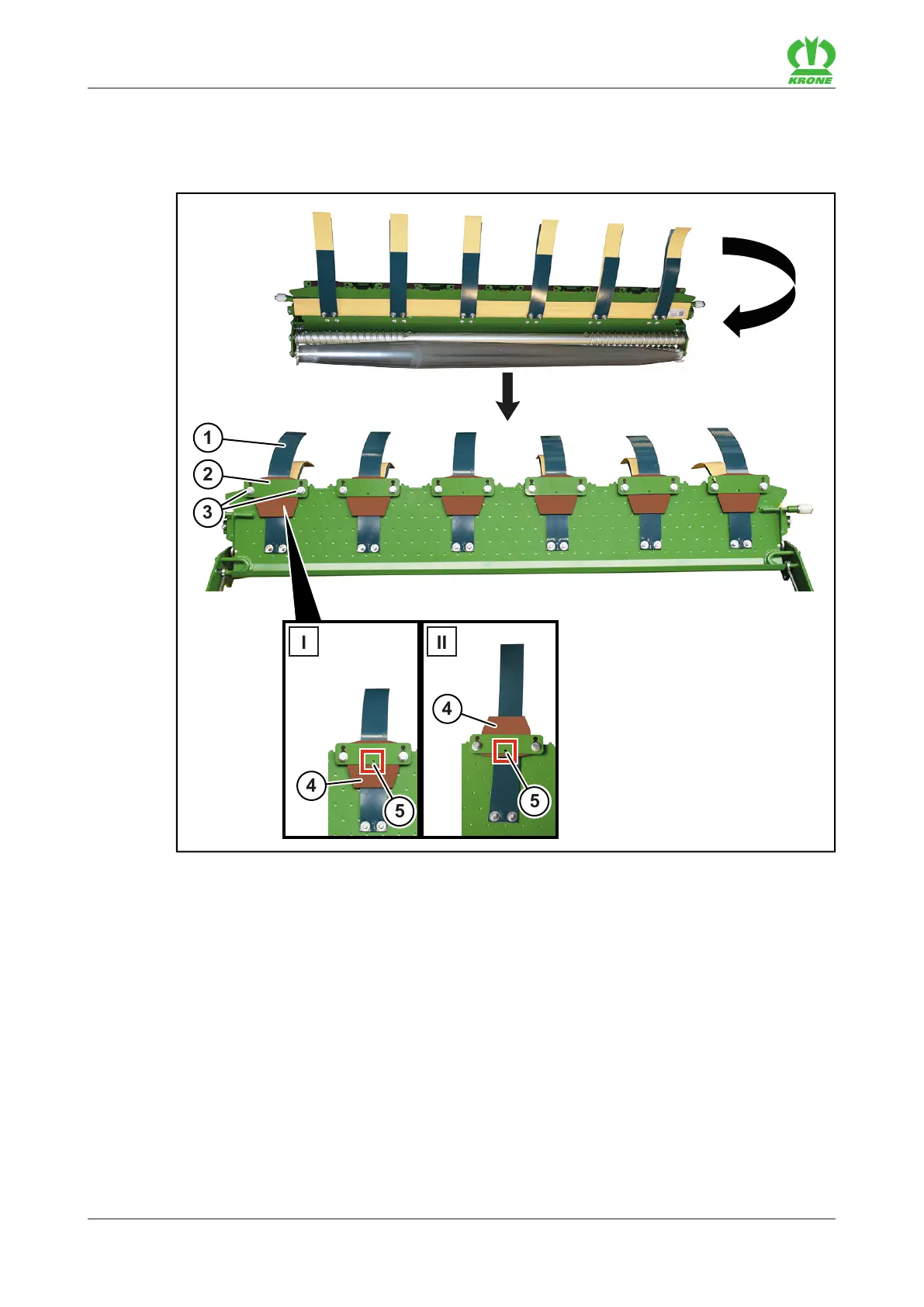

Position I
The trapezoidal rubbers(4) on the underside of the retaining comb have been pre-assembled
with the short side pointing backwards, seen in direction of travel. The figure shows the
underside of the retaining comb.
Position II
If the blue strips(1) are taken along by the first net feed roller with a delay or are not taken
along, you can reverse the trapezoidal rubbers(4). This provides additional support.
