Maintenance 16
Setting the scraper and stone deflector 16.13
Comprima V 180
Original Operating Instructions 150001053_00_en 179
INFORMATION
It is possible to turn the clamping wedge by 180° as its dimensions from oblong hole to the
upper and lower stop edge are different.

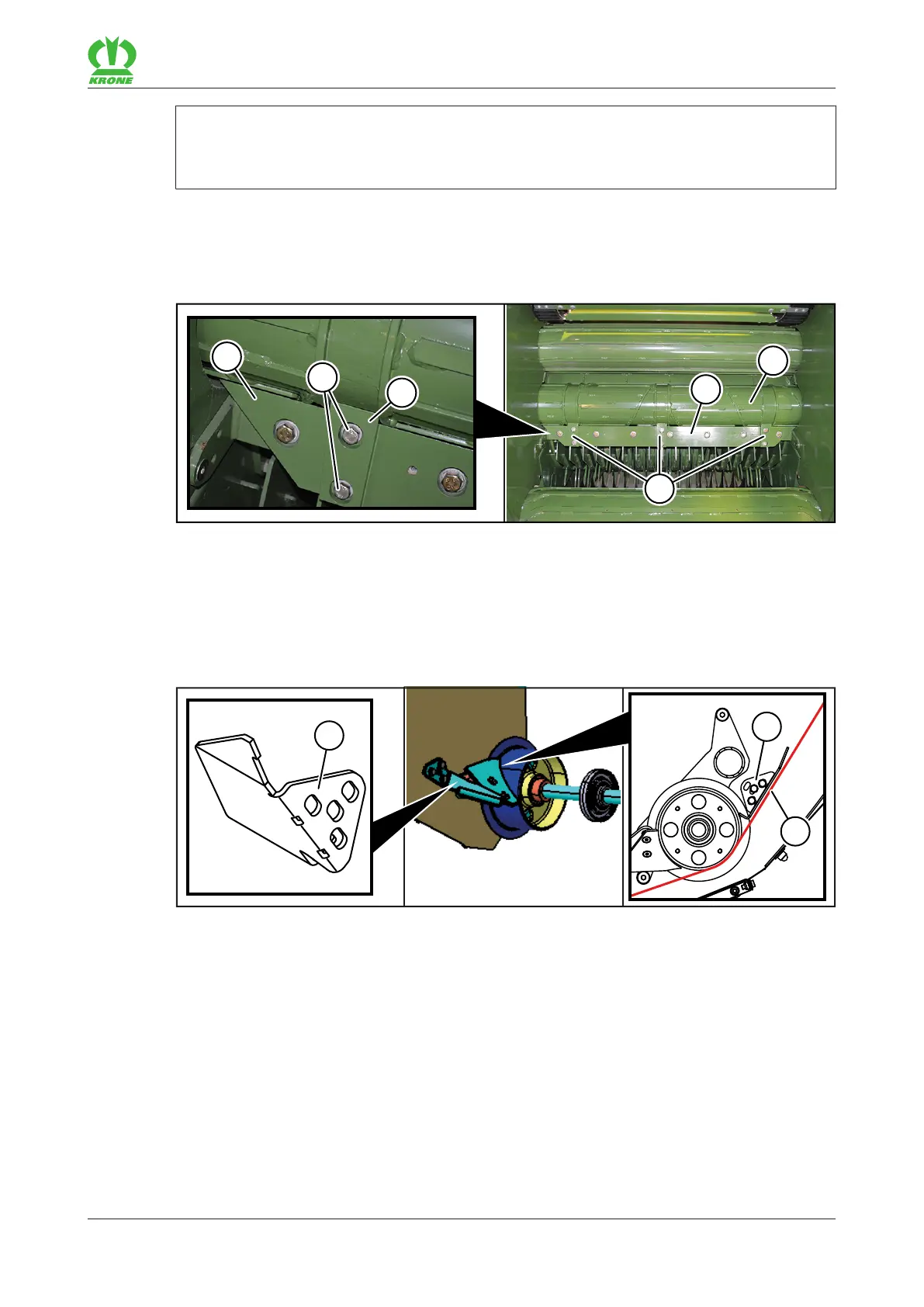

Setting and tightening the scraper reinforcer
For the "Net and chamber film wrapping" version
1
3
1
3
4
2
RP000-302
 Place the scraper reinforcer(3) on the spiral roller(4).
 Tighten the screw connections(2), tightening torque, refer to page166.
16.13.2 Setting the stone deflectors
All stone deflectors on the deflection shafts must be regularly checked and adjusted.
1
1
2
RP000-312
Proceed as follows on all stone deflectors:
 Set the stone deflector(1) parallel and at a distance of 5-10 mm from the bale formation
conveyor(2).
