Krone Comprima V 180 - Universal Shaft; Adjusting the Length of the Universal Shaft

Initial operation 6
Universal shaft 6.6
Comprima V 180
Original Operating Instructions 150001053_00_en 47

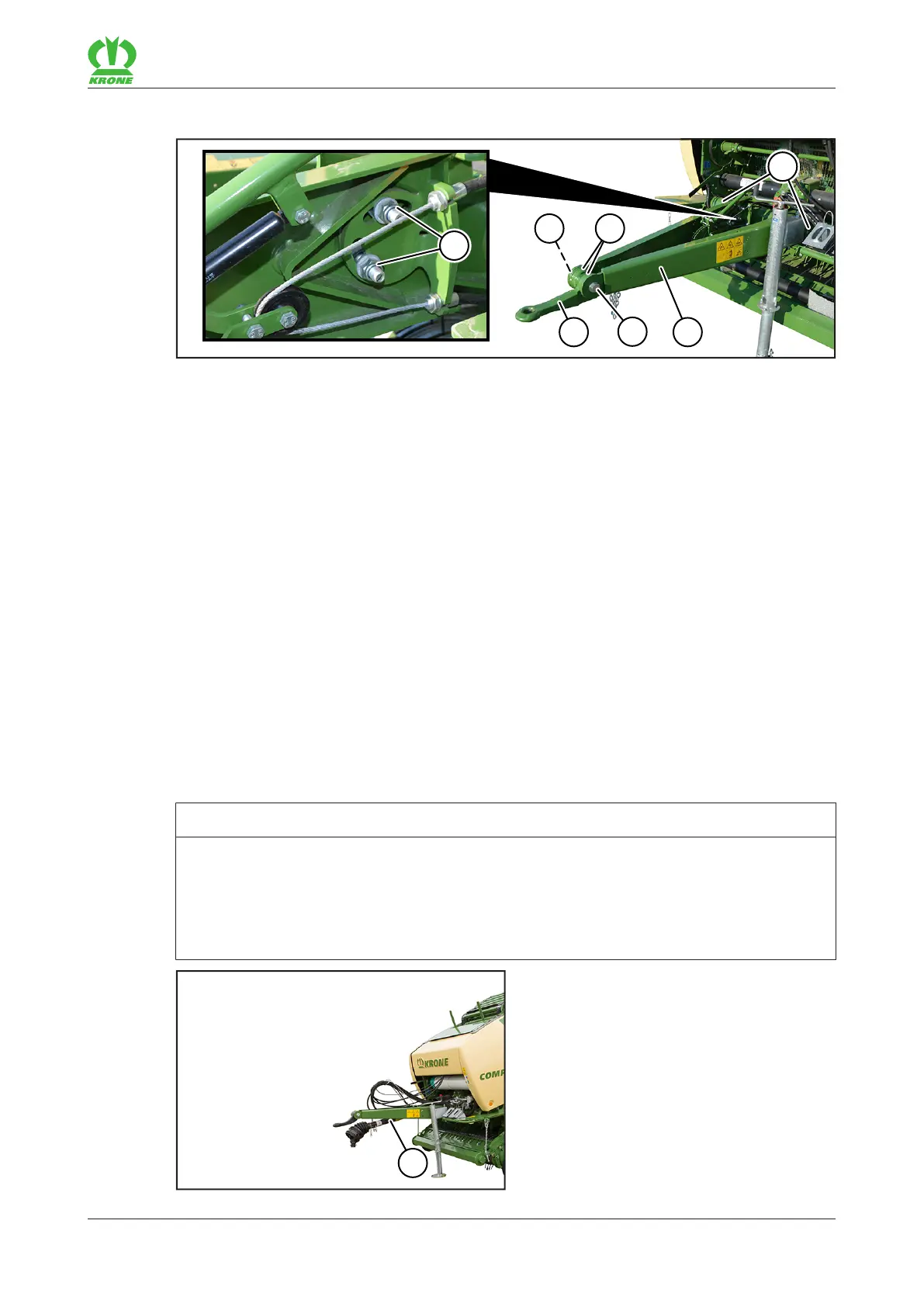

Adjusting the drawbar height
4
3
5
1
6
2
4
RPG000-087
ü The machine is disconnected from the tractor and stands on the support jack.
 Loosen the screw connections(1) on the right and left sides of the drawbar until the
drawbar(5) can be moved in the toothed disc connections(6).
 Adjust the drawbar(5) to the height of the tractor hitch.
 Ensure that the toothed disc connections(6) mesh.
To adjust the height of the drawbar eye(3):
 Loosen the screw connections(4) until the drawbar(3) can be moved in the toothed disc
connections(2).
 Align the drawbar eye(3) parallel to the ground.
 Ensure that the toothed disc connections(2) mesh.
 Tighten the screw connections(1) and(4). Torque, refer to page166.
 After 10 operating hours tighten the screw connections(1) and(4).
6.6 Universal shaft
6.6.1 Adjusting the length of the universal shaft
NOTICE
Changing the tractor
The machine could be damaged if the universal shaft length is not checked when changing
the tractor.
 In order to avoid damage to the machine, check universal shaft length every time the
tractor is changed and correct it, if necessary, refer to page47.
1
RPG000-086
