KRONE ISOBUS-Terminal CCI 100
153
Pos: 22.5.40 /B A/Info-Center/Se nsoren/Diagnose N amursens oren@ 19\mod_ 1238072125300_ 78.doc @ 214 095 @ @ 1
Diagnostics – Namur sensors
Pos: 22.5.41 /B A/Info-Center/Se nsoren/Möglic he Sensoren (je nach Ausstattung d er Maschine) @ 19\mod_123 8071336628_ 78.doc @ 214 010 @ @ 1

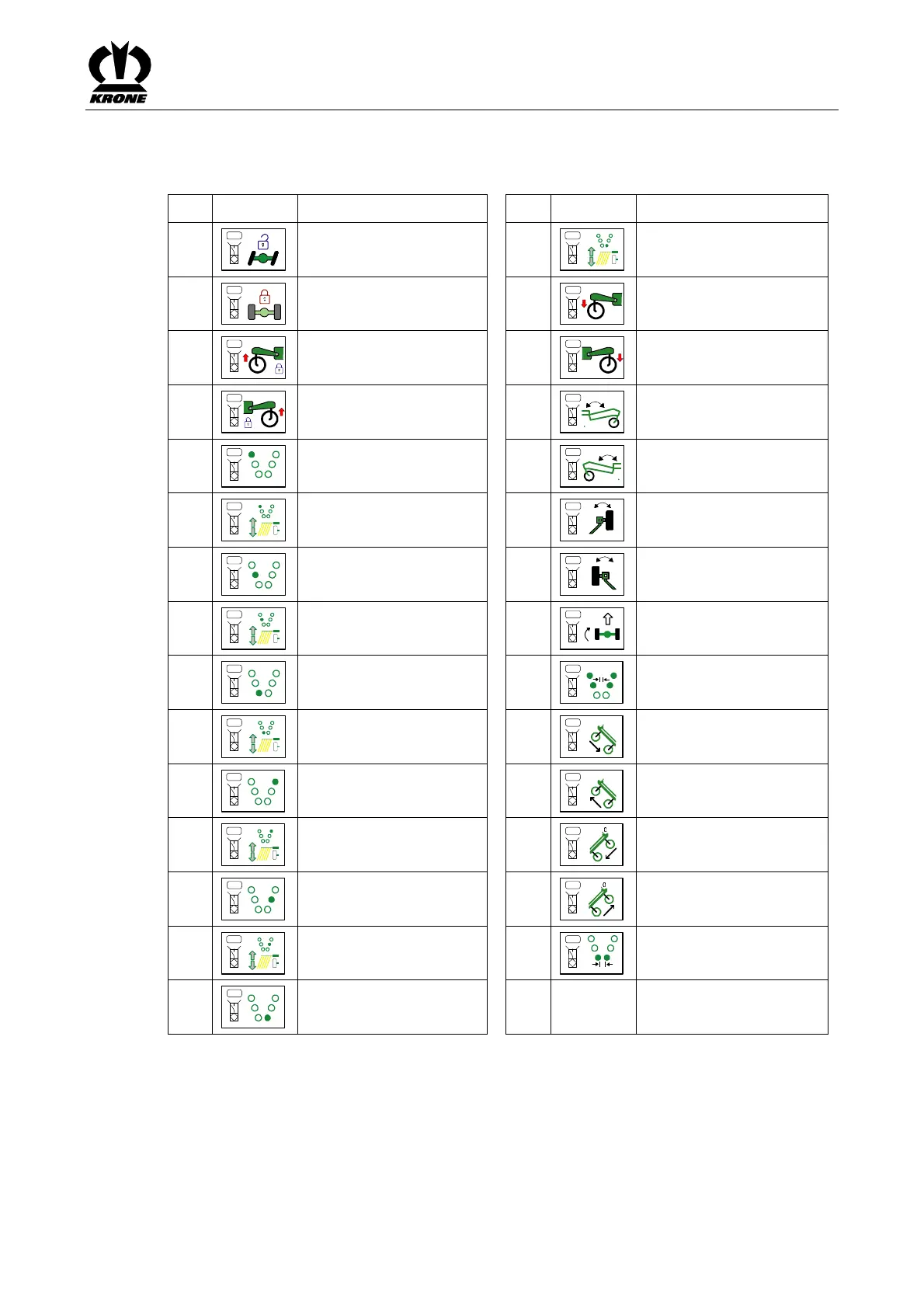

Possible sensors (depending on how the machine is equipped)
Pos: 22.5.42 /B A/Info-Center/CC-I SOBUS-Termi nal/CCI-Swa dro/Swadro 2000/Ha uptmenüs/H auptmenü 4 Ser vice/Auflistung d er möglichen Se nsoren SW 2000@ 89\mod_ 1322034767036 _78.doc @ 757 775 @ @ 1
No. Symbol Description No. Symbol Description
B1
B 1
Steering on B17
B17
Rear right (RR) rotor
height
B2
B 2
Steering off B18
B18
Left wheel extended
B4
B 4
Left wheel retracted B19
B19
Right wheel extended
B5
B 5
Right wheel retracted B20
B20
Position of right outrigger
B6
B 6
Front left (FL) rotor B21
B21
Position of left outrigger
B7
B 7
Front left (FL) rotor
height
B22
B22
Right guide wheel setting
B8
B 8
Middle left (ML) rotor B23
B23
Left guide wheel setting
B9
B 9
Rotor height middle left
(ML)
B24
B24
Wheel sensor acreage
counter
B10
B10
Rear left (RL) rotor B25
B25
MIN
Carriage at front
B11
B11
Rear left (RL) rotor
height
B27
B27
0
Left parallel adjustment
B12
B12
Front right (FR) rotor B28
B28
0
Left parallel adjustment
B13
B13
Front right (FR) rotor
height
B29
B29
Right parallel adjustment
B14
B14
Middle right (MR) rotor B30
B30
Right parallel adjustment
B15
B15
Middle right (MR) rotor
height
B31
B31
Swath width
B16
B16
Rear right (RR) rotor
Pos: 22.5.43 /B A/Info-Center/CC-I SOBUS-Termi nal/CCI-Swa dro/Swadro 2000/Ha uptmenüs/H auptmenü 4 Ser vice/Abkürzunge nH L/VL/ML/HL/ VR/MR @ 8 9\mod_1322564 824754_78.d oc@ 764080 @ @ 1
RL= Rear left FL = Front left ML= Middle left
RR= Rear right FR = Front right MR= Middle right
