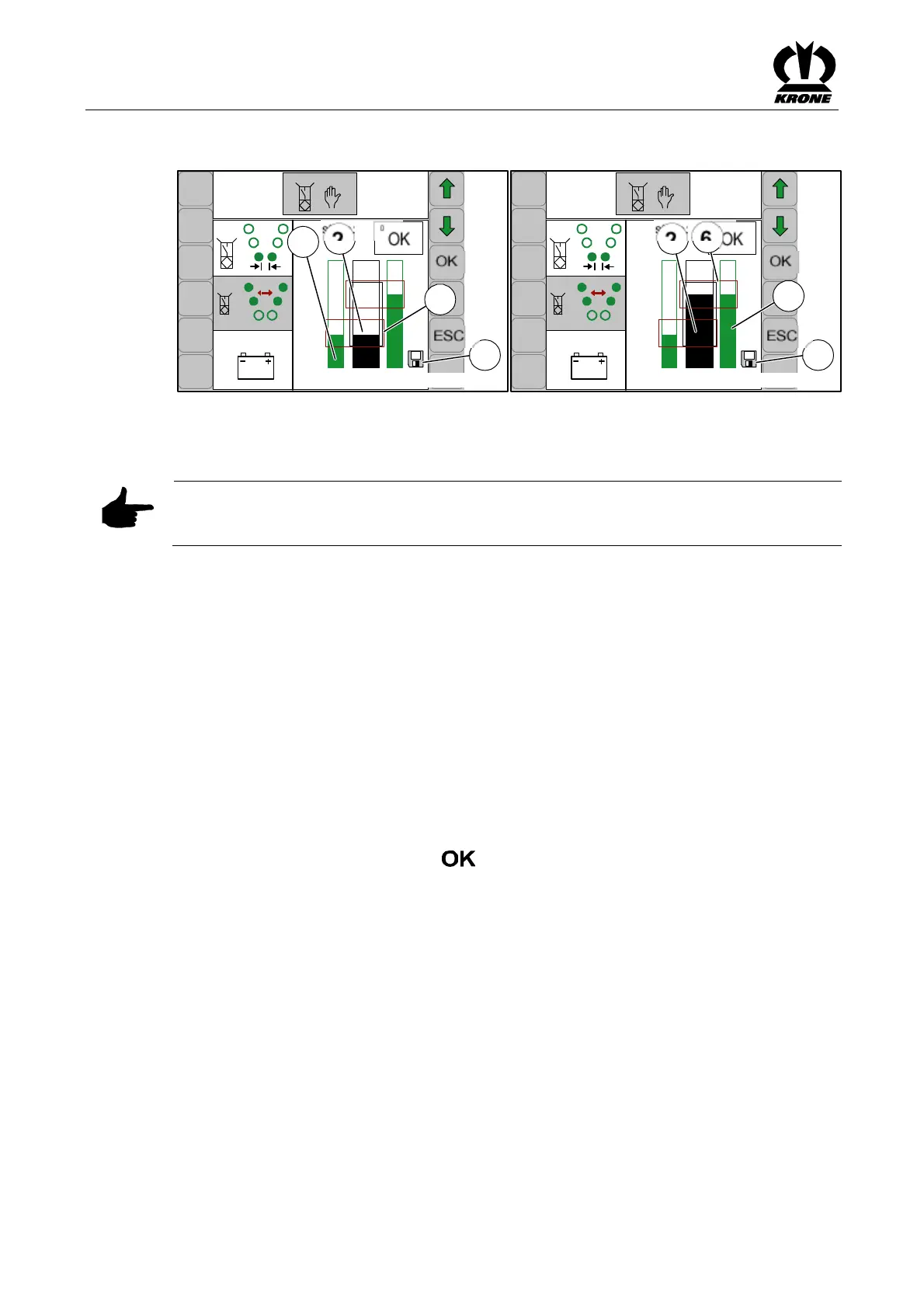

Diagnostics – analogue sensors
Pos: 22.5.45.2 /BA /Info-Center/CC- ISOBUS-T erminal/CCI-Swa dro/Swadro 20 00/Hauptmenüs/H auptmenü 4 S ervice/Diagnos e analoge Sens oren Bild SW 2000@ 90\mod_ 1323092706657_ 78.doc @ 767 702 @ @ 1
4-2
0
R 1
U 1
5.1V
4.0V
1.4V
1.1V
1.2V 1.2V 4.6V
B31
CCS00085
1
2
3
4
4-2
0
R 1
U 1
5.1V
4.0V
1.4V
1.1V
1.2V 1.2V 4.6V
B31
CCS00086
2
5
4
6
Fig. 110
Minimum working width Maximum working width
Pos: 22.5.45.3 /BA /Info-Center/CC- ISOBUS-T erminal/CCI-Swa dro/Swadro 20 00/Hauptmenüs/H auptmenü 4 S ervice/Dreh winkelsensor Arbeits breite prüfen und Einstellen @ 9 0\mod_132 3092929618_78.d oc @ 767760 @ @ 1
Note
The machine must be in the transport position before you test and adjust the angle of rotation
sensor.
The angle of rotation sensor for detecting the minimum/maximum working width is pre-set in the
factory. In the transport position of the machine, the two bars (1, 2) must be inside the marked
area (3) of the bar display.
Due to heavy loads and the setting of components, subsequent calibration may be necessary if
the bar (2) is outside the marked area (3) of the bar display in the transport position of the
machine.
Pos: 22.5.45.4 /BA /Info-Center/CC- ISOBUS-T erminal/CCI-Swa dro/Swadro 20 00/Hauptmenüs/H auptmenü 4 S ervice/Dreh winkelsensor minimal e Arbeitsbreit e@ 90\mod_132 3096766700_ 78.doc @ 768 129 @ @ 1
Setting the minimum working width (narrow bar on left)
• The machine is in transport position
• Switch off the engine, remove the ignition key, and secure the tractor and machine from
rolling away.
• Slightly loosen the angle of rotation sensor and align it in the oblong hole until the bar (2)
is inside the market area (3).
• Screw the angle of rotation sensors tightly into place.
• Press and hold the function key until the icon (4) appears in the display.
The left bar (1) copies the value of the middle bar (2) and the icon (4) extinguishes in the
display.
