KRONE operation terminal Gamma
81
Pos: 16.24.37 / BA/Info-Center/S ensoren/Möglich e Sensoren (je n ach Ausstatt ung der Maschi ne) @ 19\mod_1 238071336628 _78.doc @ 21 4010 @ @ 1
Possible sensors (depending on how the machine is equipped)
Pos: 16.24.38 / BA/Info-Center/Sc hwader/Bedie neinheit - Komf ort/SW 2000/Hau ptmenüs/Haup tmenü 4 Ser vice/Mögliche Na mursensoren Au fzählung SW 20 00 @ 36\mod_12 60965256355 _78.doc @ 33 7661 @ @ 1
Pos: 16.24.39 / BA/Info-Center/S ensoren/Status anzeigen Sens or(1 ,2,3,4) @ 0\mod_12009106 80947_78.doc @ 4 7748 @ @ 1
State:
Alive (iron) Broken cable
Not alive (no iron) Short circuit
Pos: 16.24.40 / BA/-----Seitenu mbruch------ @ 0\ mod_11961753 11226_0.doc @ 4165 @ @ 1

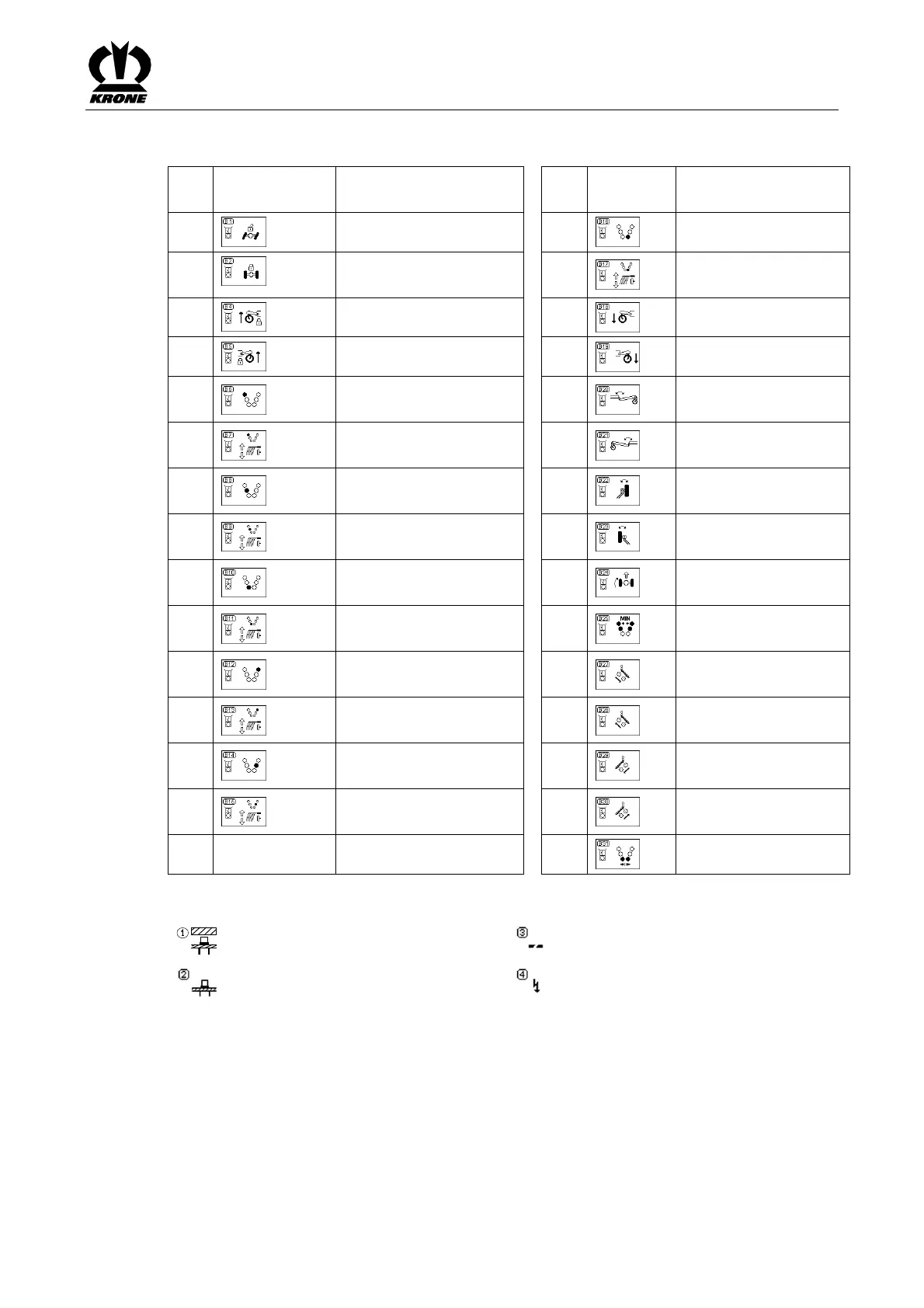

No. Sensor icon Description No. Sensor
icon
Description
B1 Steering on B16 Rear right (RR) rotor
B2 Steering off B17 Rear right (RR) rotor
height
B4 Left wheel retracted B18 Left wheel extended
B5 Right wheel retracted B19 Right wheel extended
B6 Front left (FL) rotor B20 Position of right
outrigger
B7 Front left (FL) rotor
height
B21 Position of left
outrigger
B8 Middle left (ML) rotor B22 Right guide wheel
setting
B9 Rotor height middle (ML) B23 Left guide wheel
setting
B10 Rear left (RL) rotor B24 Wheel sensor acreage
counter
B11 Rear left (RL) rotor
height
B25 Carriage at front
B12 Front right (FR) rotor B27 Left parallel
adjustment
B13 Front right (FR) rotor
height
B28 Left parallel
adjustment
B14 Middle right (MR) rotor B29 Right parallel
adjustment
B15 Middle right (MR) rotor
height
B30 Right parallel
adjustment
B31 Swath width
