KRONE operation terminal Gamma
82
Pos: 16.24.41 / BA/Info-Center/S ensoren/Diagnos e analoge Se nsoren @ 19\m od_12381322633 69_78.doc @ 214965 @ @ 1
Diagnostics – analogue sensors
Pos: 16.24.42 / BA/Info-Center/Sc hwader/Bedie neinheit - Komf ort/SW 2000/Hau ptmenüs/Haup tmenü 4 Ser vice/Diagnose a naloge Sensoren Bild SW 2000 @ 9 0\mod_132324 9380092_78.d oc @ 769894 @ @ 1
0
R 1
U 1
B31
5.1V
4.0V
1.4V
1.1V
1.2V 1.2V 4.6V
1
2
3
4
0
R 1
U 1
B31
5.1V
4.0V
1.4V
1.1V
1.2V 1.2V 4.6V
2
6
5
4
SW2000059_1

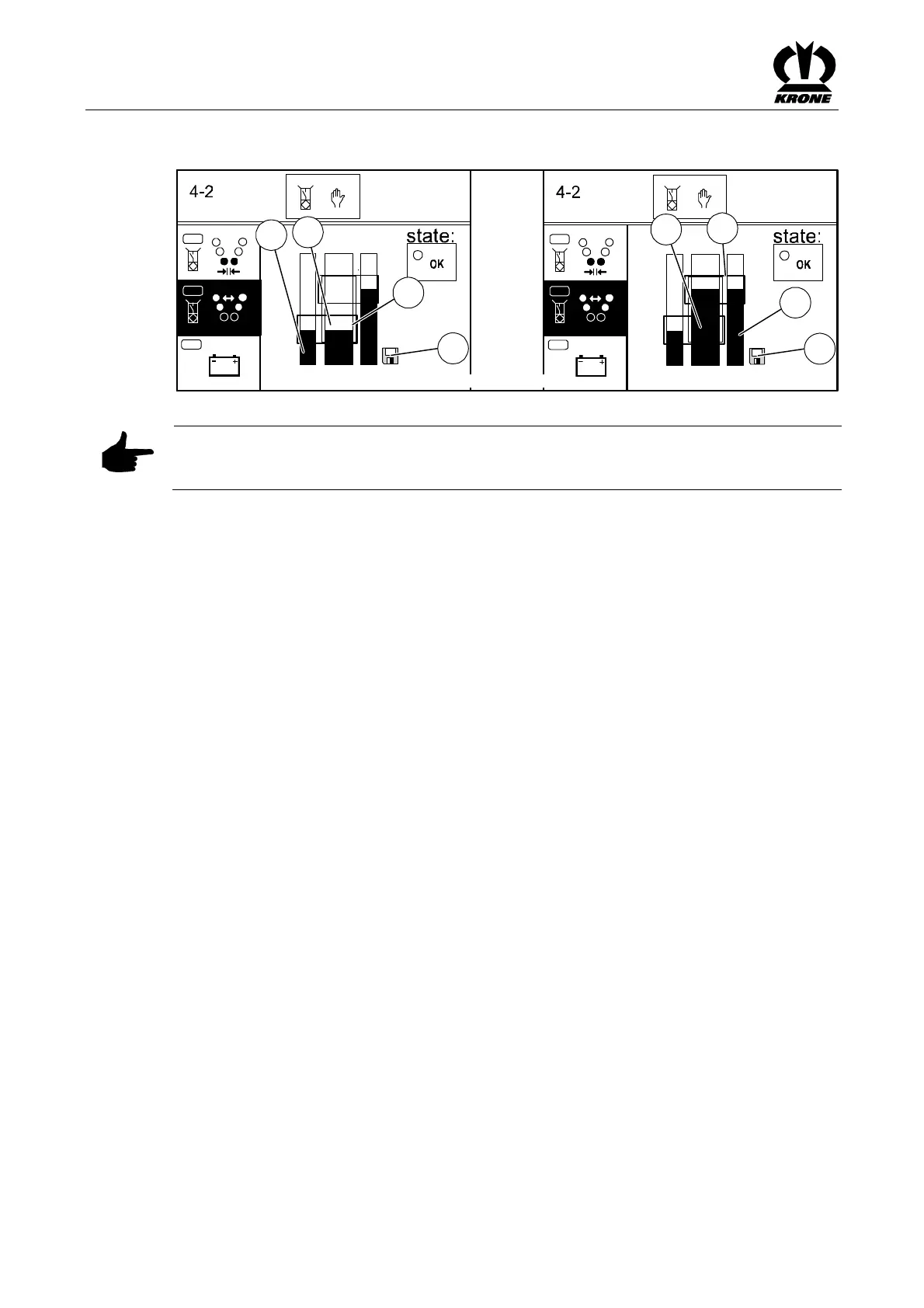

Fig. 55
Pos: 16.24.43 / BA/Info-Center/CC -ISOBUS-Ter minal/CCI-Sw adro/Swadro 2000/H auptmenüs/H auptmenü 4 Ser vice/Drehwin kelsensor Arbeitsbr eite prüfen und Einstellen @ 90\mod_13230 92929618_78.doc @ 767760 @ @ 1
Note
The machine must be in the transport position before you test and adjust the angle of rotation
sensor.
The angle of rotation sensor for detecting the minimum/maximum working width is pre-set in the
factory. In the transport position of the machine, the two bars (1, 2) must be inside the marked
area (3) of the bar display.
Due to heavy loads and the setting of components, subsequent calibration may be necessary if
the bar (2) is outside the marked area (3) of the bar display in the transport position of the
machine.
Pos: 16.24.44 / BA/Info-Center/Sc hwader/Bedie neinheit - Komf ort/SW 2000/Hau ptmenüs/Haup tmenü 4 Ser vice/Drehwinkelsen sor minimale Arbeitsbreite @ 90\ mod_132325 0107326_78.doc @ 769950 @ @ 1
Setting the minimum working width (narrow bar on left)
• The machine is in transport position
• Switch off the engine, remove the ignition key, and secure the tractor and machine from
rolling away.
• Slightly loosen the angle of rotation sensor and align it in the oblong hole until the bar (2)
is inside the market area (3).
• Screw the angle of rotation sensors tightly into place.
• Press and hold the rotary potentiometer until the icon (4) appears in the display.
The left bar (1) copies the value of the middle bar (2) and the icon (4) extinguishes in the
display.
