Troubleshooting > Adjustment/Maintenance
Chart Example
4
Enter the appropriate value.

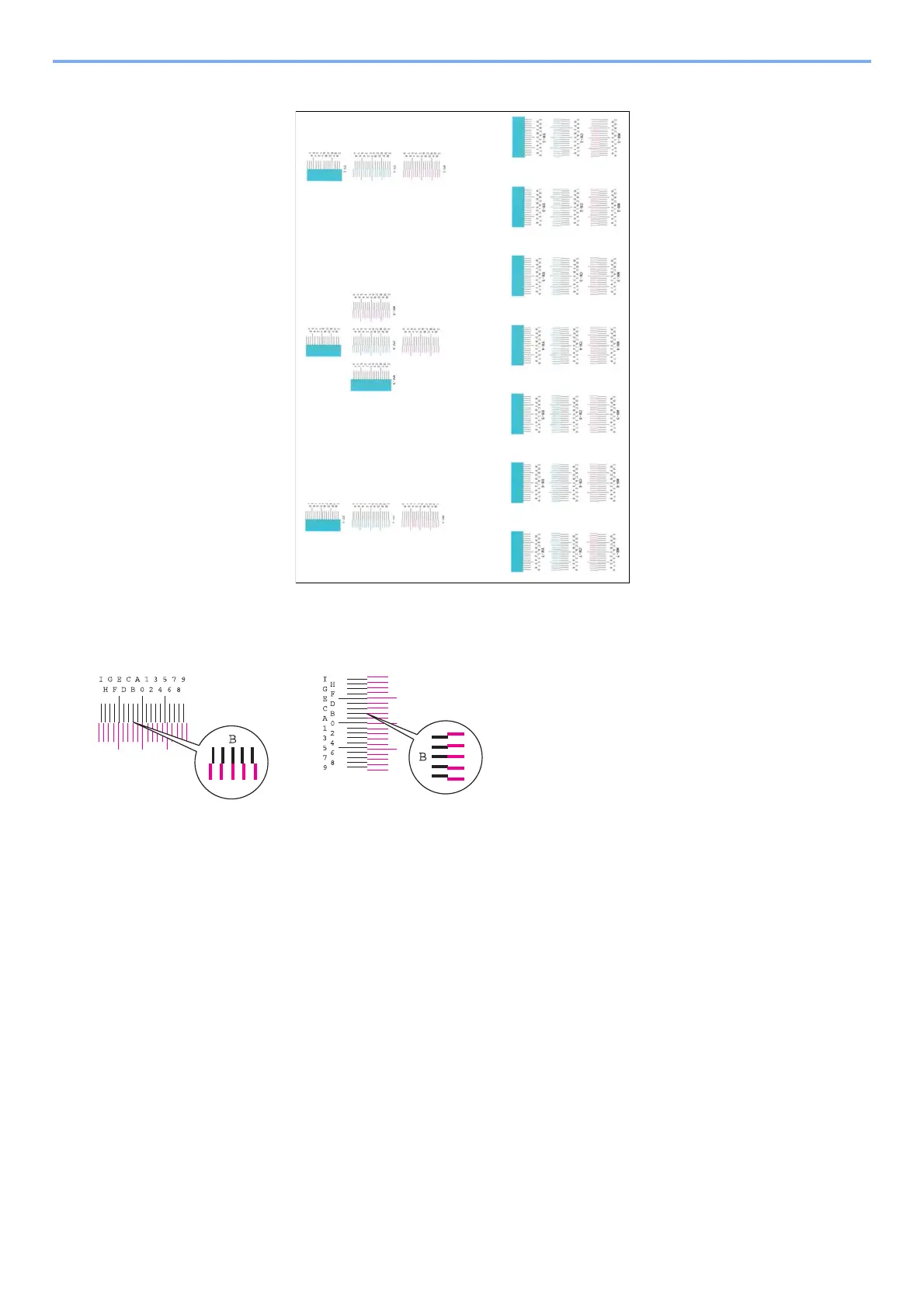

1 Find the location on each chart where 2 lines most closely match. If this is the 0 position, registration for that
color is not required. For the illustration, B is the appropriate value.
From charts H-1 to H-7, read the values from H-1 to H-7.
From charts V-1/3/5, read only the values from V-3 (center).
2 Select [Color Registration] [OK].
3 Select [Start] of the chart to be corrected.
4 Select [+] or [-] to enter the values read from the chart. Select [OK].
Select [+] to increase the value from 0 to 9. To decrease, select [-].
By selecting [-], the value changes from 0 to alphabetic letters, going from A to I. To move in the reverse direction, select
[+]. To decrease, select [-].
You cannot use the numeric keys to enter these values.
5 Repeat steps 3 and 4 to enter the registration values for each chart. Select [OK]
6 Select [Start] after all values have been entered. Color registration begins.
7 Select [OK] after color registration is complete.
