11-36
Troubleshooting > Clearing Paper Jams
4

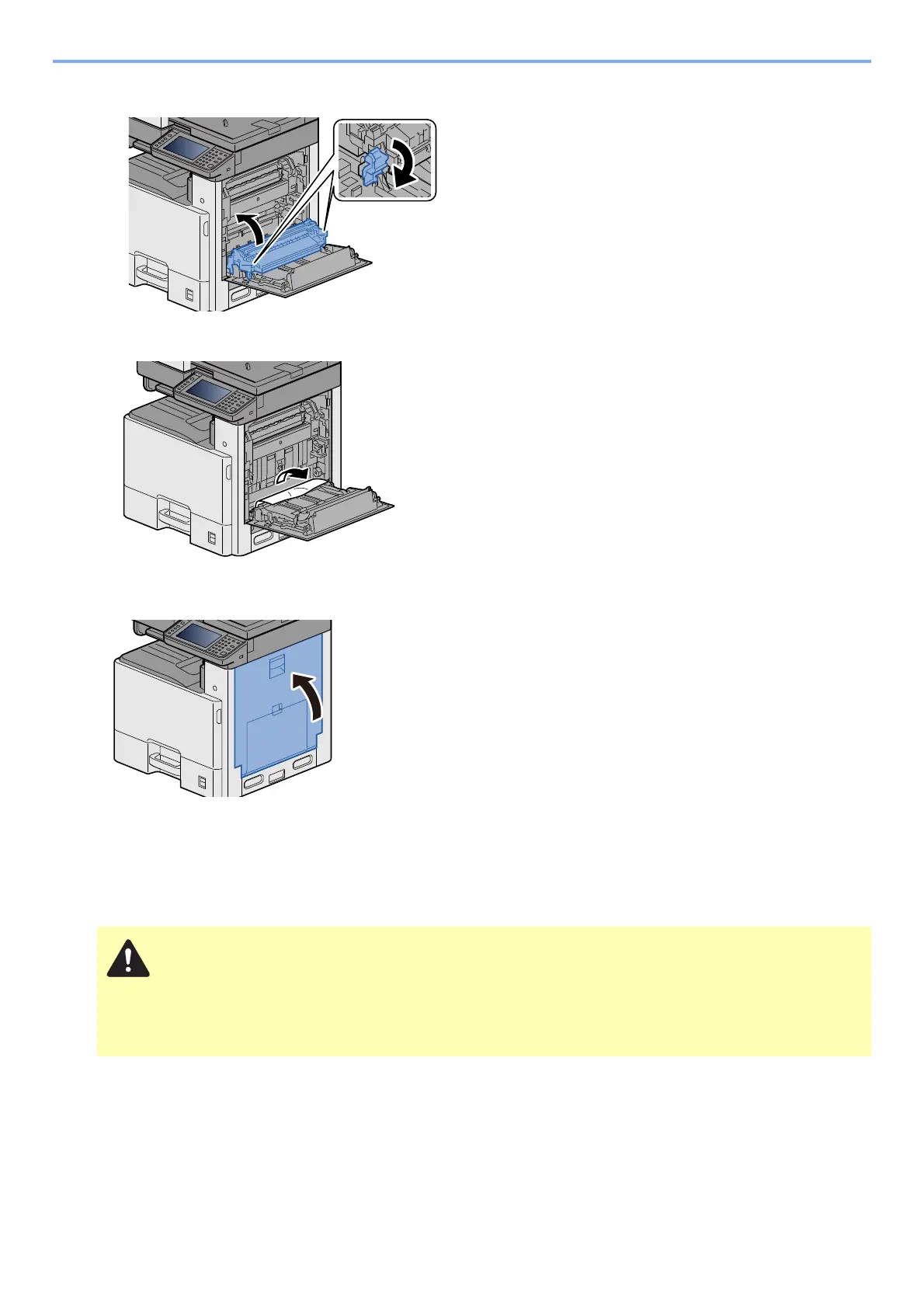

Open the duplex unit.
5
Remove any jammed paper.
6
Push Right Cover 1.
Remove any jammed paper in Cassette 1, 2 and 3
Here, we'll explain the procedures for Cassette 1, as an example.
• Do not reuse jammed papers.
• If the paper tears during removal, be sure to remove any loose scraps of paper from inside the
machine. Scraps of paper left in the machine could cause subsequent jamming.
To Next Page
