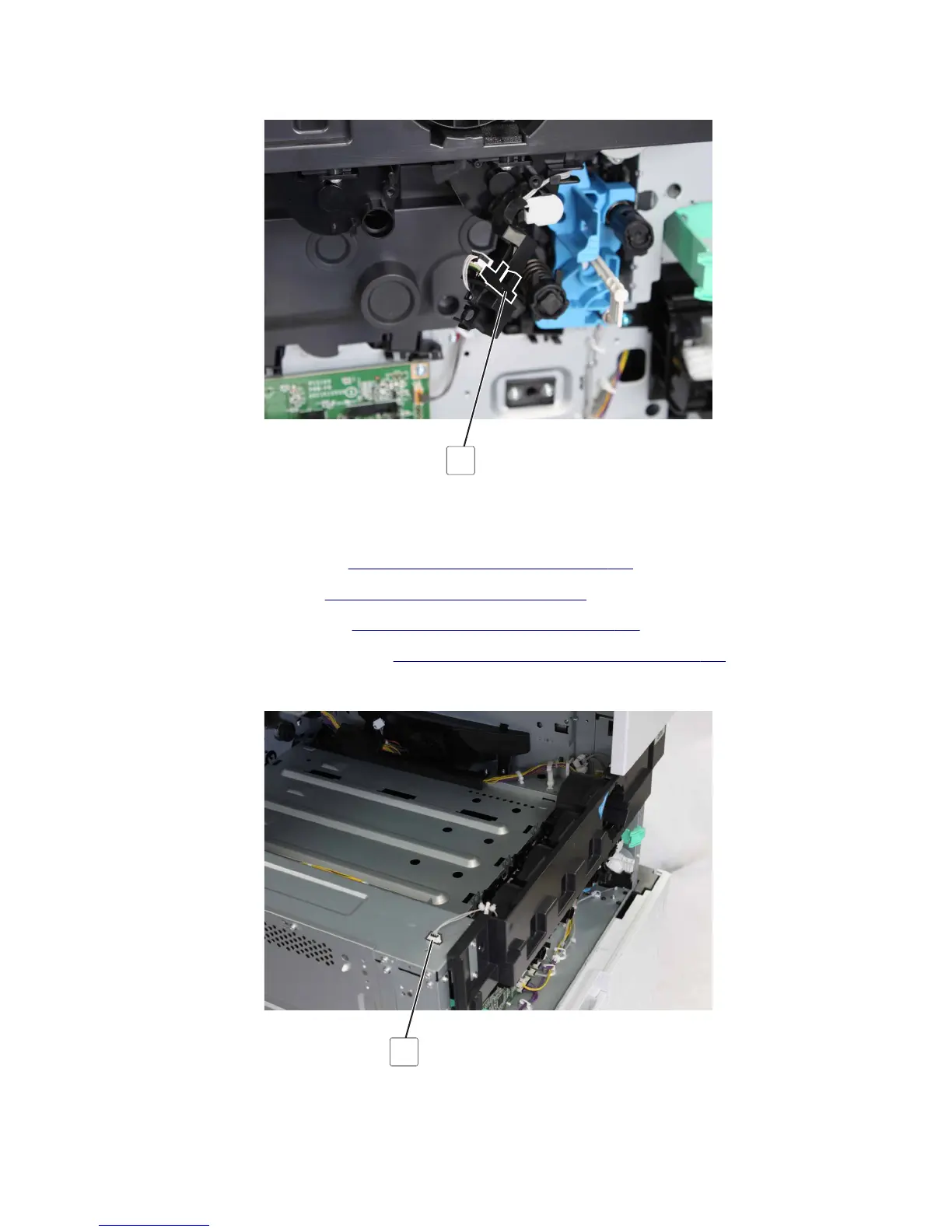

5 Disconnect the cable, and then remove the sensor (B).
B
Toner agitator removal
1 Remove the standard bin base. See “Standard bin base removal” on page 389.
2 Remove the top front door. See “Top front door removal” on page 327.
3 Remove the bottom front door. See “Bottom front door removal” on page 327.
4 Remove the waste toner door mount. See “Waste toner door mount removal” on page 328.
5 Disconnect the cable (A).
A
7421
Repair information
335
