Lexmark MX912dxe - ADF Separator Pad Removal; ADF Separator Roller Removal

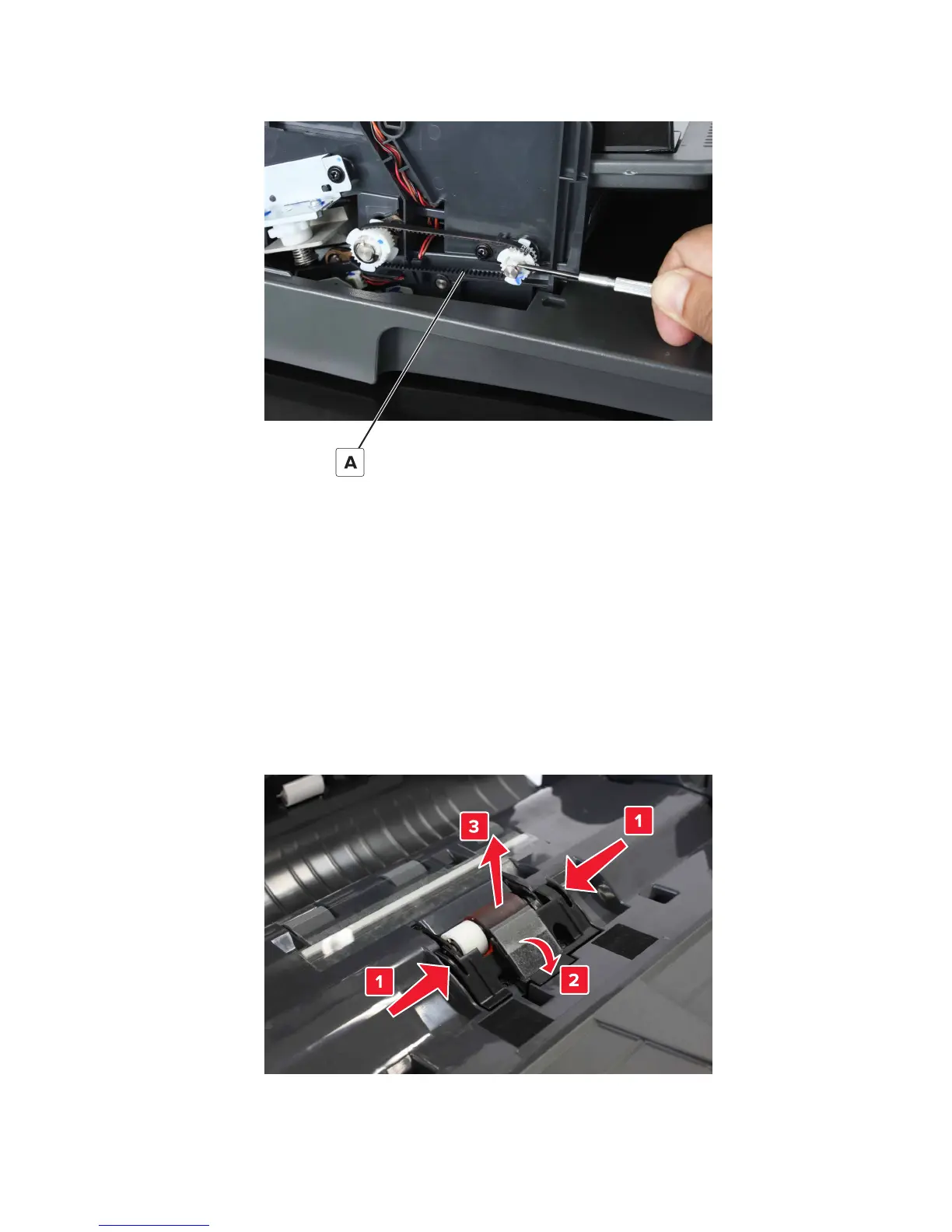

3 Pull out the gear, and then remove the belt (A).
ADF separator pad removal
1 Open the ADF top cover.
2 Remove the ADF separator pad.
ADF separator roller removal
1 Open the ADF top cover.
2 Press the sides of the ADF separator pad housing, and then pull to release it.
3 Remove the ADF separator roller.
7421
Repair information
412
