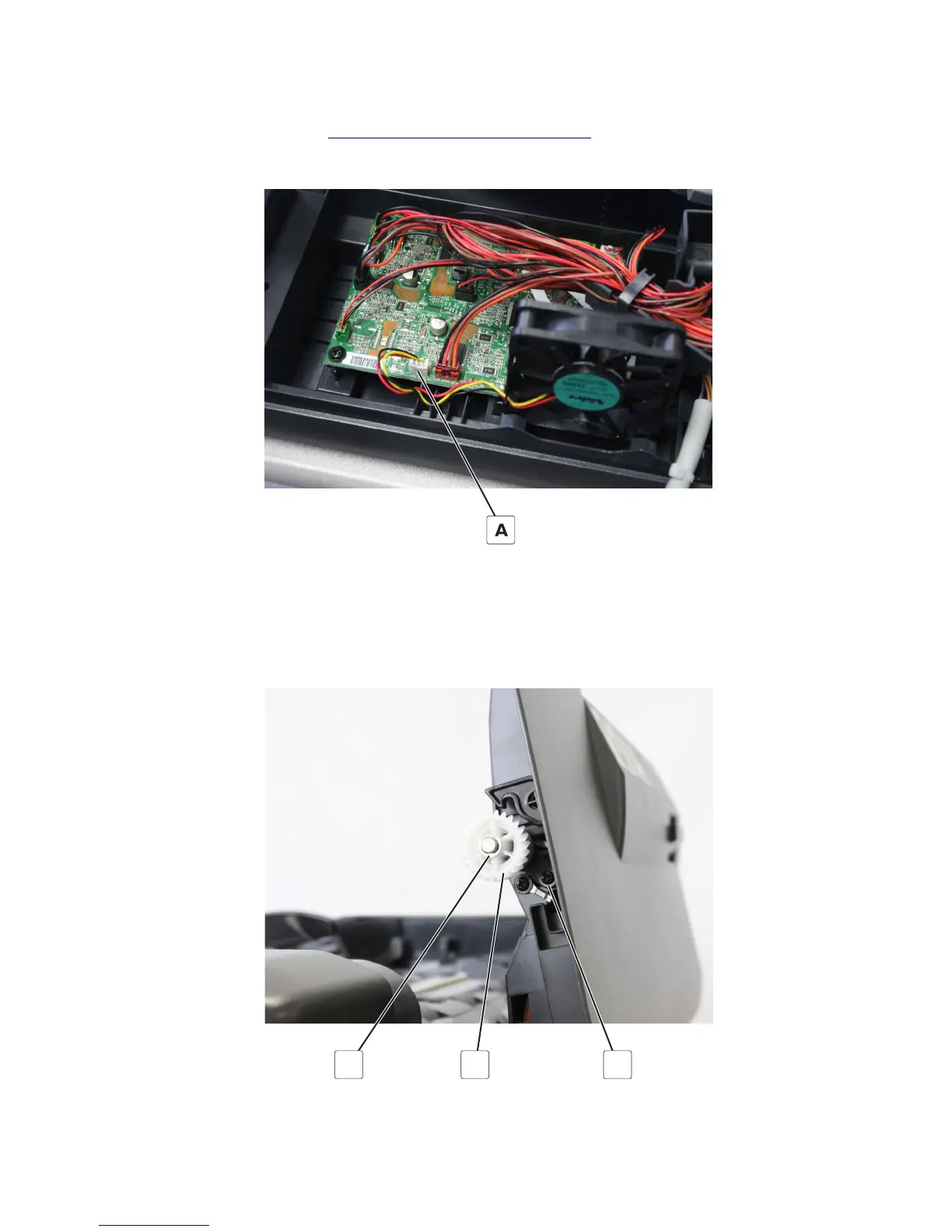

ADF fan removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 410.
2 Disconnect the cable (A), and then remove the fan.
ADF feed and pick roller assembly removal
1 Open the ADF top cover.
2 Remove the clip (A), gear (B), and screw (C).
A B C
3 Remove the pin (D) and bushing (E).
7421
Repair information
398
