Lexmark MX912dxe - Page 397

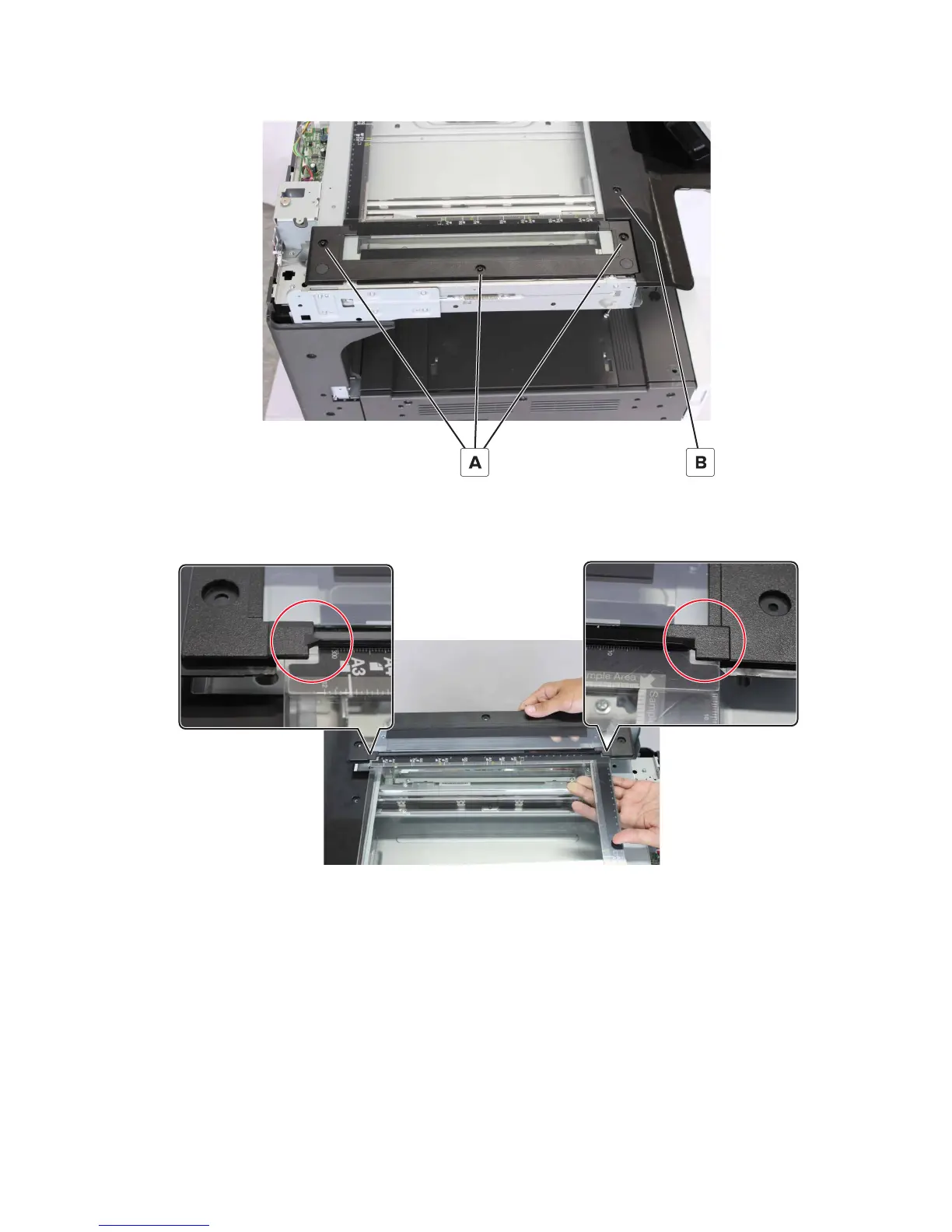

5 Remove the three screws (A), and then remove the screw (B).
6 Slightly raise the scanner front cover, and then remove the ADF duplex scan glass.
Installation note: Make sure that the ADF duplex scan glass and scanner glass are properly aligned.
7421
Repair information
397
