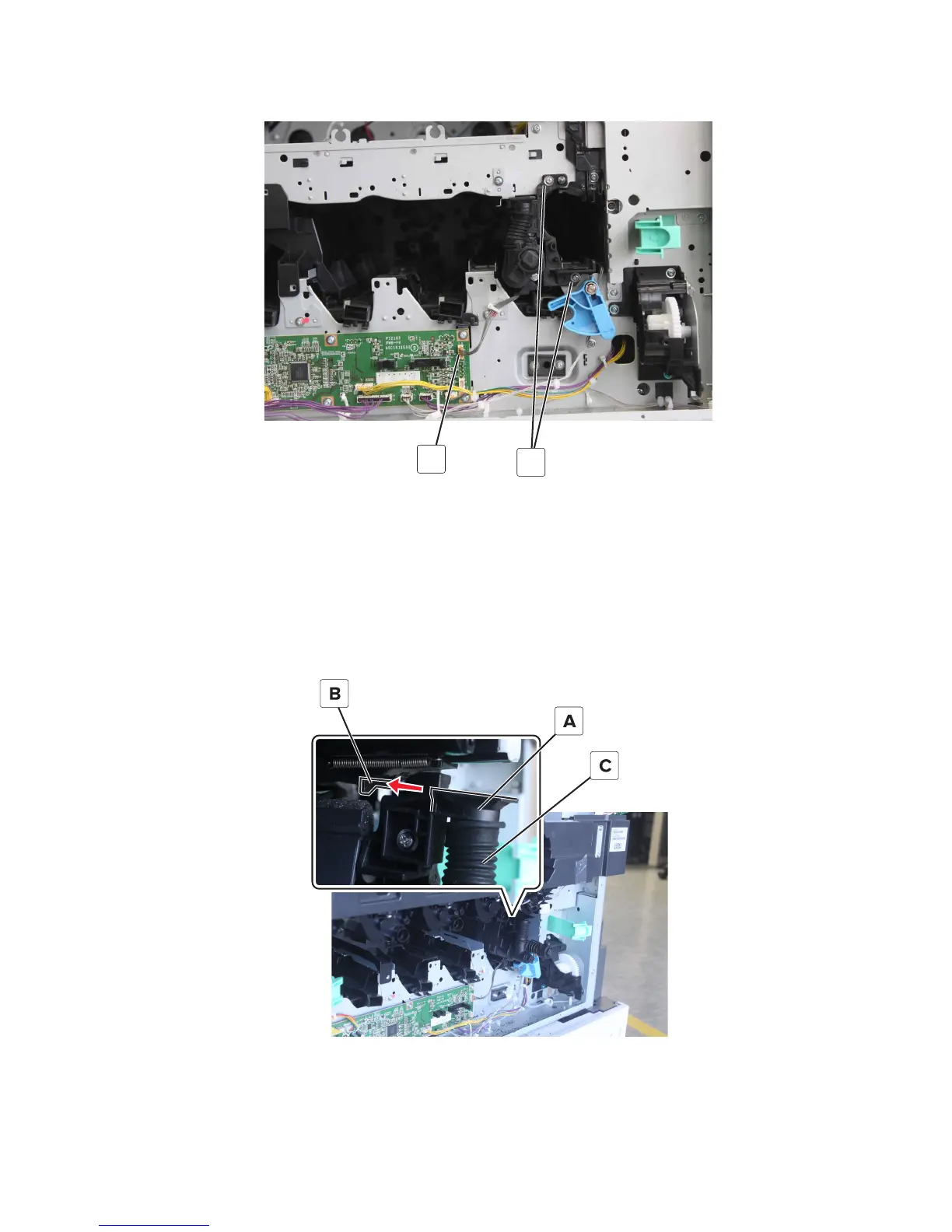

6 Disconnect the cable (A), remove the two screws (B) and then remove the unit.
B
A
Installation warning: If the following notes are not implemented, then the toner may leak or get stuck. Toner supply
failure will cause a blank print or low toner error.
Installation notes:
• Do not install the developer unit if the toner agitator is not yet installed.
• Make sure that the developer unit funnel (A) pushes the toner agitator valve (B). The valve opens to supply the
toner to the funnel.
• Make sure that the rubber intake (C) is properly installed.
