Operating elements for driving
3.2 Short description of the operating elements
3 - 52 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

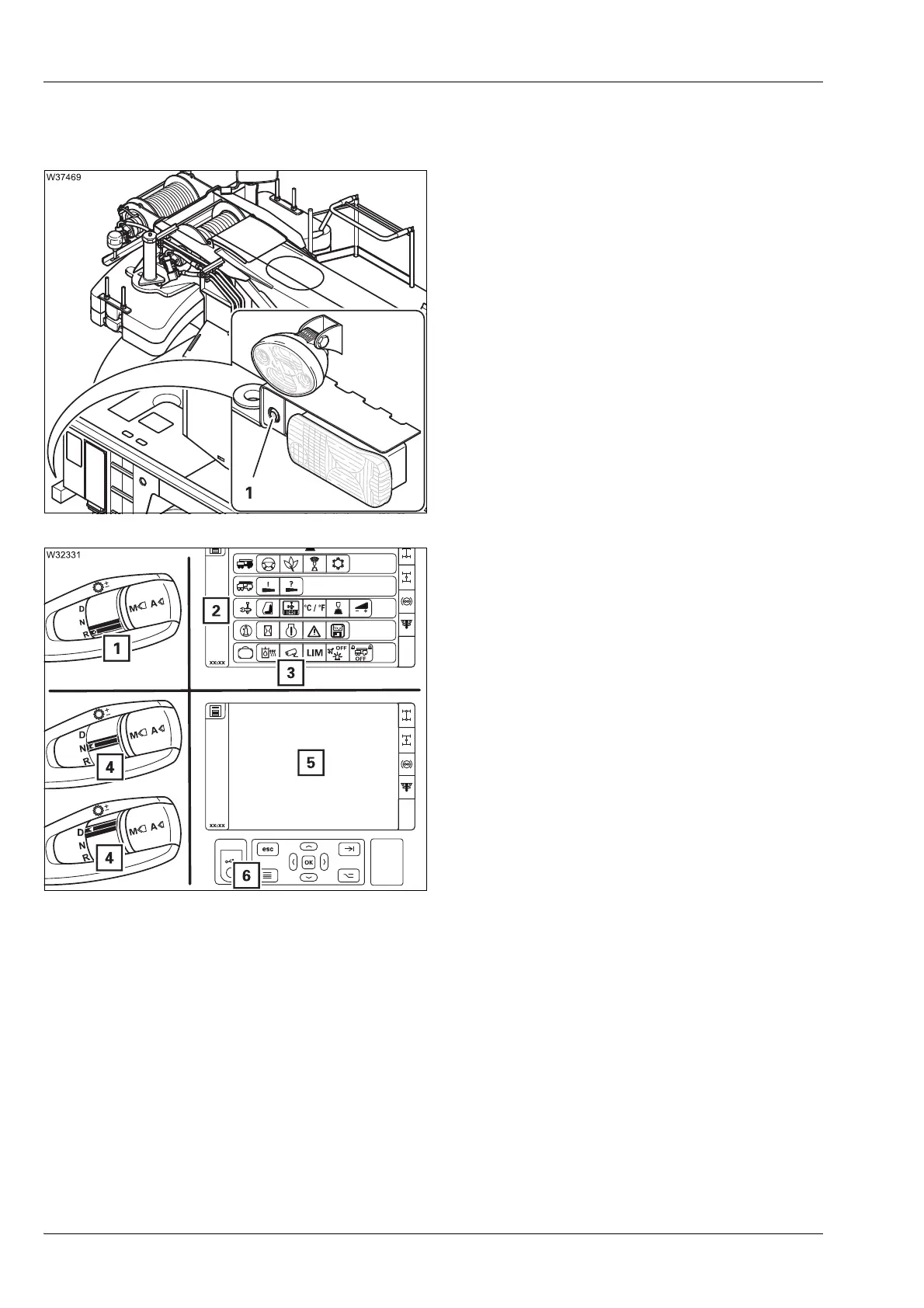

3.2.9 Reverse camera
The reverse camera (1) displays the area
behind the truck crane on the
CCS display in
the driver's cab.
Switching on
– Automatically, when reversing (1),
– Manual – select symbol (3) and confirm
The display (5) shows the area behind the
truck crane
Switching off
– Automatically, when driving forwards or in
neutral position (4),
– Manual – press button (6)
The display (2) shows the CCS menu
