Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 736 en 11 - 39
GMK4090
xx.xx.xxxx
11.4.4 Confirm the rigging mode and lifting capacity table
You must confirm the rigging mode together with the display lifting capac-
ity table before commencing crane operation. Some parts of the procedure
are different, depending on the entered slewing range type.
Slewing range
type
Standard
If the MAXbase slewing range type has been entered; Ã p. 11 - 41.
• Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
• Check:
• Correct any incorrectly entered rigging
modes if necessary.

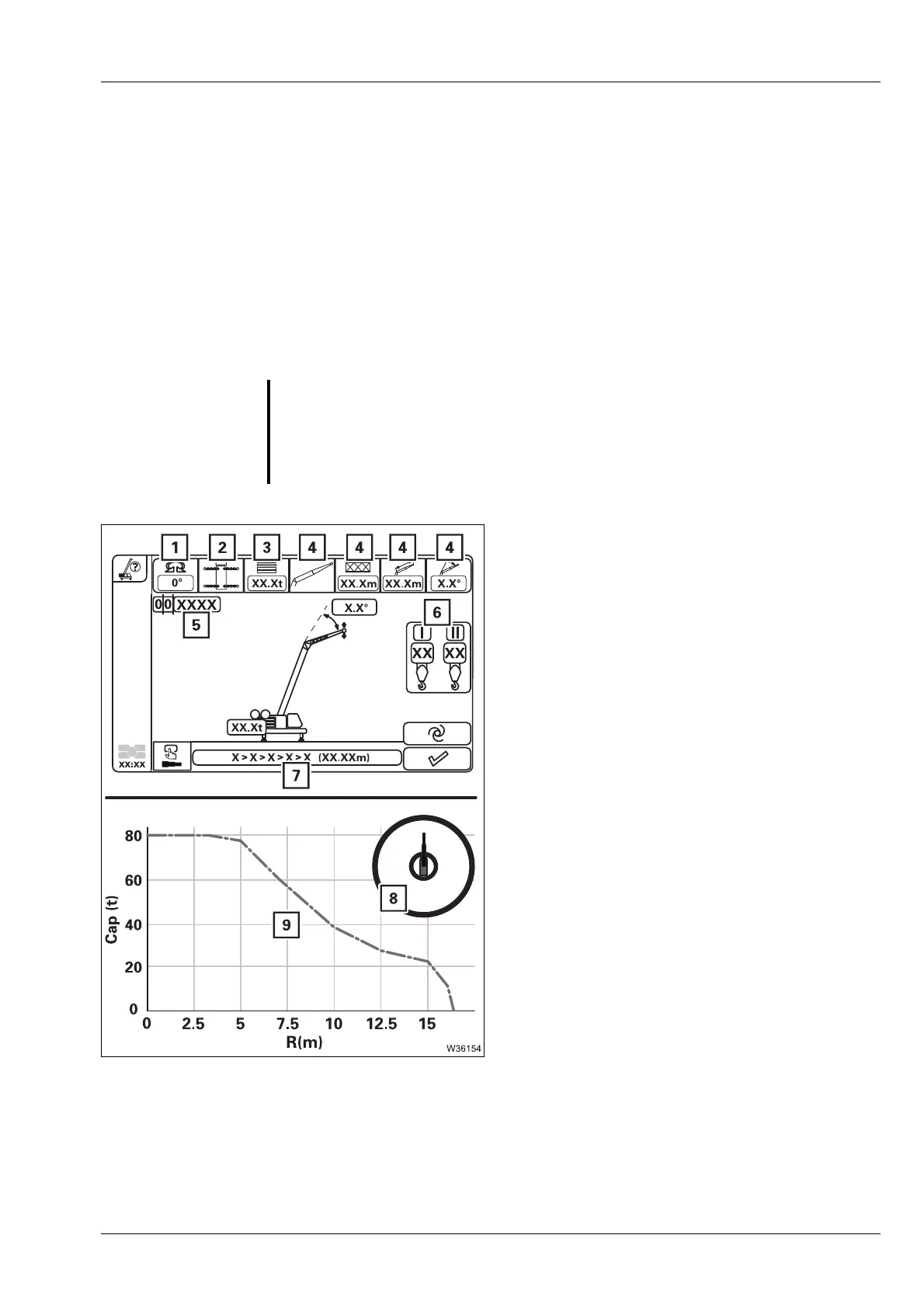

The displayed lifting capacity table (9) applies
to the RCL code (5) in the corresponding slew-
ing range (8) and for the preselected telescope
status (7).
If the actual rigging mode is displayed cor-
rectly and the planned operation can be per-
formed within the displayed working range (8)
then you can confirm the rigging mode.
s
G
Risk of accidents due to an incorrectly set RCL
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the
RCL will not correspond to the actually
permissible lifting capacity according to the
Lifting capacity table.
Overloading and accidents will certainly be the result.
–1 The slewing range for the planned
job
–2 The rigged outrigger span
–3 The rigged counterweight
–4 The rigged boom system
–6 The number of reeved hoist rope
lines
