Crane operation
11.3 MAXbase slewing range type
Operating manual 3 302 736 en 11 - 21
GMK4090
xx.xx.xxxx
11.3 MAXbase slewing range type
This slewing range type is available in addition to the Standard slewing
range type;
à Permissible slewing ranges and working positions, p. 11 - 19. You
must decide between the two slewing range types when entering the rig-
ging mode.
Lifting capacity tables with different, variable outrigger spans are available
for the
MAXbase slewing range type. These additional lifting capacity tables
are supplied in digital form with the truck crane and can be shown as a dia-
gram on the display in the crane cab.

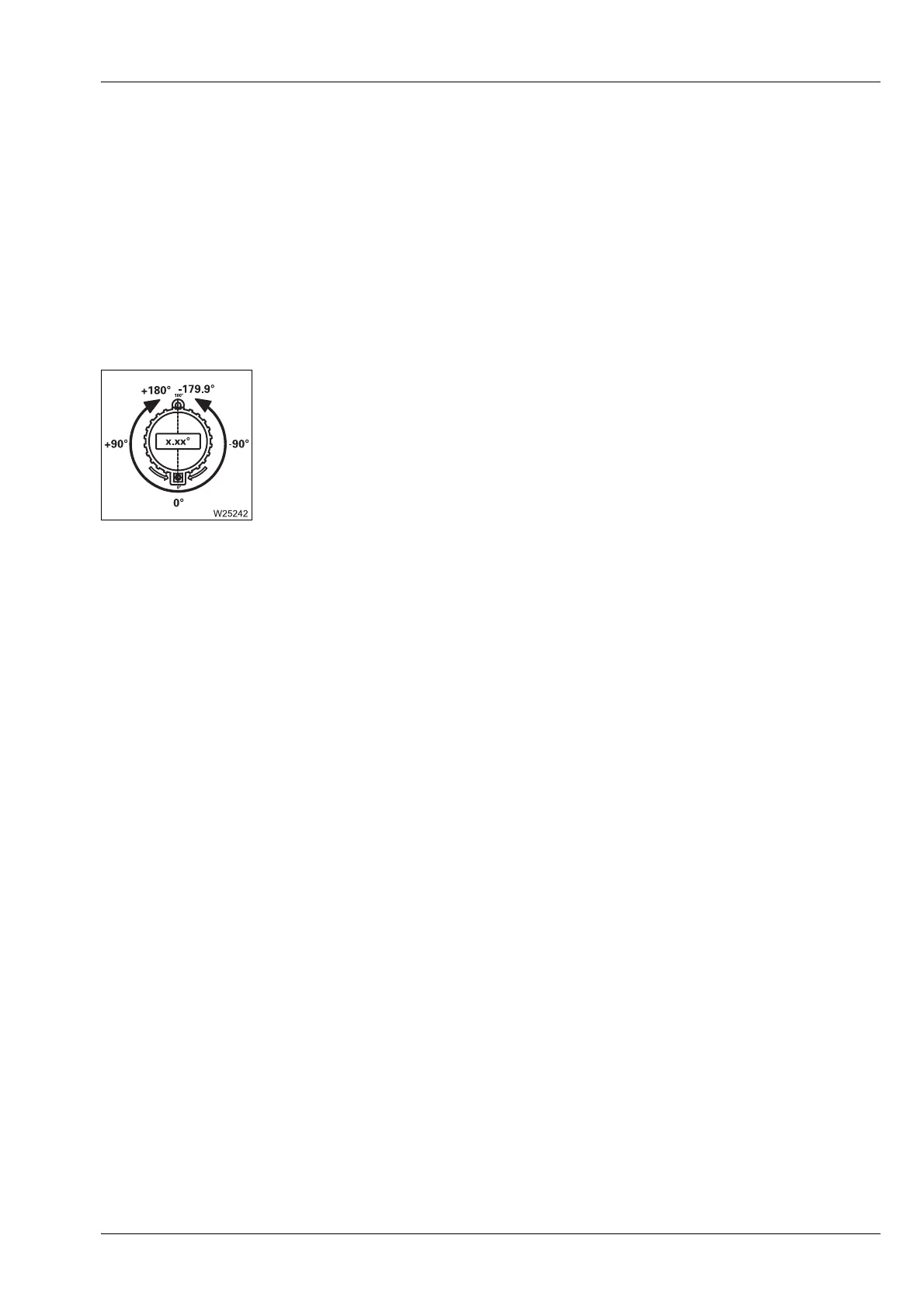

The designation of the slewing angle always relates to the starting point 0°
to the rear. A full turn from this working position is divided into two semi-
circles.
– When slewing clockwise the slewing angle is displayed as a positive
value (0° to +180.0°).
– When slewing anticlockwise the slewing angle is displayed as a negative
value (0° to -179.9°).
