Operating elements for crane operation
9.2 Short description of the operating elements
9 - 126 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

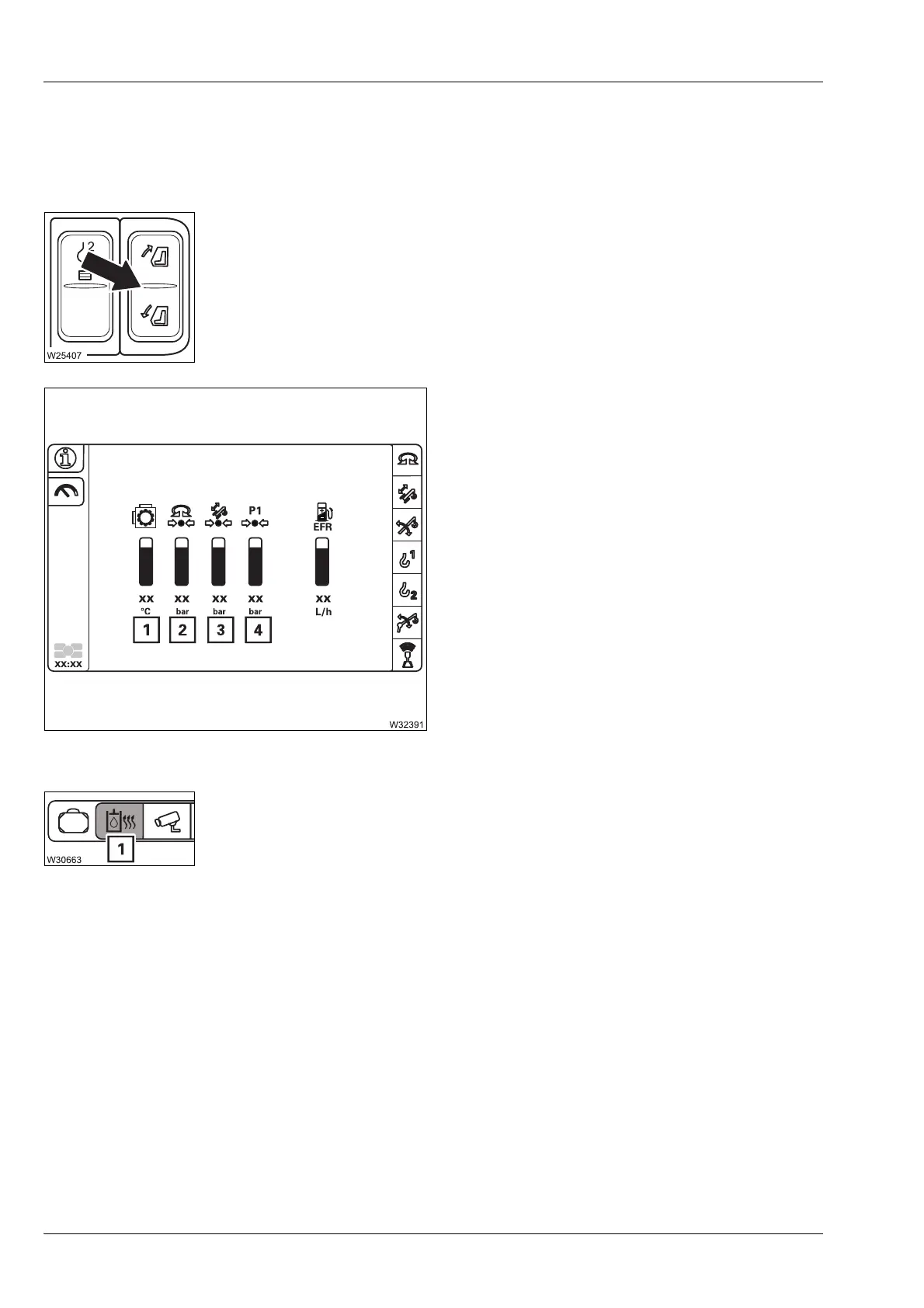

9.2.19 Hydraulic system
Inclining the crane cab
In Information menu
Current pressure in bar for movements of:
Preheating the hydraulic oil
– Press down: Incline forward
– Press up: Incline back
à p. 11 - 121
1 Angle gear oil temperature
2 Slewing gear
3 Telescoping mechanism
4 –Hoist
– Derricking gear
– Counterweight hoist unit
– inclining the crane cab
– Locking units
– Switch on: Select symbol (1) and confirm – symbol is red
– Switch off: Select symbol (1) and confirm – symbol is grey
à p. 11 - 13
