11.4 Operation of the rated capacity limiter
11 - 38 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

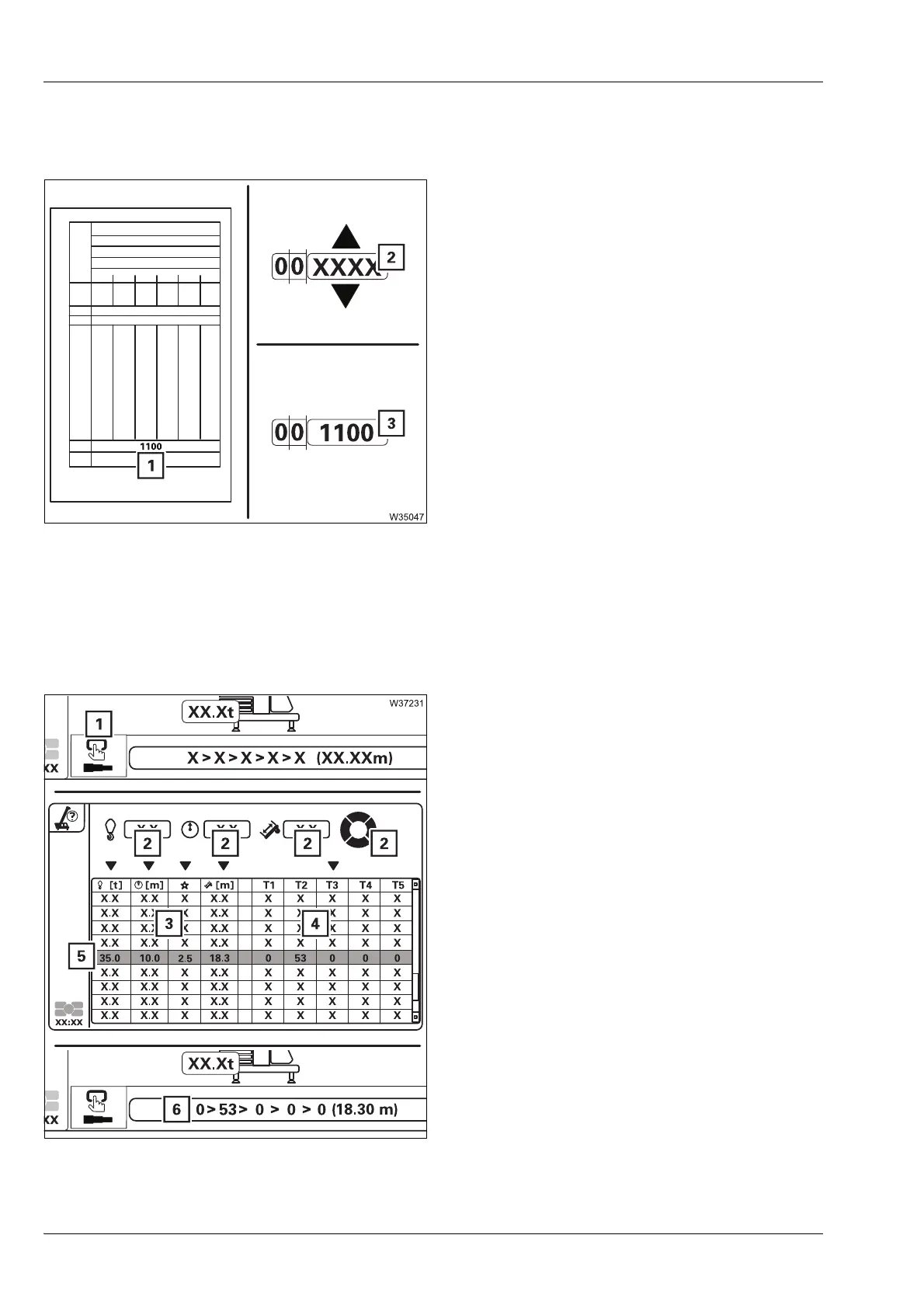

Entering the RCL
code
You must enter the RCL code for the rigging mode according to the Lifting
capacity table
.
• Refer to the Lifting capacity table for the cur-
rent rigging mode. The corresponding RCL
code (1) is specified at the bottom of the
table (e.g. 1100).
• Select and confirm the symbol (2).
• Select the necessary RCL code (3), e.g. 1100.
• Confirm the selection.
The other displays will show the correspond-
ing rigging mode.
11.4.3 Pre-selecting telescoping
•
First enter the current rigging mode.
• Select and confirm the symbol (1).
The
Pre-selection telescoping menu opens.
• Enter the desired parameter (2); à p. 9 - 42.
The table shows all permissible telescop-
ings (4) and the associated parameter (3) for
the entered rigging mode and entered
parameter.
• Select and confirm the line with the desired
telescope status, for example, line (5).
The
Enter rigging mode/telescope status menu
opens – the preselected telescope status (6)
is displayed.
