Manitowoc GROVE GMK4090 - Outriggers Control Units

Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 736 en 9 - 83
GMK4090
xx.xx.xxxx

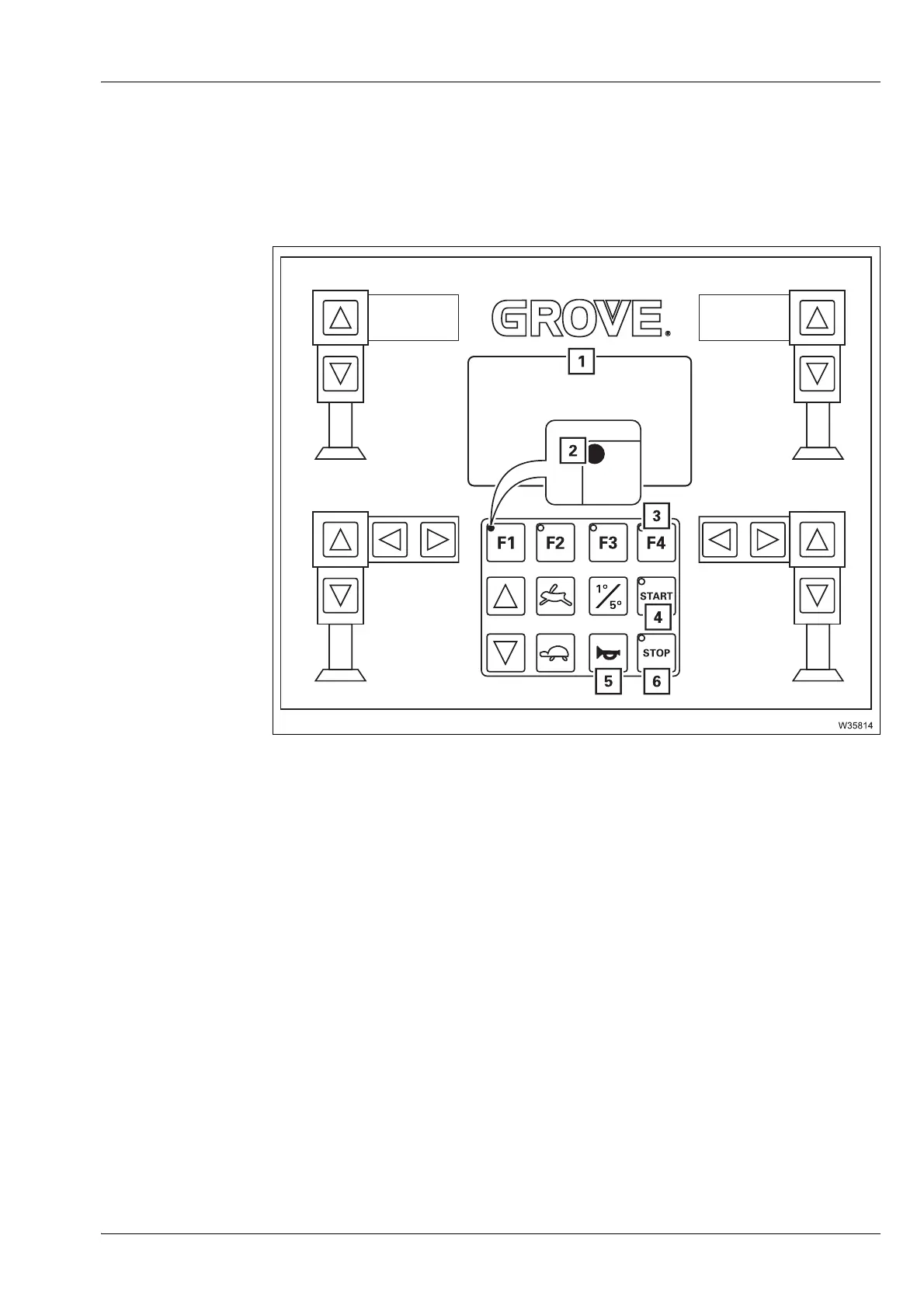

9.1.23 Outriggers control units
Menu-
independent
buttons
This function of the illustrated buttons is the same in all the menus. This
function of the other buttons depends on the opened menu.
s
1 Outrigger display à p. 9 - 101
2 Position lights for indicator lamps
à p. 9 - 101
3 Menu selection
– Outrigger menu
– Raise axle menu
à p. 9 - 101
à p. 9 - 84
à p. 9 - 86
4 START engine
à p. 12 - 29
5 Horn
à p. 9 - 102
6 STOP engine
à p. 12 - 29
