Manitowoc GROVE GMK4090 - Hand-Held Control

Operating elements for crane operation
9.1 Overview of the operating elements
9 - 82 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

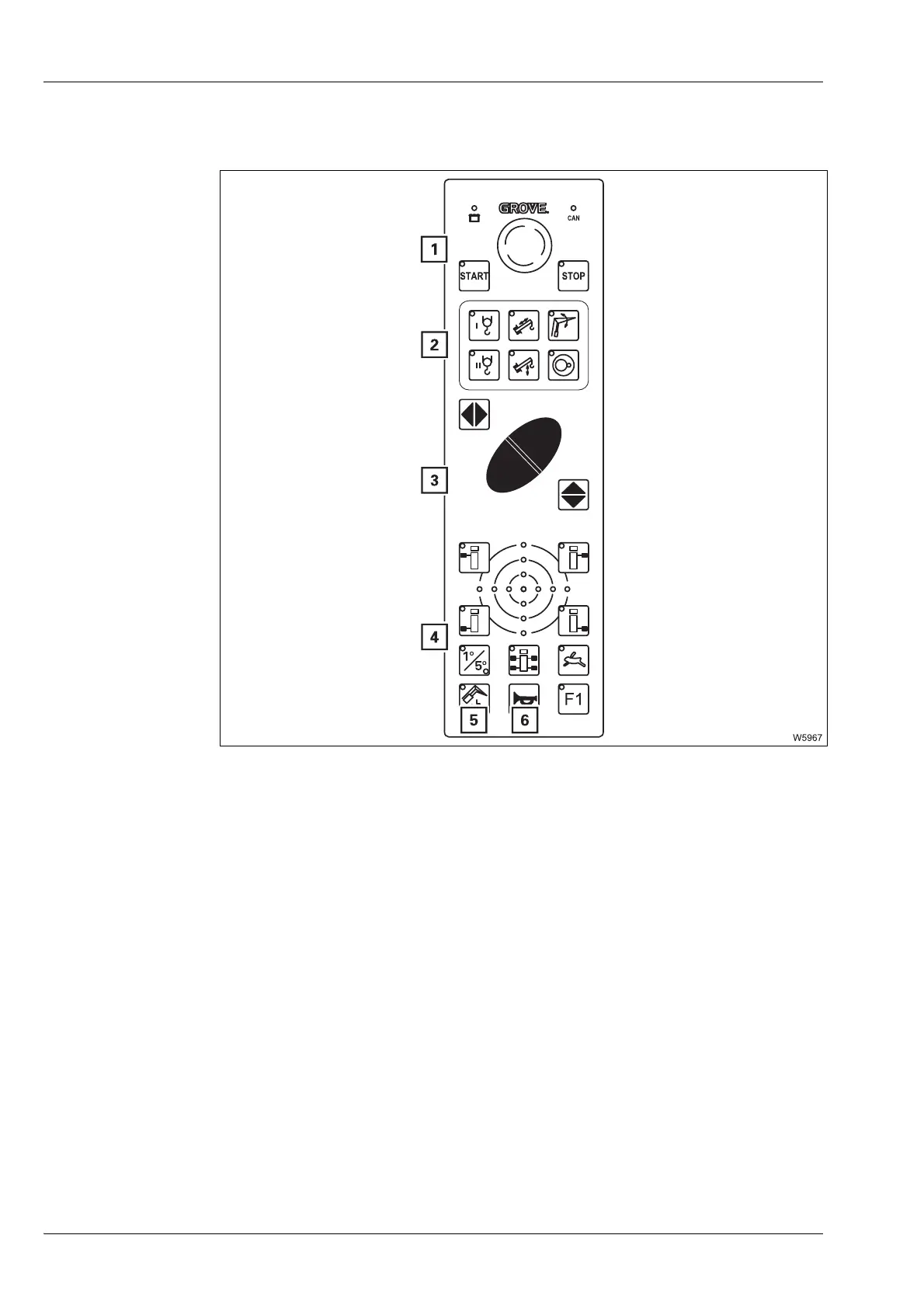

9.1.22 Hand-held control
H
Required connections for the various movements; à p. 9 - 148.
1 Engine control panel
à p. 9 - 149
2 Pre-select emergency operation
1)
à p. 9 - 150
3 Function buttons
à p. 9 - 150
4 No function
5 No function
6 Horn
à p. 9 - 149
1)
Additional equipment
