Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
Operating manual 3 302 736 en 9 - 159
GMK4090
xx.xx.xxxx
9.3.3 Final drive

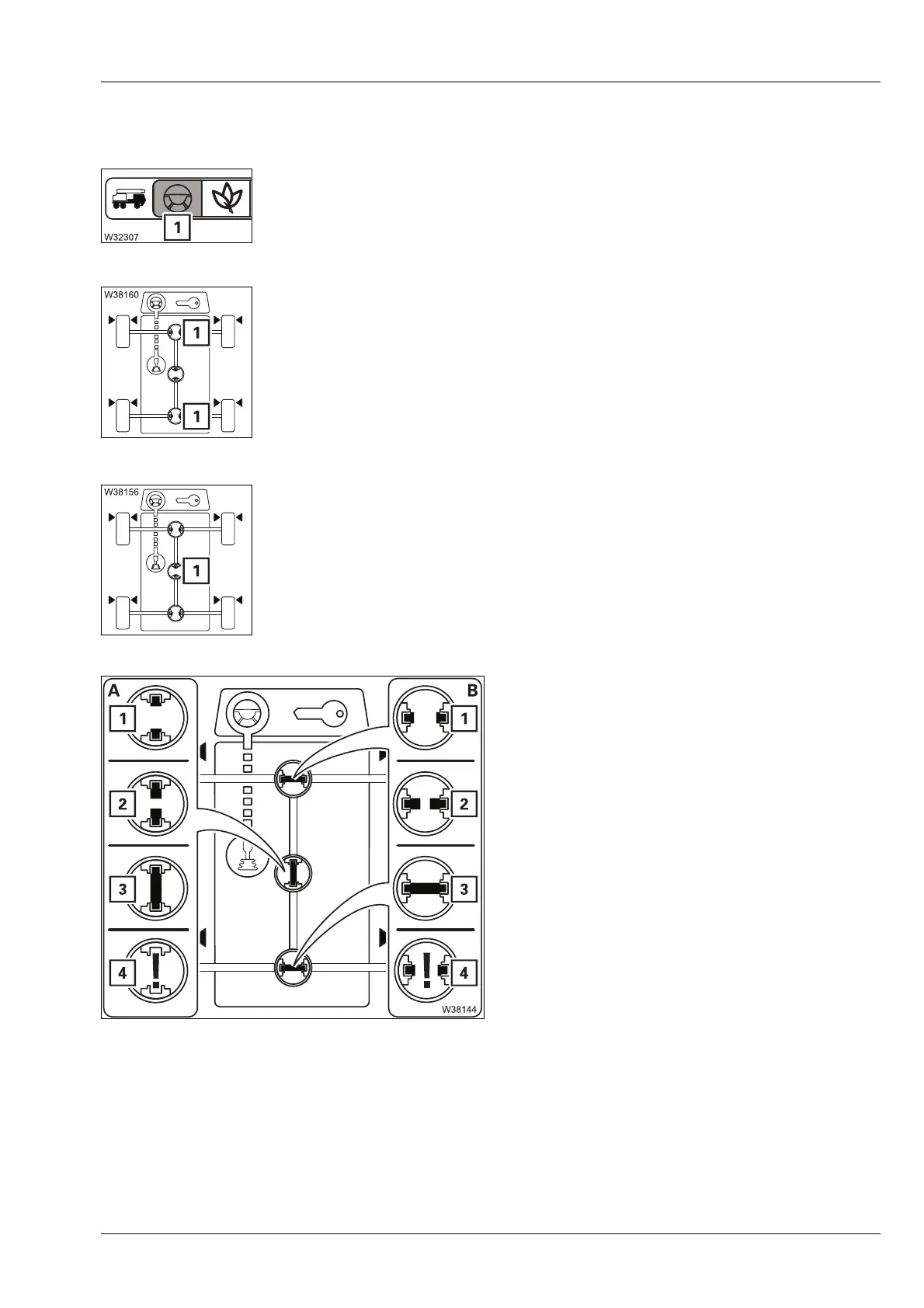

Driving menu
Transverse differential locks on/off
When a symbol (1) is selected all transverse differential locks are switched
on or off.
Longitudinal differential lock on/off
(A) – longitudinal differential lock display
(B) – transverse differential lock display
The current status is shown using different
symbols:
Opening: Select symbol (1) and confirm – menu is opened
– Switch on: Select symbol (1) and confirm – symbol is red
– Switch off: Select symbol (1) and confirm – symbol is green
– Switch on: Select symbol (1) and confirm – symbol is red
– Switch off: Select symbol (1) and confirm – symbol is green
1 Green – locks off
2Red – locks on
3 Yellow – intermediate position
4 Violet – error
à p. 13 - 28
