12.11.7 Slinging points for personal protective equipment

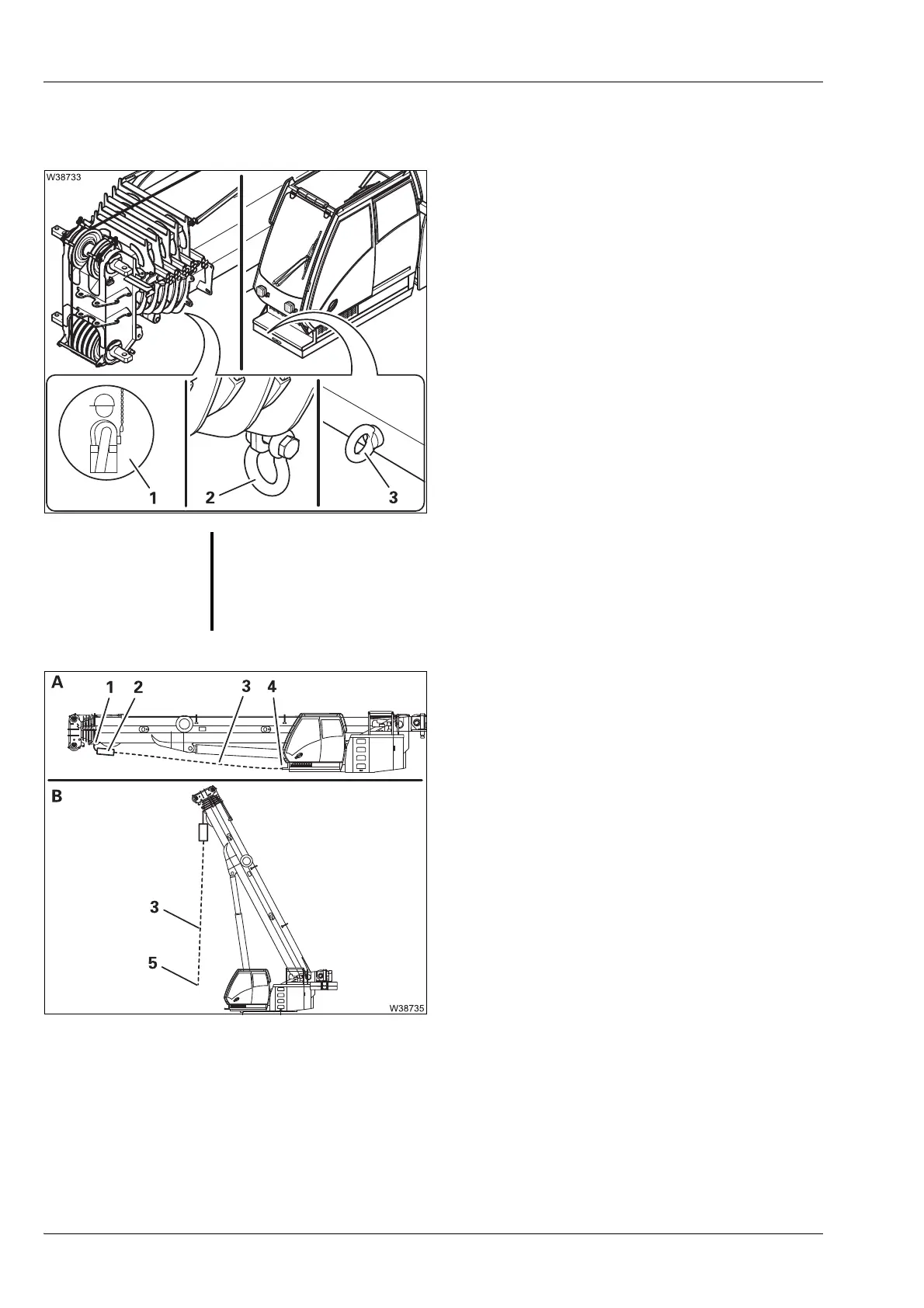

The labels (1) mark the approved slinging
points for personal safety equipment, for
example, slinging point (2).
The slinging options (2) and (3) are provided
for the attachement of a fall protection device.
• Always use a slinging point (2) or (3) for
securing yourself and your personal safety
equipment or use an authorised fall protec-
tion device.
Fall protection device
• (A) – Lower the main boom.
• Sling the fall protection device (2) at the
point (1).
• Guide the safety cable (3) to point (4) and
fasten it.
• Make sure that the abseiling function on the
fall arrester is activated.
• (B) – Raise the main boom and switch all
power units off.
• Now connect the safety cable (3) to your per-
sonal safety equipment – at the point (5).
S
Risk of damage to the crane cab
Always use a fall protection device with activated abseiling function for the
slinging point on the main boom.
This will prevent damage to the crane cab when raising.
