Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 736 en 9 - 143
GMK4090
xx.xx.xxxx
9.2.23 Electrical system

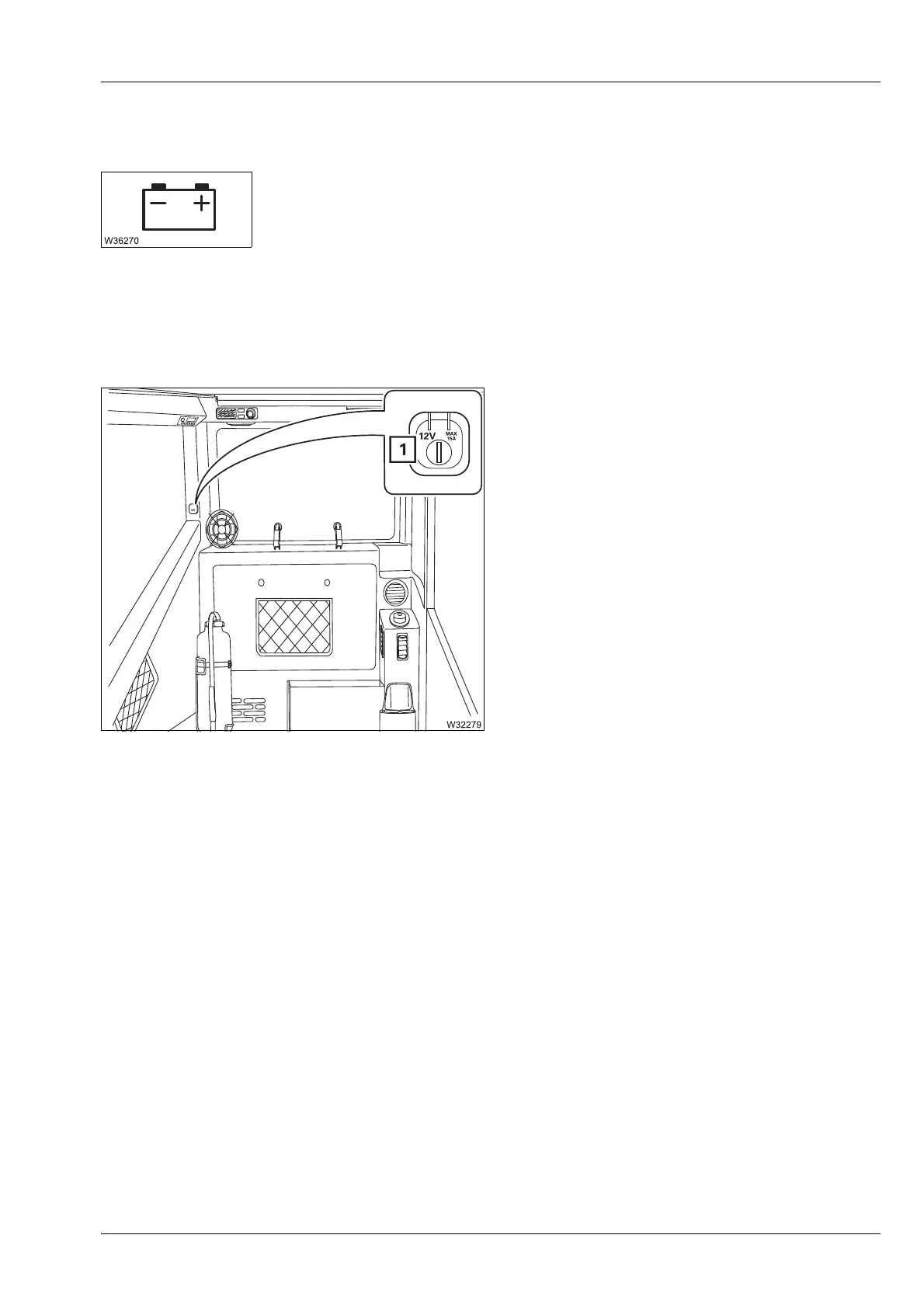

Voltage monitoring warning
Sockets 12 V
Only connect electrical devices with the
matching specification to the socket.
– Display symbol: Engine on – power failure – switch off engine
–Go out: Engine on – no fault
à p. 10 - 8
1 Socket 12 V/max. 15 A
