Operating elements for crane operation
9.2 Short description of the operating elements
9 - 118 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

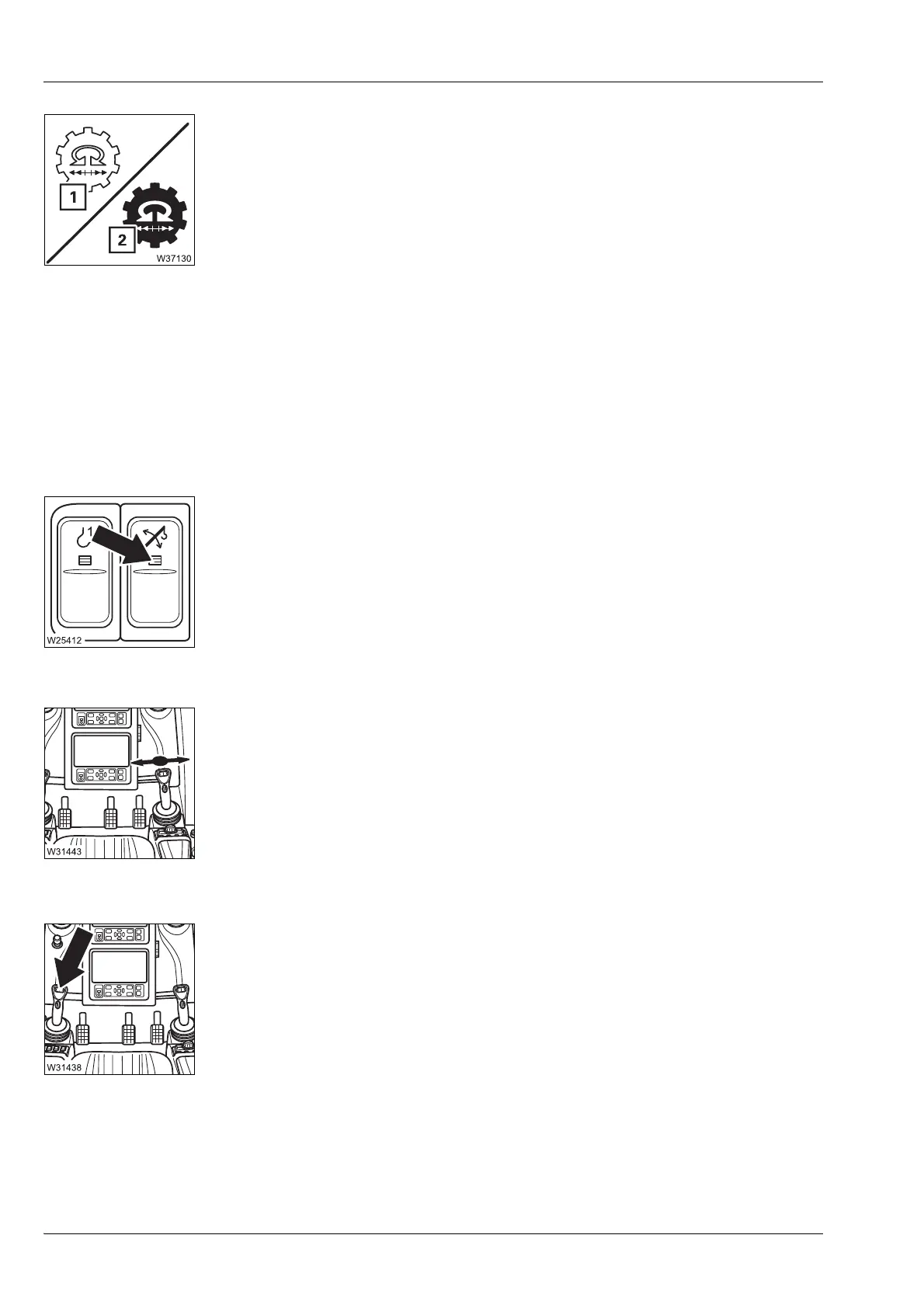

Slewing speed reduction on/off
9.2.17 Derricking gear
à Derricking gear, p. 11 - 84.
Control panels
Derricking gear on/off
There is a lamp in the button.
Right control lever
Derricking gear/telescoping mechanism high-speed mode on/off
The parking brake is engaged.
Switch off: Select symbol (1) and confirm – Symbol (2) is displayed
Switch on: Select symbol (2) and confirm – Symbol (1) is displayed
à Switching the reduction of slewing speed on and off, p. 11 - 119
– Press once: – Lamp bright – derricking gear on
Power units with the same control lever configuration off
– Lamp dim – derricking gear off
à p. 11 - 84
–To the left: Raise – lift main boom
– To the right: Lower – lower main boom
à p. 11 - 85
–Left: High-speed mode on, off when released
– Once to the
right:
High-speed mode on – continuous operation
– Once to the right
or
once to the left:
High-speed mode off
à p. 11 - 111
