Rigging work
12.7 Outriggers – Overview – MAXbase slewing range type
Operating manual 3 302 736 en 12 - 35
GMK4090
xx.xx.xxxx

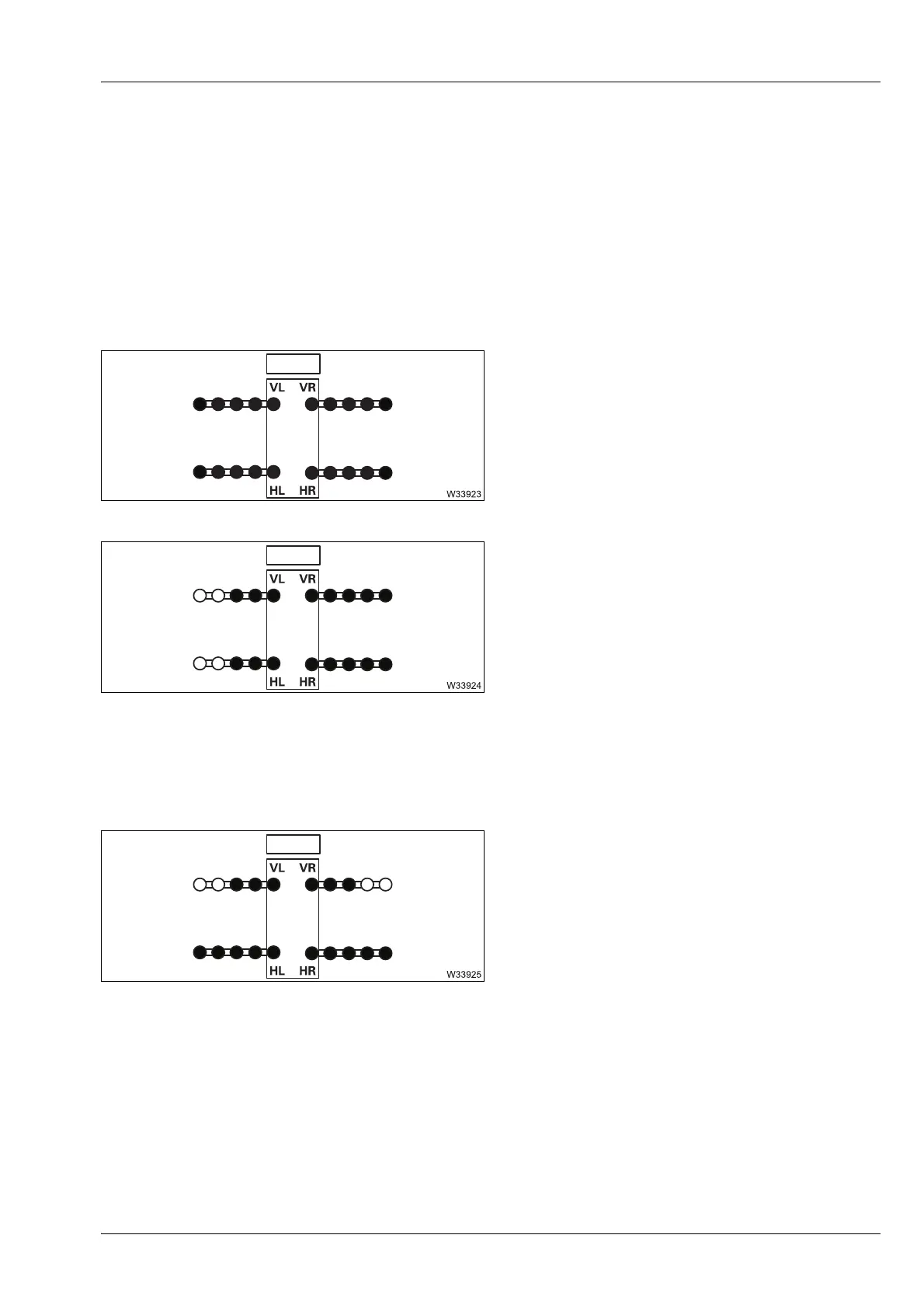

12.7.2 Representation in the lifting capacity tables
The outrigger span is always specified in this form
Outrigger length xxxx – outrigger width yyyyy
– The value xxxx is always 8.660 m (28.4 ft).
– The value yyyy depends on the type of outrigger span.
A distinction is made between four types.
Symmetrical
The outrigger width is the same for all outrig-
ger beams. The overall width is entered once.
For example
Right / Left
The outrigger span is the same at the left side
and the same at the right side – but different
between the right and left sides.
The individual widths for the front and for the
rear are entered. For example
Front / rear
The outrigger width is the same at the front
and the same at the rear – but different
between the front and rear.
The overall width is entered for the front and
for the rear. For example
s
Outrigger
width
7.200 m (23.6 ft)
Front outrigger
span
3.600 + 2.650 m
(11.8 + 8.7 ft)
Rear outrigger
span
3.600 + 2.650 m
(11.8 + 8.7 ft)
Front outrigger
span
5.300 m (17.4 ft)
Rear outrigger
span
7.200 m (23.6 ft)
