Rigging work
12.7 Outriggers – Overview – MAXbase slewing range type
12 - 34 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

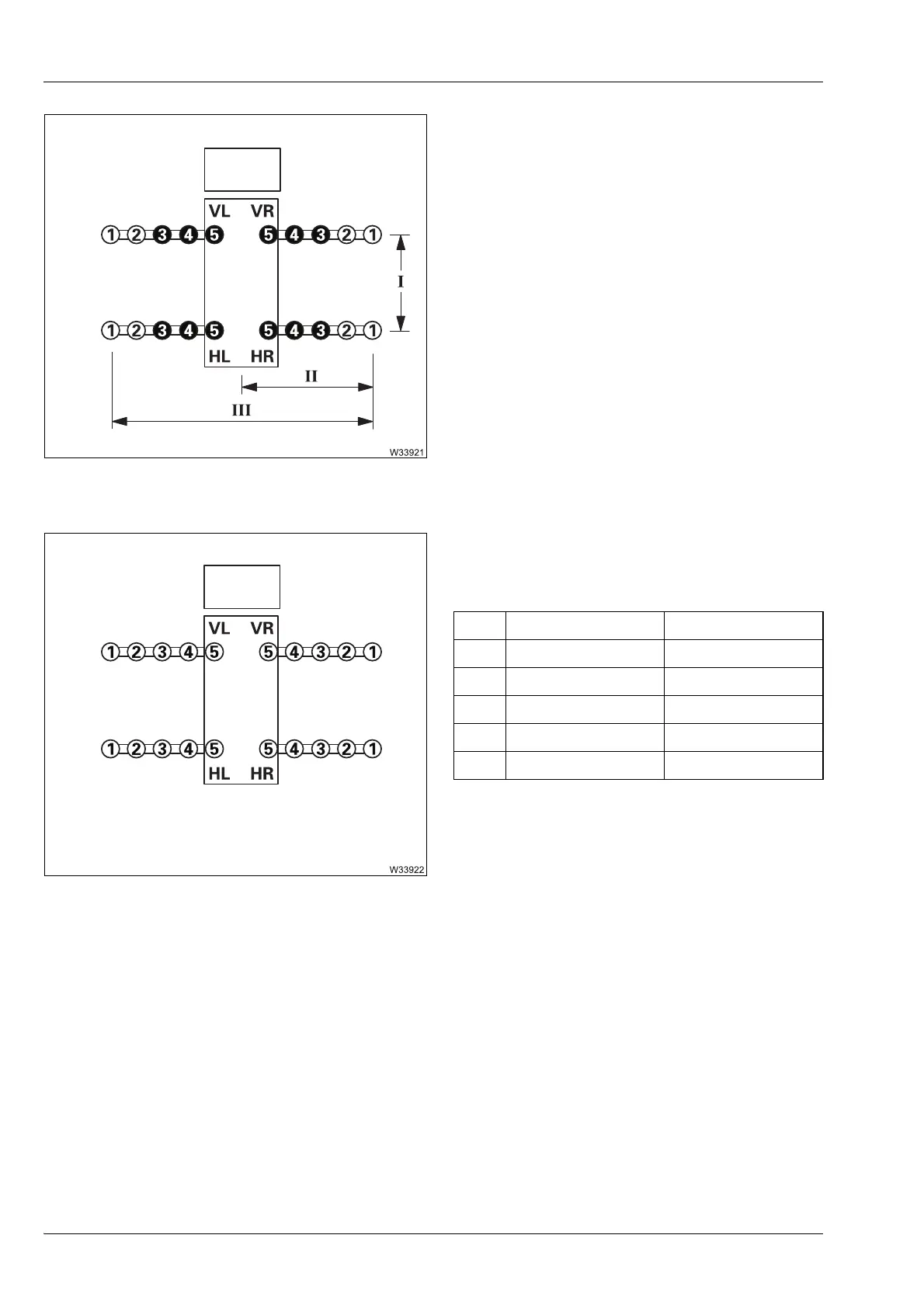

Representation of the outrigger spans
– Outrigger length
The outrigger length (
I) has a fixed value of
8.660 m (28.4 ft) and never changes.
– Outrigger width
All possible outrigger spans (1) to (5) are
always shown for all outrigger beams.
For defining an outrigger span, the rigged
outrigger spans (and all smaller spans) are
shown in black and the illustration shows
the outrigger widths (3).
The outrigger width is specified as an indi-
vidual width (
II) or overall width (III)
depending on the type of the outrigger
span.
Individual widths / Overall widths
The tables show the values for the outrigger
widths (1) to (5).
The individual widths and overall widths are
specified in metres (feet) in the lifting capacity
tables.
Individual widths Overall widths
1 3.600 m (11.8 ft) 7.200 m (23.6 ft)
2 3.125 m (10.3 ft) 6.250 m (20.5 ft)
3 2.650 m (8.7 ft) 5.300 m (17.4 ft)
4 1.900 m (6.2 ft) 3.800 m (12.4 ft)
5 1.170 m (3.8 ft) 2.340 m (7.6 ft)
