Crane operation
11.7 Working range limiter
Operating manual 3 302 736 en 11 - 135
GMK4090
xx.xx.xxxx
In the CCS Start
menu
The RCL shows the limited working range for the Slewing angle and Working
radius
monitoring systems.

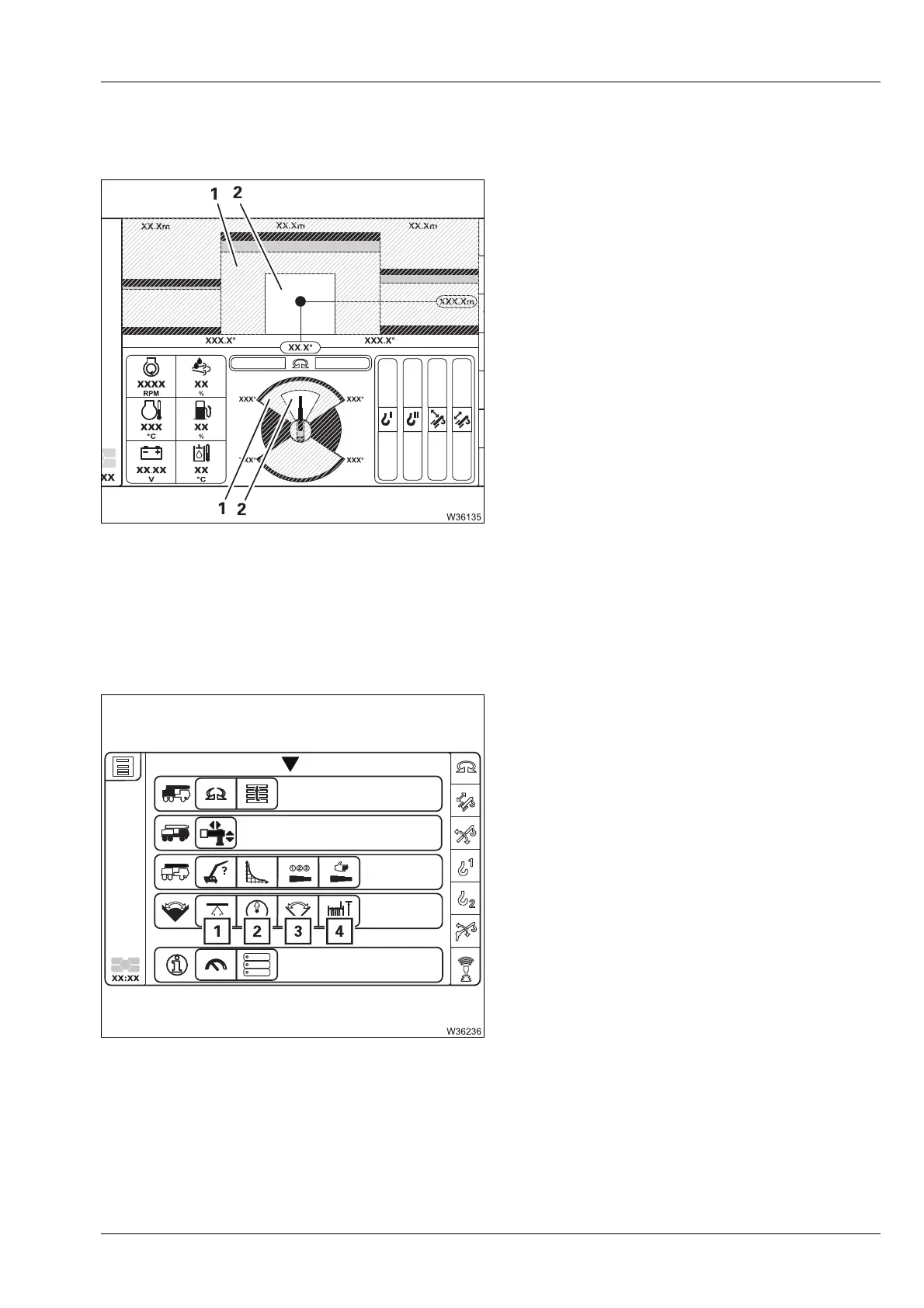

Display examples for switched-on
Slewing
angle
and Working radius monitoring systems.
11.7.2 Opening the working range limiter menu
•
If necessary, open the overview of the menu
groups and select the corresponding sym-
bol (1) to (4).
The corresponding menu will open, and you
can enter limit values and switch the monitor-
ing on and off.
1 Permissible working range according to
the
Lifting capacity table – shown darkened
2 Limited working range – shown lightened
1 For the overall height; Ã p. 11 - 136
2 For the working radius;
à p. 11 - 138
3 For the slewing range;
à p. 11 - 140.
4 For the hoist rope;
à p. 11 - 143.
