Manitowoc GROVE GMK4090 User Manual

Crane operation

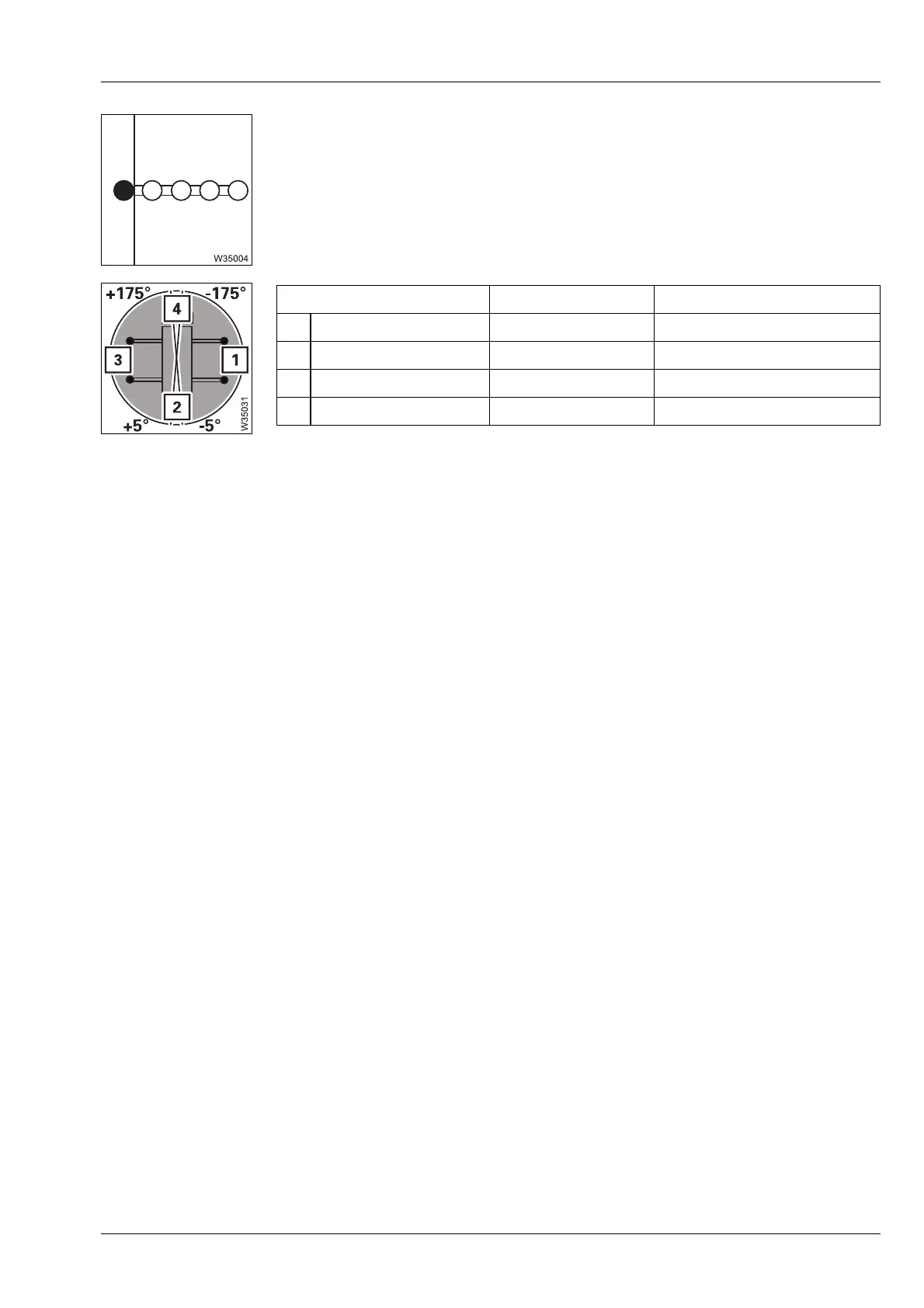

11.3 MAXbase slewing range type
Operating manual 3 302 736 en 11 - 25
GMK4090
xx.xx.xxxx
Smallest individual width 1.170 m (3.8 ft)
This case applies when one outrigger beam is extended to a span of
1.170 m (3.8 ft) and all other outrigger beams are extended to larger spans.
Positional reference Angular range Enabled slewing range
1 To the right ±85° -175° to -5°
2 Backwards ±5° -5° to +5°
3 To the left ±85° +5° to +175°
4 Forwards ±5° +175° to -175°
