Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 736 en 12 - 105
GMK4090
xx.xx.xxxx
12.9.9 Counterweight hoist unit

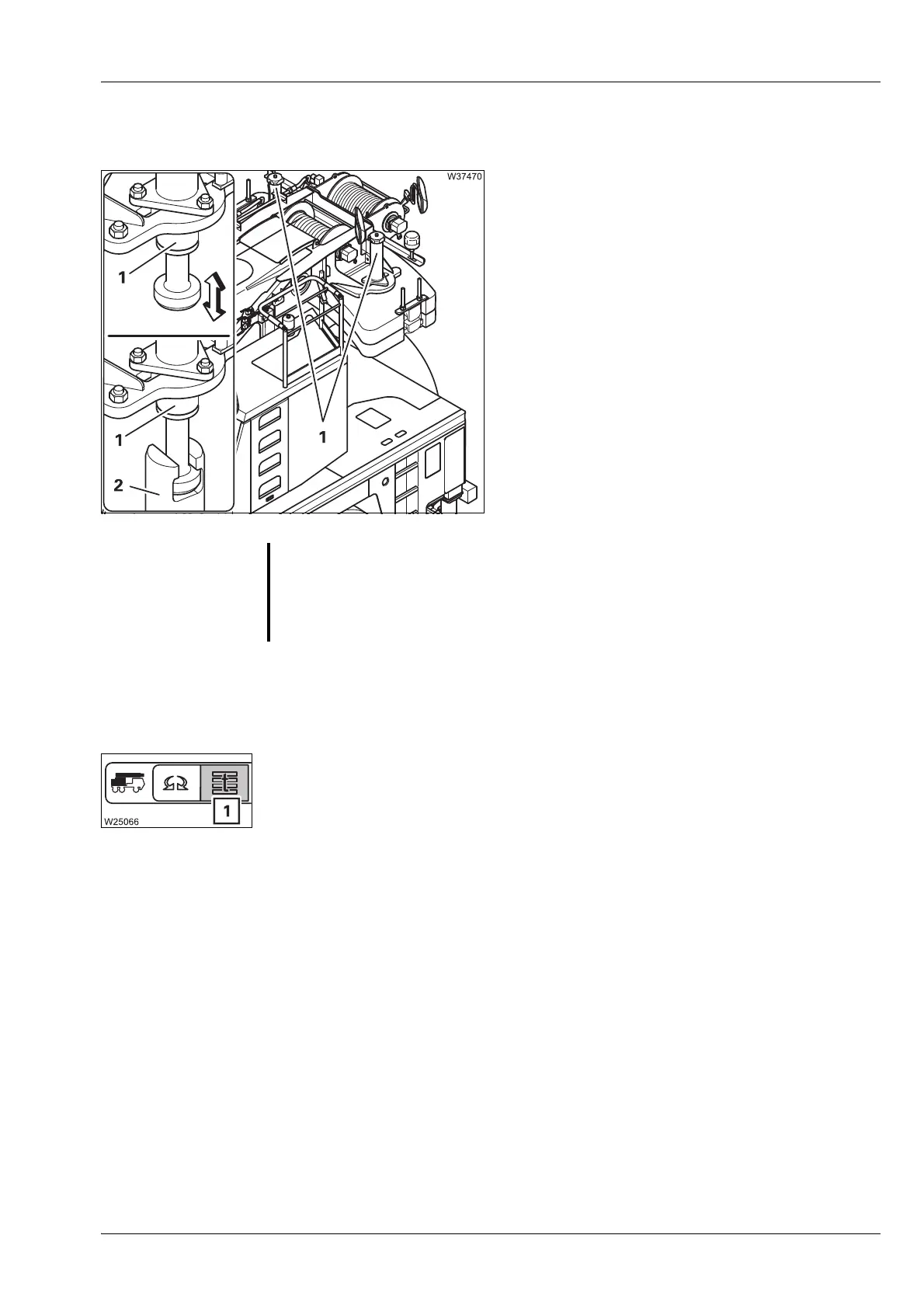

The lifting cylinders (1) can be extended and
retracted.
To lift and lower the counterweight, the lifting
cylinders are screwed into the 1.1 t base
plate (2).
Counterweight
menu
To operate the counterweight hoist unit, you must open the
Counterweight
menu.
Open menu
• Open the Counterweight menu (1).
s
G
Risk of crushing when lifting and lowering the counterweight
Make sure nobody is on the counterweight platform while the counter-
weight is being lifted or lowered.
