Rigging work
12.9 Rigging/unrigging the counterweight
12 - 106 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

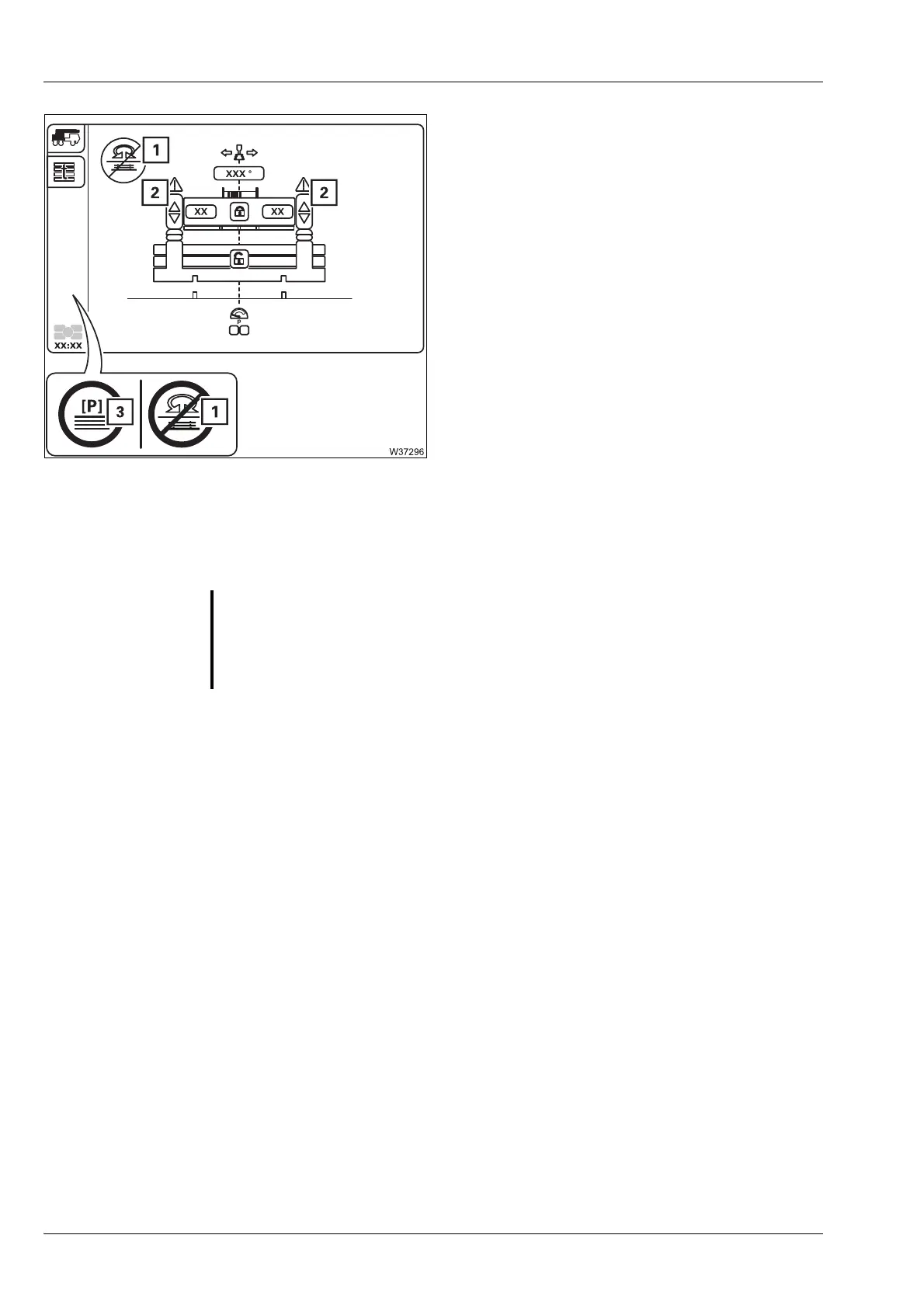

The Counterweight menu opens.
Errors and warning messages can be shown
for operation.
Extending/retract-
ing the lifting cyl-
inders
This section describes how to operate the lifting cylinders manually,
– for correcting the displayed rigging mode and
– for pre-charging the counterweight afterwards.
H
Always lift and lower the counterweight in automatic mode, otherwise slew-
ing with extended lifting cylinders will be blocked:
à Automatic mode rigging, p. 12 - 108,
à Automatic mode unrigging, p. 12 - 110.
1 Slewing blocked – pre-clamp the counter-
weight;
à p. 12 - 108.
2 Contact
Manitowoc Crane Care.
3 If the pre-tensioning pressure continues to
drop, the message (1).
S
Risk of damage to the counterweight
With the override switch actuated, the functions are always enabled.
Slew the superstructure only when the lifting cylinders are fully retracted.
