Operating elements for crane operation
9.2 Short description of the operating elements
9 - 108 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

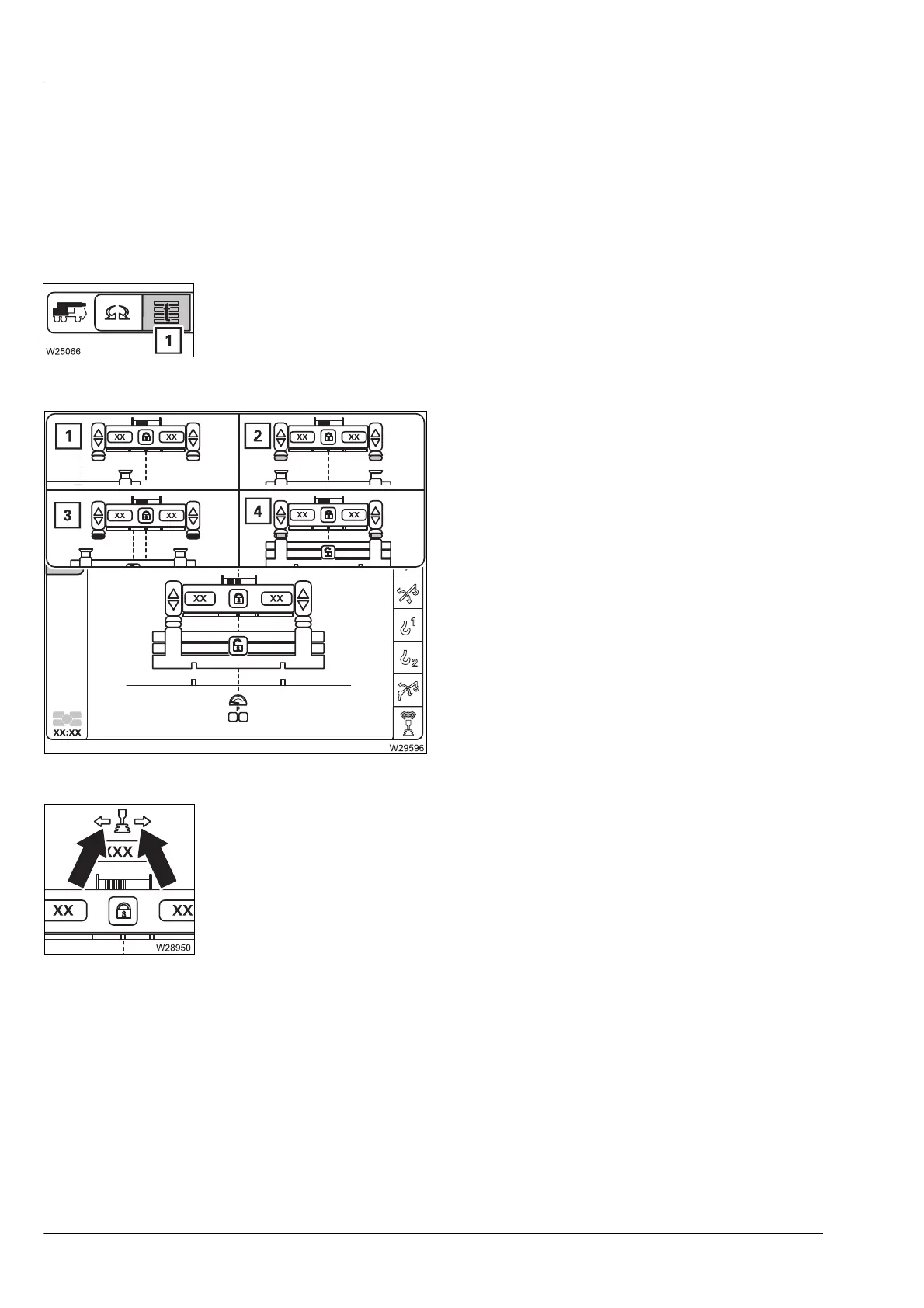

9.2.13 Counterweight menu
Counterweight
submenu
à Rigging/unrigging the counterweight, p. 12 - 71,
à Counterweight hoist unit, p. 12 - 105.
Rigging position display
In the rigging range, the following rigging
positions are displayed.
à p. 12 - 107
Display of slewing direction for automatic mode
Automatic mode is switched on.
– Opening: Select and confirm symbol (1)
1 White – not in the rigging range
2 Green – move the lifting cylinder position
3 Red – intermediate position, lifting
cylinder movements blocked
4 Green – lift/lower the counterweight
position (0° position)
– Arrow is
displayed:
Move control lever for slewing gear in direction of
arrow – automatic mode is executed
