12.10 Rigging work on the main boom
12 - 124 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
12.10.4 Hook block with ballast plates

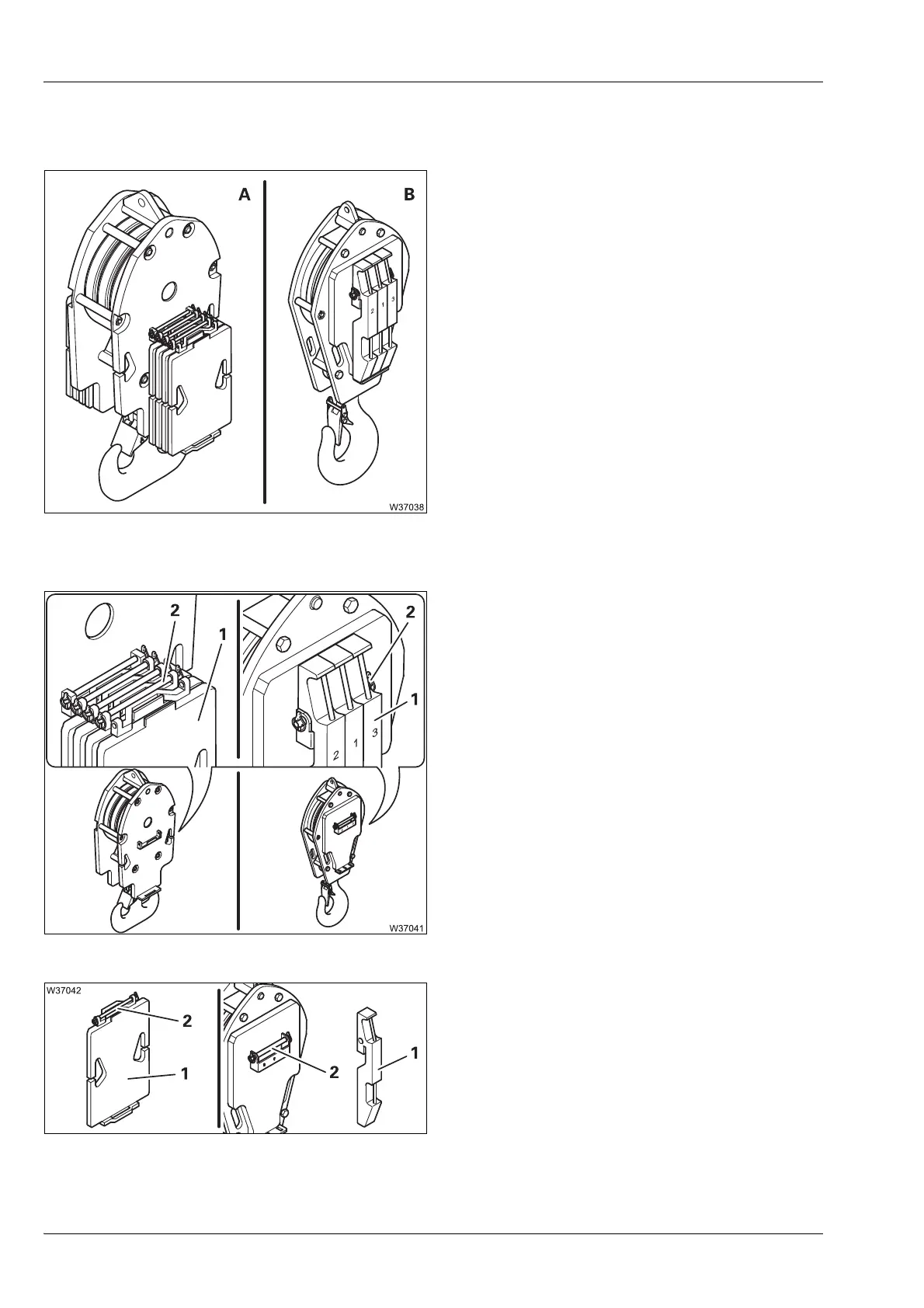

There are 1 and 3-sheave hook blocks for both
versions A and B.
By removing and installing ballast plates, you
can adapt the hook block weight to the weight
required according to the
Lifting capacity table.
à Versions with ballast plate – Version A,
p. 1 - 13
à Versions with ballast plate – Version A,
p. 1 - 13
Removing
• Remove the securing plugs and pull out the
pins (2).
• Remove the ballast plates (1).
In this way, remove the ballast plates alter-
nately from both sides.
If all ballast plates have not been removed,
make sure that the number of remaining bal-
last plates are equal on both sides.
• Stow away the ballast plates (1) and the fas-
tening elements (2) safely.
