Operating elements for crane operation
9.2 Short description of the operating elements
9 - 106 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

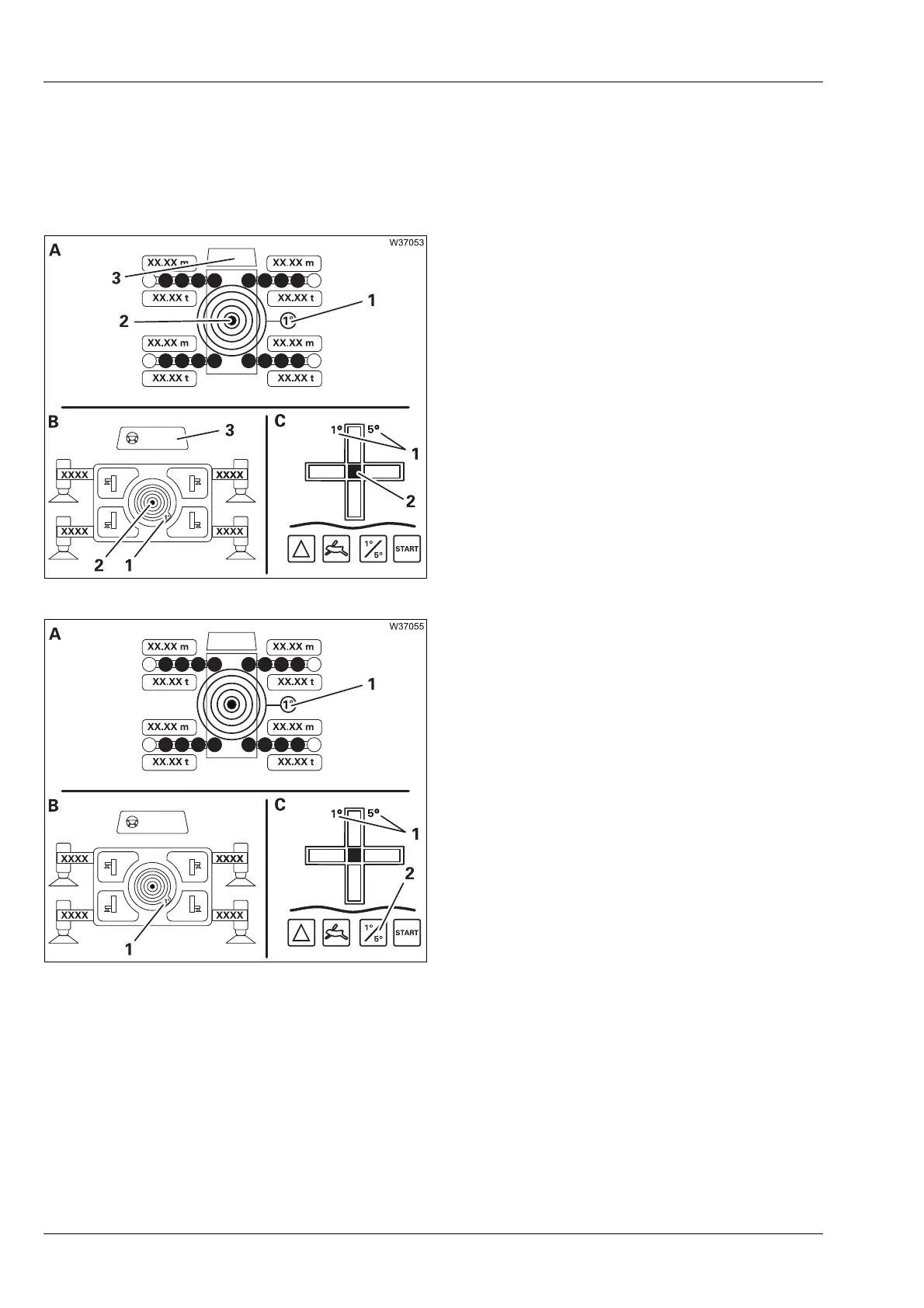

9.2.10 Inclination indicators
à Inclination indicators, p. 12 - 60
Display of current inclination
Switching over the measuring range
A In the
Monitoring menu
B In the
Outrigger menu
C On the
Outrigger control units
1 Measuring range display
2 Inclination indicator
3 Directional indicator
A In the Monitoring menu
B In the
Outrigger menu
Changeover is automatic – the current
measurement range (1) is displayed, 1° or 5°
C On the
Outrigger control units
Press 1 x button (2) – the current
measurement range (1) is displayed, 1° or 5°
